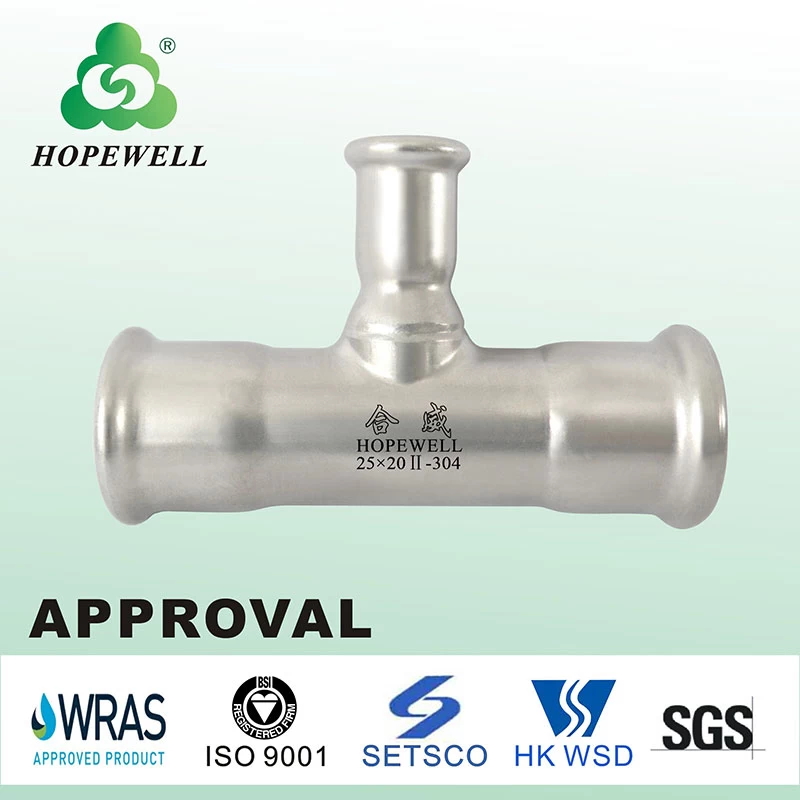

Plumbing inox 304 stainless steel reducing tee
|
Item
name
|
Item No.
|
Size (DN/mm)
|
Out dia (mm)
|
|
Reducing tee
|
HW11121
|
DN20×15
|
22.2
x 15.9
|
|
Reducing tee
|
HW11122
|
DN25×15
|
28.6
x 15.9
|
|
Reducing tee
|
HW11123
|
DN25×20
|
28.6
x 22.2
|
|
Reducing tee
|
HW11124
|
DN32×15
|
34
x 15.9
|
|
Reducing tee
|
HW11125
|
DN32×20
|
34
x 22.2
|
|
Reducing tee
|
HW11126
|
DN32×25
|
34
x 28.6
|
|
Reducing tee
|
HW11127
|
DN40×15
|
42.7
x 15.9
|
|
Reducing tee
|
HW11128
|
DN40×20
|
42.7
x 22.2
|
|
Reducing tee
|
HW11129
|
DN40×25
|
42.7
x 28.6
|
|
Reducing tee
|
HW11130
|
DN40×32
|
42.7
x 34
|
|
Reducing tee
|
HW11131
|
DN50×15
|
48.6
x 15.9
|
|
Reducing tee
|
HW11132
|
DN50×20
|
48.6
x 22.2
|
|
Reducing tee
|
HW11133
|
DN50×25
|
48.6
x 28.6
|
|
Reducing tee
|
HW11134
|
DN50×32
|
48.6
x 34
|
|
Reducing tee
|
HW11135
|
DN50×40
|
48.6
x 42.7
|
|
Reducing tee
|
HW11136
|
DN65×20
|
76.1
x 22.2
|
|
Reducing tee
|
HW11137
|
DN65×25
|
76.1
x 28.6
|
|
Reducing tee
|
HW11138
|
DN65×32
|
76.1
x 34
|
|
Reducing tee
|
HW11139
|
DN65×40
|
76.1
x 42.7
|
|
Reducing tee
|
HW11140
|
DN65×50
|
76.1
x 48.6
|
|
Reducing tee
|
HW11141
|
DN80×20
|
88.9
x 22.2
|
|
Reducing tee
|
HW11142
|
DN80×25
|
88.9
x 28.6
|
|
Reducing tee
|
HW11143
|
DN80×32
|
88.9
x 34
|
|
Reducing tee
|
HW11144
|
DN80×40
|
88.9
x 42.7
|
|
Reducing tee
|
HW11145
|
DN80×50
|
88.9
x 48.6
|
|
Reducing tee
|
HW11146
|
DN80×65
|
88.9
x 76.1
|
|
Reducing tee
|
HW11147
|
DN100×20
|
108
x 22.2
|
|
Reducing tee
|
HW11148
|
DN100×25
|
108
x 28.6
|
|
Reducing tee
|
HW11149
|
DN100×32
|
108
x 34
|
|
Reducing tee
|
HW11150
|
DN100×40
|
108
x 42.7
|
|
Reducing tee
|
HW11151
|
DN100×50
|
108
x 48.6
|
|
Reducing tee
|
HW11152
|
DN100×65
|
108
x 76.1
|
|
Reducing tee
|
HW11153
|
DN100×80
|
108
x 88.9
|
Hopewell produce 304 316 plumbing reducing tee, very good quality stainless steel reducing tee
Standard:
reducing tee standard: GB/T 19228.1-2003 (including EN10312 standard and GB Ⅱ standard);
Pipe standard: GB/T 19228.2-2003
Sealing ring standard: GBT 19228.3-2003
Material for Plumbing inox 304 stainless steel reducing tee:
Stainless steel 304 and 316 available.
Sealing ring material: EPDM
Product range:
Coupling -- Stainless steel equal pipe coupling, Reducer-A, Reducer-B, Adjustable coupling, Female coupling, Rotatable coupling, Male coupling;
Elbow -- equal elbow, plain elbow, reducing elbow, Female elbow, Based female elbow, Short female elbow, Male elbow;
Tee -- equal tee, reducing tee, Female tee, Male tee;
Pipe cap, pipe bridge and Flange.
Stainless steel pipe
Sizes range for Plumbing inox 304 stainless steel reducing tee:
The norminal diameter are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including EN10312 standard and GB Ⅱ standard.
EN10312 standard out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB Ⅱ standard out diameters are: 15.9, 22.2, 28.6, 34, 42.7, 48.6, 76.1, 88.9, 108mm.
