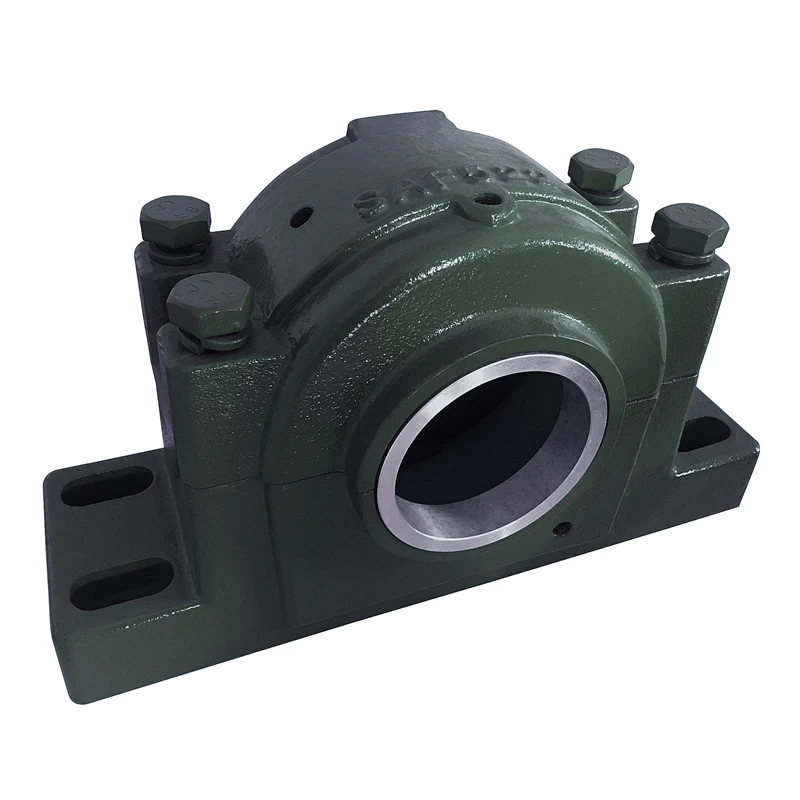

Plummer Block Bearing SAF511

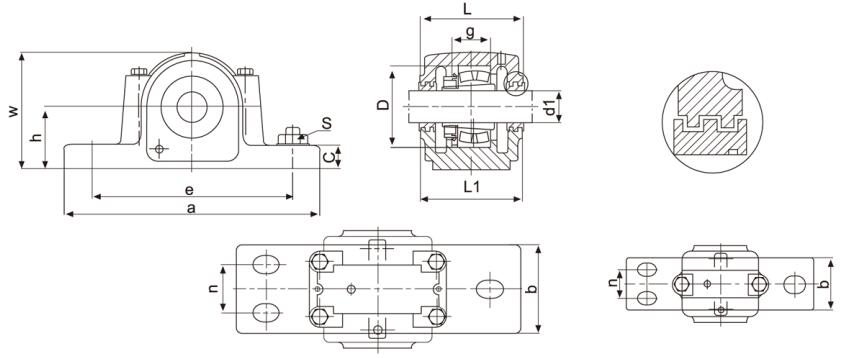

Housing No. Shaft dia. Dimensions (mm) Housing Wt Kg Bearing No Adapter Sleeve Locating Ring
D
H8
g
H12
h
H12
W L L1 a b C
e
max
e
min
n S    
(2) (4) Number QTY
SAF505 3/4 52 25 38.1 75 70 73 165 45 18 139.7 118   M12   1.8 1205K  HA205  FR52x5  2
SAF505 3/4 52 25 38.1 75 70 73 165 45 18 139.7 118   M12   1.8 2205K HA305 FR52x7 1
SAF506 15/16 62 30 44.5 86 78 83 191 51 18 155 133   M12   2.2 1206K  HA206  FR62X7  2
SAF506 15/16 62 30 44.5 86 78 83 191 51 18 155 133   M12   2.2 2206K HA306 FR62x10 1
SAF507 1-3/16 72 33 50.8 97 81 83 191 51 21 156 143   M12   2.7 1207K  HA207  FR72x8  2
SAF507 1-3/16 72 33 50.8 97 81 83 191 51 21 156 143   M12   2.7 2207K HA307 FR72x10 1
SAF509 1-7/16 85 31 57.2 111 87 92 210 61 21 178 159   M12   3.9 1209K  HA209  FR85x6  2
SAF509 1-7/16 85 31 57.2 111 87 92 210 61 21 178 159   M12   3.9 2209K  HA309  FR85x8  1
SAF509 1-7/16 85 31 57.2 111 87 92 210 61 21 178 159   M12   3.9 22209K HA309 FR85x8 1
SAF510 1-11/16 90 33 63.5 121 87 99 210 61 24 178 165   M12   4.3 1210K  HA210  FR90X6.5  2
SAF510 1-11/16 90 33 63.5 121 87 99 210 61 24 178 165   M12   4.3 2210K  HA310  FR90X10  1
SAF510 1-11/16 90 33 63.5 121 87 99 210 61 24 178 165   M12   4.3 22210K HA310 FR90x10 1
SAF511 1-15/16 100 33 69.9 133 95 114 245 70 24 200 188   M16   5 1211K  HA210  FR100x6  2
SAF511 1-15/16 100 33 69.9 133 95 114 245 70 24 200 188   M16   5 2211K  HA310  FR100x8  1
SAF511 1-15/16 100 33 69.9 133 95 114 245 70 24 200 188   M16   5 22211K HA311 FR100x8 1
SAF513  2-3/16  120 41 76.2 151 108 114 279 80 25 241 206 50.8 M16 M12 7.7 1213K  HA213  FR120x9  2
SAF513  2-3/16 120 41 76.2 151 108 114 279 80 25 241 206 50.8 M16 M12 7.7 2213K  HA313  FR120x10  1
SAF513  2-3/16 120 41 76.2 151 108 114 279 80 25 241 206 50.8 M16 M12 7.7 22213K HA313 FR120x10 1
FSAF513 2-3/16 120 41 76.2 151 108 114 279 80 25 241 206 50.8 M16 M12 7.7 1213K  HA213  FR120x9  2
FSAF513 2-3/16 120 41 76.2 151 108 114 279 80 25 241 206 50.8 M16 M12 7.7 2213K  HA313  FR120x10  1
FSAF513 2-3/16 120 41 76.2 151 108 114 279 80 25 241 206 50.8 M16 M12 7.7 22213K HA313 FR120x10 1
SAF515  2-7/16  130 41 82.6 162 118 121 286 80 29 245 219 47.7 M16 M12 8.7 1215K  HA215  FR130X8  2
SAF515  2-7/16  130 41 82.6 162 118 121 286 80 29 245 219 47.7 M16 M12 8.7 2215K  HA315  FR130x10  1
SAF515  2-7/16  130 41 82.6 162 118 121 286 80 29 245 219 47.7 M16 M12 8.7 22215K HA315 FR130x10 1
FSAF515 2-7/16 130 41 82.6 162 118 121 286 80 29 245 219 47.7 M16 M12 8.7 1215K  HA215  FR130X8  2
FSAF515 2-7/16 130 41 82.6 162 118 121 286 80 29 245 219 47.7 M16 M12 8.7 2215K  HA315  FR130x10  1
FSAF515 2-7/16 130 41 82.6 162 118 121 286 80 29 245 219 47.7 M16 M12 8.7 22215K HA315 FR130x10 1
SAF516  2-11/16  140 43 88.9 175 121 124 330 89 30 279 245 54.1 M20 M16 11.6 1216K  HA216  FR140X8.5  2
SAF516  2-11/16  140 43 88.9 175 121 124 330 89 30 279 245 54.1 M20 M16 11.6 2216K  HA316  FR140x10  1
SAF516  2-11/16  140 43 88.9 175 121 124 330 89 30 279 245 54.1 M20 M16 11.6 22216K HA316 FR140x10 1
FSAF516 2-11/16 140 43 88.9 175 121 124 330 89 30 279 245 54.1 M20 M16 11.6 1216K  HA216  FR140X8.5  2
FSAF516 2-11/16 140 43 88.9 175 121 124 330 89 30 279 245 54.1 M20 M16 11.6 2216K  HA316  FR140x10  1
FSAF516 2-11/16 140 43 88.9 175 121 124 330 89 30 279 245 54.1 M20 M16 11.6 22216K HA316 FR140x10 1
SAF517  2-15/16  150 46 95.3 186 122 127 330 89 32 279 251 54.1 M20 M16 12.3 1217K  HA217  FR150x9  2
SAF517  2-15/16  150 46 95.3 186 122 127 330 89 32 279 251 54.1 M20 M16 12.3 2217K  HA317  FR150x10  1
SAF517  2-15/16  150 46 95.3 186 122 127 330 89 32 279 251 54.1 M20 M16 12.3 22217K HA317 FR150x10 1
FSAF517 2-15/16 150 46 95.3 186 122 127 330 89 32 279 251 54.1 M20 M16 12.3 1217K  HA217  FR150x9  2
FSAF517 2-15/16 150 46 95.3 186 122 127 330 89 32 279 251 54.1 M20 M16 12.3 2217K  HA317  FR150x10  1
FSAF517 2-15/16 150 46 95.3 186 122 127 330 89 32 279 251 54.1 M20 M16 12.3 22217K HA317 FR150x10 1
SAF518  3-3/16 160 50 101.6 197 140 146 349 99 33 295 264 54.1 M20 M16 15.4 1218K  HA218  FR160X10  2
SAF518  3-3/16 160 50 101.6 197 140 146 349 99 33 295 264 54.1 M20 M16 15.4 2218K  HA318  FR160x10  1
SAF518  3-3/16 160 50 101.6 197 140 146 349 99 33 295 264 54.1 M20 M16 15.4 22218K HA318 FR160X10 1
FSAF518 3-3/16 160 50 101.6 197 140 146 349 99 33 295 264 54.1 M20 M16 15.4 1218K  HA218  FR160X10  2
FSAF518 3-3/16 160 50 101.6 197 140 146 349 99 33 295 264 54.1 M20 M16 15.4 2218K  HA318  FR160x10  1
FSAF518 3-3/16 160 50 101.6 197 140 146 349 99 33 295 264 54.1 M20 M16 15.4 22218K HA318 FR160X10 1
SAF520  3-7/16  180 58 114.3 222 148 152 387 111 45 333 295 60.5 M24 M20 27.3 1220K  HA220  FR180x11  2
SAF520  3-7/16  180 58 114.3 222 148 152 387 111 45 333 295 60.5 M24 M20 27.3 2220K  HA320  FR180x10  1
SAF520  3-7/16  180 58 114.3 222 148 152 387 111 45 333 295 60.5 M24 M20 27.3 22220K HA320 FR180x10 1
FSAF520 3-7/16  180 58 114.3 222 148 152 387 111 45 333 295 60.5 M24 M20 27.3 1220K  HA220  FR180x11  2
FSAF520 3-7/16  180 58 114.3 222 148 152 387 111 45 333 295 60.5 M24 M20 27.3 2220K  HA320  FR180x10  1
FSAF520 3-7/16  180 58 114.3 222 148 152 387 111 45 333 295 60.5 M24 M20 27.3 22220K HA320 FR180x10 1
SAF522 3-15/16 200 63 125.4 245 164 165 419 121 51 368 321 69.9   M20 35 1222K  HA222  FR200X12.5  2
SAF522 3-15/16 200 63 125.4 245 164 165 419 121 51 368 321 69.9   M20 35 2222K  HA322  FR200x10  1
SAF522 3-15/16 200 63 125.4 245 164 165 419 121 51 368 321 69.9   M20 35 22222K HA322 FR200x10 1
SAF524 4-3/16 215 68 133.4 260 181 188 419 121 54 368 337 69.9   M20 43.2 22224K HA3124 FR215x10 1
SAF526 4-7/16 230 74 152.4 292 197 203 467 130 61 406 372 82.6   M24 58.6 22226K HA3126 FR230x10 1
SAF528 4-15/16 250 78 152 4 298 187 194 511 149 61 435 406 85.9   M24 62 22228K HA3128 FR250X10 1
SAF530 5-3/16 270 83 160 4 318 207 213 540 159 64 464 432 95.3   M24 76.8 22230K HA3130 FR270x10 1
SAF532 5-7/16 290 90 169 9 338 216 222 559 159 67 489 442 95.3   M24 81.3 22232K HA3132 FR290x10 1
SAF534 5-15/16 310 96 179 4 360 235 245 629 172 70 549 492 108   M24 104.5 22234K HA3134 FR310X10 1
SAF536 6-7/16 320 96 190 5 378 245 254 680 181 76 600 530 117.6   M24 117.6 22236K HA3136 FR320x10 1
SAF538 6-15/16 340 102 200 398 267 273 711 191 80 619 549 114.3   M30 135 22238K HA3138 FR340x10 1
SAF540 7-3/16 360 108 209.6 419 279 286 749 203 86 635 572 127   M30 167.5 22240K HA3140 FR360x10 1
SAF544 7-15/16 400 118 241.3 473 298 305 832 222 95 708 629 133.4   M30 230.2 _22244K HA3144 FR400X10 1
