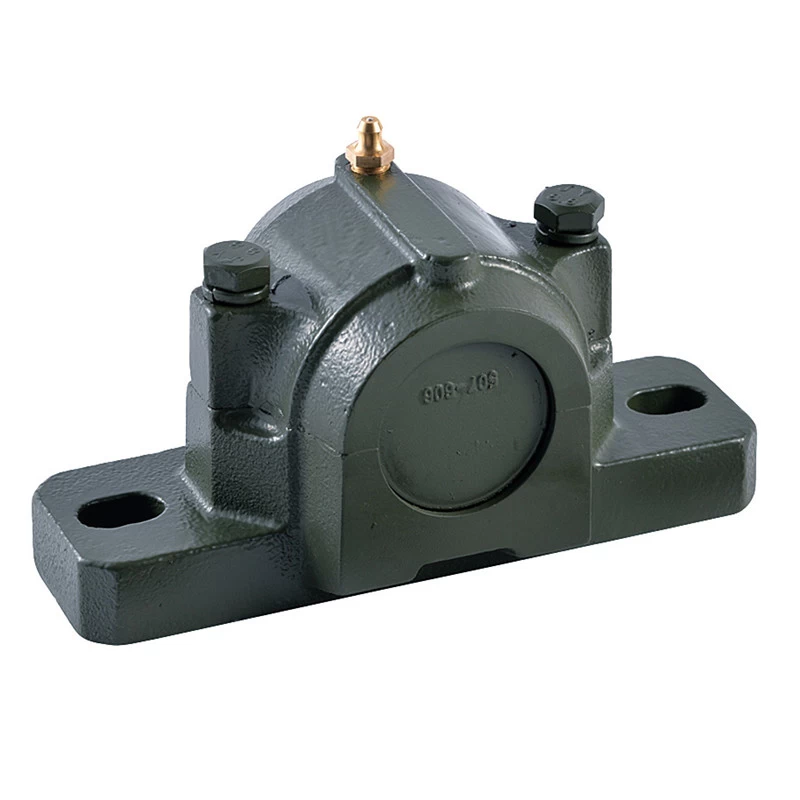

Plummer Block Bearing SNG510

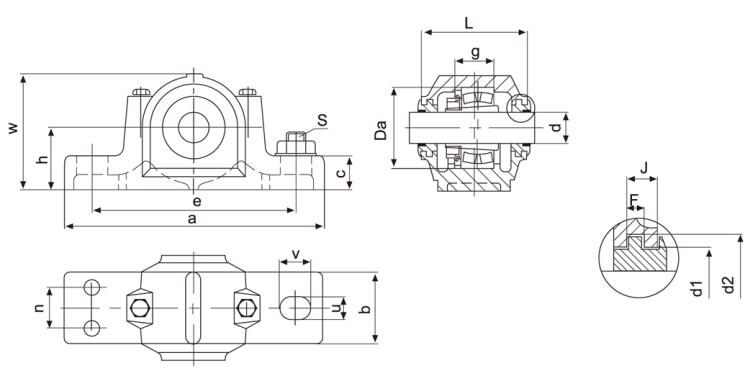

Housing No. Shaft dia. Dimensions (mm) Housing Wt Kg Bearing No Adapter Sleeve Locating Ring
H H12 a e b U V C W L d1 H12 d2 H12 n J F g H12 Da H8 S
(2) (4) Number QTY
SNG507-606 30 50 185 150 52 13 20 22 92 82 46.5 54.5   7.5 5 34 72 M10   2.6 1207K  H207  SR72X8.5  2
SNG507-606 30 50 185 150 52 13 20 22 92 82 46.5 54.5   7.5 5 34 72 M10   2.6 22207K H307 SR72X5.5 2
SNG508-607 35 60 205 170 60 15 20 25 106 85 51.5 59.5   7.5 5 39 80 M12   3.2 1208K  H208  SR80X10.5 2
SNG508-607 35 60 205 170 60 15 20 25 106 85 51.5 59.5   7.5 5 39 80 M12   3.2 22208K H308 SR80X8 2
SNG509 40 60 205 170 60 15 20 25 109 85 56.9 64.9   8.5 5 30 85 M12   3.6 1209K  H209  SR85X5.5  2
SNG509 40 60 205 170 60 15 20 25 109 85 56.9 64.9   8.5 5 30 85 M12   3.6 22209K H309 SR85X7 1
SNG510-608 45 60 205 170 60 15 20 25 112 90 62 70.5   8.5 5 41 90 M12   3.9 1210K  H210  SR90X10.5 2
SNG510-608 45 60 205 170 60 15 20 25 112 90 62 70.5   8.5 5 41 90 M12   3.9 22210K H310 SR90X9 2
SNG511-609 50 70 255 210 70 18 23 28 127 95 67 75.5 35 8.5 5 44 100 M16   5.2 1211K  H211  SR100X11.5  2
SNG511-609 50 70 255 210 70 18 23 28 127 95 67 75.5 35 8.5 5 44 100 M16   5.2 22211K H311 SR100X9.5 2
SNG512-610 55 70 255 210 70 18 23 30 133 105 72 80.5 35 8.5 5 48 110 M16 M12 6.7 1212K  H212  SR110X13 2
SNG512-610 55 70 255 210 70 18 23 30 133 105 72 80.5 35 8.5 5 48 110 M16 M12 6.7 22212K H312 SR110X10 2
SNG513-611 60 80 275 230 80 18 24 30 148 110 77 85.5 35 8.5 5 51 120 M16 M12 7.9 1213K  H213  SR120X14  2
SNG513-611 60 80 275 230 80 18 24 30 148 110 77 85.5 35 8.5 5 51 120 M16 M12 7.9 22213K H313 SR120X10 2
SNG515-612 65 80 280 230 80 18 26 32 154 115 87 95.5 40 8.5 5 56 130 M16 M12 8.6 1215K  H215  SR130X15.5 2
SNG515-612 65 80 280 230 80 18 26 32 154 115 87 95.5 40 8.5 5 56 130 M16 M12 8.6 22215K H315 SR130X12.5 2
SNG516-613 70 95 315 260 90 22 29 32 175 120 92.5 101 40 10.5 5 58 140 M20 M12 11.0 1216K  H216  SR140X16  2
SNG516-613 70 95 315 260 90 22 29 32 175 120 92.5 101 40 10.5 5 58 140 M20 M12 11.0 22216K H316 SR140X12.5 2
SNG517 75 95 320 260 90 22 30 35 181 125 97.5 106 50 10.5 5 61 150 M20 M12 12 1217K  H217  SR150X16.5 2
SNG517 75 95 320 260 90 22 30 35 181 125 97.5 106 50 10.5 5 61 150 M20 M12 12 22217K H317 SR150X12.5 2
SNG518-615 80 100 345 290 100 22 27 35 192 140 102.5 111 50 10.5 5 65 160 M20 M16 15 1218K  H218  SR160X17.5  2
SNG518-615 80 100 345 290 100 22 27 35 192 140 102.5 111 50 10.5 5 65 160 M20 M16 15 22218K  H318  SR160X12.5  2
SNG518-615 80 100 345 290 100 22 27 35 192 140 102.5 111 50 10.5 5 65 160 M20 M16 15 23218K H2318 SR160X12.5 1
SNG519-616 85 112 345 290 100 22 27 40 209 145 131 141 50 11.5 6 68 170 M20 M16 16 1219K  H219  SR170X18 2
SNG519-616 85 112 345 290 100 22 27 40 209 145 131 141 50 11.5 6 68 170 M20 M16 16 22219K H319 SR170X12.5 2
SNG520-617 90 112 380 320 110 26 32 45 215 160 137.5 147.5 60 11.5 6 70 180 M24 M16 18 1220K  H220  SR180x18  2
SNG520-617 90 112 380 320 110 26 32 45 215 160 137.5 147.5 60 11.5 6 70 180 M24 M16 18 22220K  H320  SR180X12  2
SNG520-617 90 112 380 320 110 26 32 45 215 160 137.5 147.5 60 11.5 6 70 180 M24 M16 18 23220K H2320 SR180X9.7 1
SNG522-619 100 125 410 350 120 26 32 45 239 175 147.5 157.5 70 11.5 6 80 200 M24 M16 28 1222K  H222  SR200X21 2
SNG522-619 100 125 410 350 120 26 32 45 239 175 147.5 157.5 70 11.5 6 80 200 M24 M16 28 22222K  H322  SR200X13.5 2
SNG522-619 100 125 410 350 120 26 32 45 239 175 147.5 157.5 70 11.5 6 80 200 M24 M16 28 23222K H2322 SR200X10.2 1
SNG524-620 110 140 410 350 120 26 32 45 271 185 157.5 167.5 70 11.5 6 86 215 M24 M16 36 22224K  H3124  SR215x14  2
SNG524-620 110 140 410 350 120 26 32 45 271 185 157.5 167.5 70 11.5 6 86 215 M24 M16 36 23224K H2324 SR215x10 1
SNG526 115 150 445 380 130 28 35 50 290 190 167.5 177.5 70 13 6 90 230 M24 M20 47 22226K  H3126  SR230X13 2
SNG526 115 150 445 380 130 28 35 50 290 190 167.5 177.5 70 13 6 90 230 M24 M20 47 23226K H2326 SR230X10 1
SNG528 125 150 500 420 150 35 42 50 302 205 177.5 187.5 80 13 6 98 250 M30 M24 49 22228K  H3128  SR250X15  2
SNG528 125 150 500 420 150 35 42 50 302 205 177.5 187.5 80 13 6 98 250 M30 M24 49 23228K H2328 SR250x10 1
SNG530 135 160 530 450 160 35 42 60 323 220 192.5 202.5 90 13.5 6 106 270 M30 M24 57 22230K  H3130  SR270X16.5 2
SNG530 135 160 530 450 160 35 42 60 323 220 192.5 202.5 90 13.5 6 106 270 M30 M24 57 23230K H2330 SR270X10 1
SNG532 140 170 550 470 160 35 42 60 344 235 202.5 212.5 90 13.5 6 114 290 M30 M24 64 22232K  H3132  SR290X17  2
SNG532 140 170 550 470 160 35 42 60 344 235 202.5 212.5 90 13.5 6 114 290 M30 M24 64 23232K H2332 SR290X10 1
