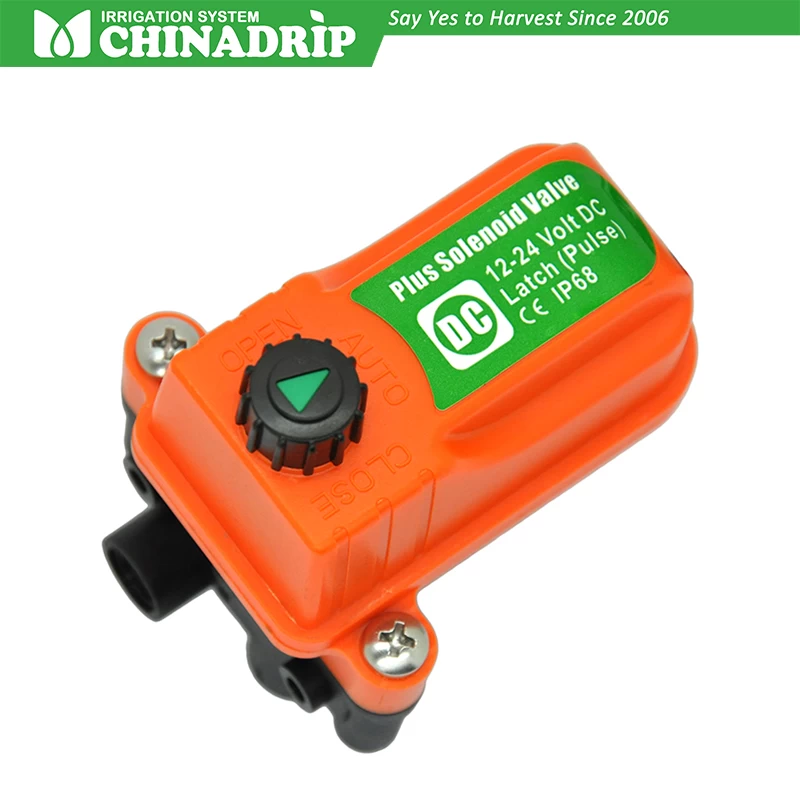

Plus Solenoid Valve with Stand, 12VDC Latching (Pulse)

Actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve.

Facebook Twitter Pinterest LinkedIn 分享

Advantage:

·This Solenoid can be fitted with the common controllers for automatic irrigation system.
·Actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic
    controlling valve.
·NC (Normally Closed) and NO (Normally Open) two modes available for selection.
·Designed with diaphragmin inside which makes controlling main part separate from water passageways for long service life.
·Width water passageways designed for short reaction of controlling valve and anti-clogging.
·Manual controlling knob for CLOSE-AUTO-OPEN operation.
·3-way hydraulic base can be fitting for the Hydraulic controlling with 3 position 2 way.

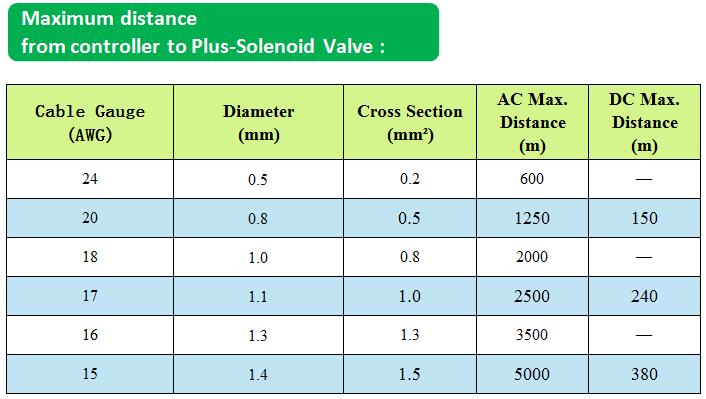

·Very low energy consumption for long distance control with long wire.

Technical Data:

·DC Latching version: Voltage 12-40V, Pulse width: 80-500ms
·Pressure range: 0-10bar (0-140 psi)
·Max. ambient temperature: 60℃ (140℉)
·Max. fluid temperature: 60℃ (140℉)
·Filtration: Min. 80 mesh
·Hydraulic ports connecting: 1/8" BSP
·With 100cm Wires
