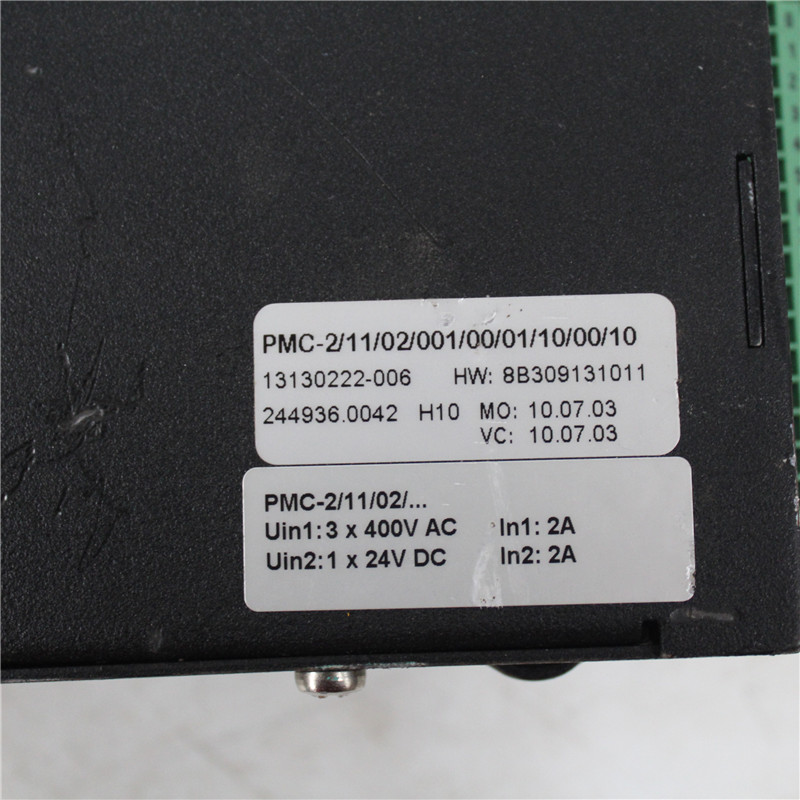

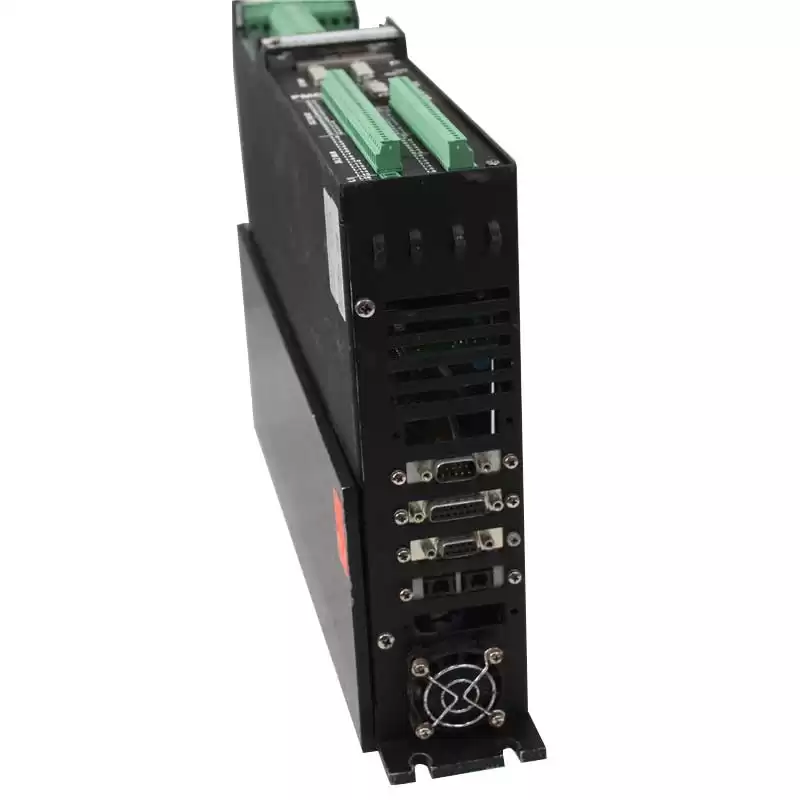

The PMC-2 positioning motor controller provides the following performance features:
· flexible positioning control and digital motor controller in one case
· direct electric mains with integrated mains filter (600 Volt technology)
· T1-operation according to VDI 2853
· dc-circuits of several PMC-2 are parallelly switchable (power compensation)
· completely digital concept
· multiple processor technology (32 bit processor plus VECON chips)
· one programming interface for POS and MC
· unit exchange without PC (Memory Module)
· highly dynamic brushless AC servo motors SB-056...205 in high-voltage technology with resolver or SINCOS encoder
· extensive cross linkage abilities
· own input and output level (digital and analog I/Os)
· independent operation
· modular extension possibilities via option modules
· connection of absolute or incremental encoders possible
· matured diagnosis
· simple and flexible programming language ECL-3 with multitasking functions
· system variable conception with deep system view until down to the motor current
· realization of positioning and/or synchro functions (electrical gear, disk cam function) with one software
· sampling rate position controller 0,33 ms
· CE in conformity
