Pneumatic Button Coin Cell Crimping Machine
SPECIFICATIONS
1. TOB-QD-150 coin cell crimper is a newly designed coin-cell
sealing machine with lighter weight.It’s mainly used for coin cell battery material lab researching,
Capacitor sealing
research,also be used in small batch trial production in factories.
equipped with different die,also used
for disassemble battery,press electrode sheet,press battery powder,etc.
2. The crimper is suitable for sealing various types of CR20XX coin cells

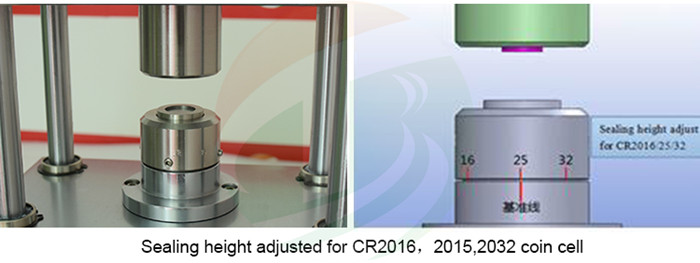

such as CR2032,CR2025,and CR2016 with adjust the sealing line and without
changing the die.It can also crimp CR16XX, CR24XX, CR30XX and other special
size cases with optional die sets.
3. In addition, customers can easily replace the original die for
disassembling purpose.
4. It can also be worked in glove box with
smaller volume.
|
Machine
Model
|
Pneumatic
Coin Cell Crimping Machine TOB-BQ-150
|
|
Gas
source
|
0.6 0. 8mpa
argon, nitrogen cylinders, or compressed air(Not suggest to use compressed
air in glove box)
|
|
Exhaust
design
|
Specially
designed exhaust port, can external via connected by kf40 and other devices
|
|
Gas
consumption
|
The gas
consumption of single seal is about 480 ml
|
|
Crimping
pressure
|
Manual control
valve, maximum pressure 1mpa.recommended pressure 0.7mpa.accuracy ±0.5%
|
|
Crimping
stroke
|
30mm
|
|
Crimping
die
|
Standard crimping
die is CR20xx, with optional
die sets
|
|
Disassembling
die
|
Optional or
added various specifications such as CR16, CR20, CR24,CR30, etc.
|
|
Machine
size
|
L290mm*W205mm*H330mm
|
|
N.W
|
25Kg
|
|
Structural
material
|
High strength chromium steel, the surface after environmental plating
and spray treatment will never rust.
|
|
Remark
|
With the function of preventing
short circuit of battery crimping
|

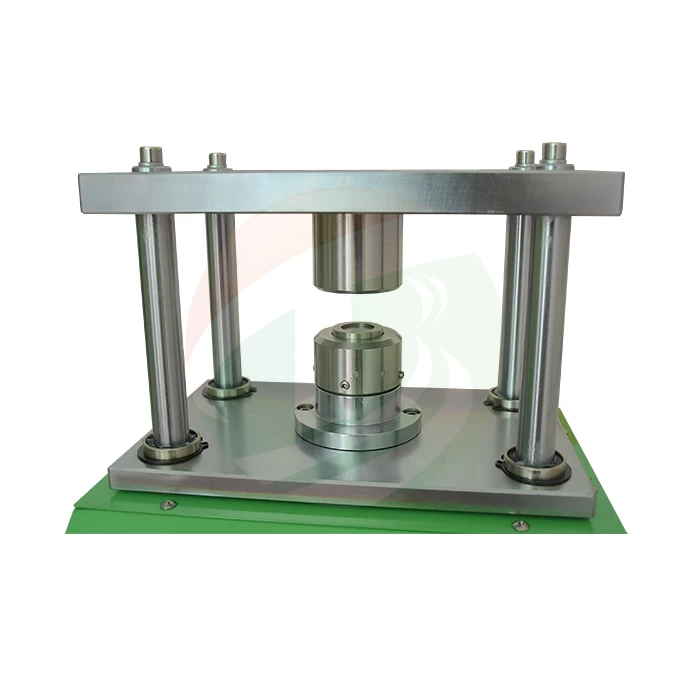

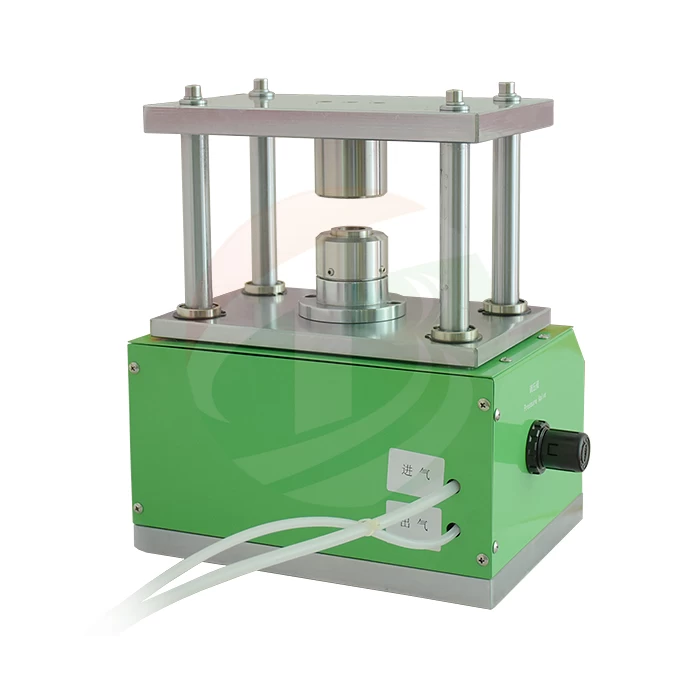

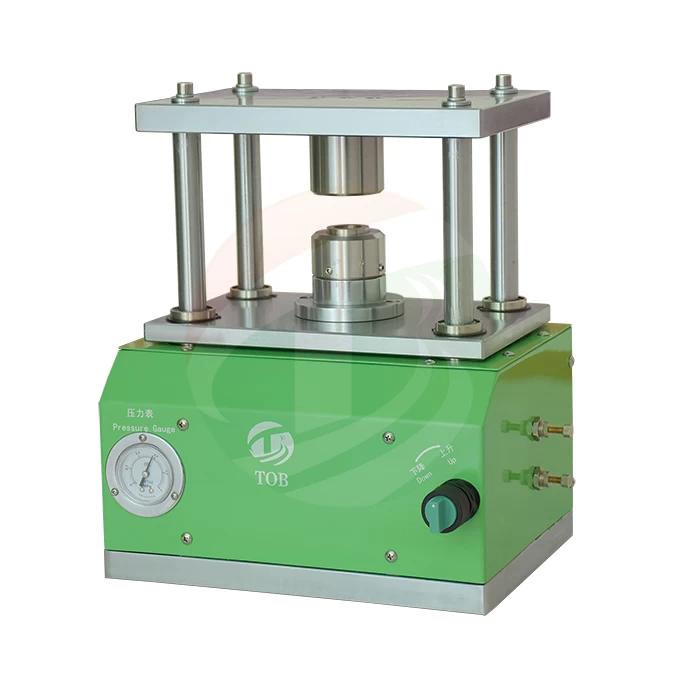

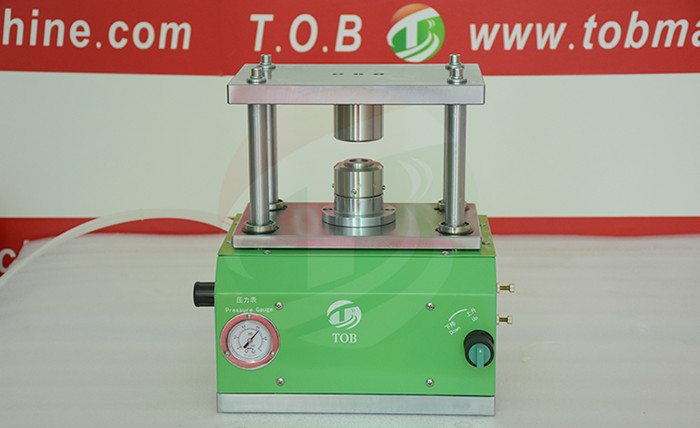

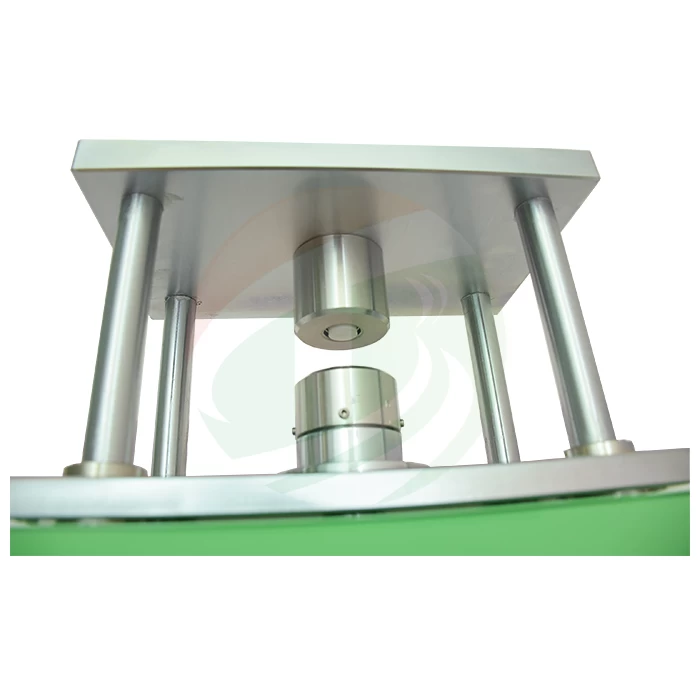

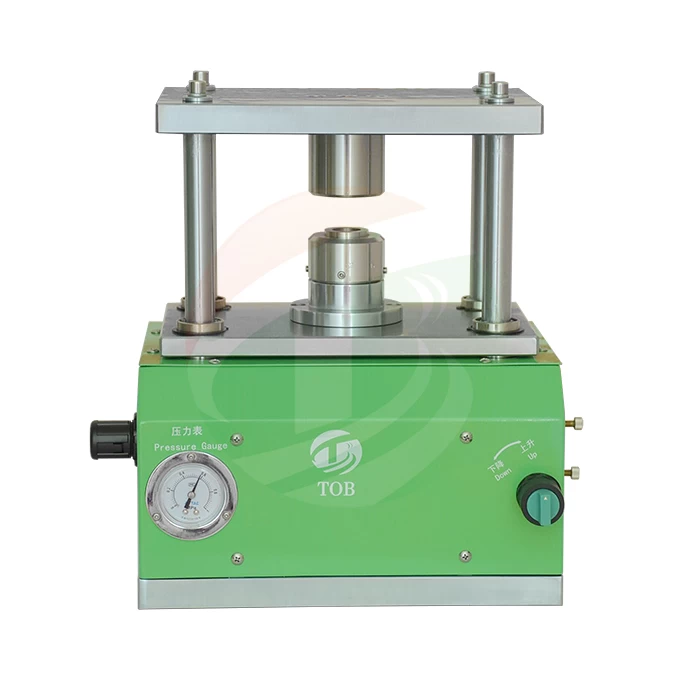

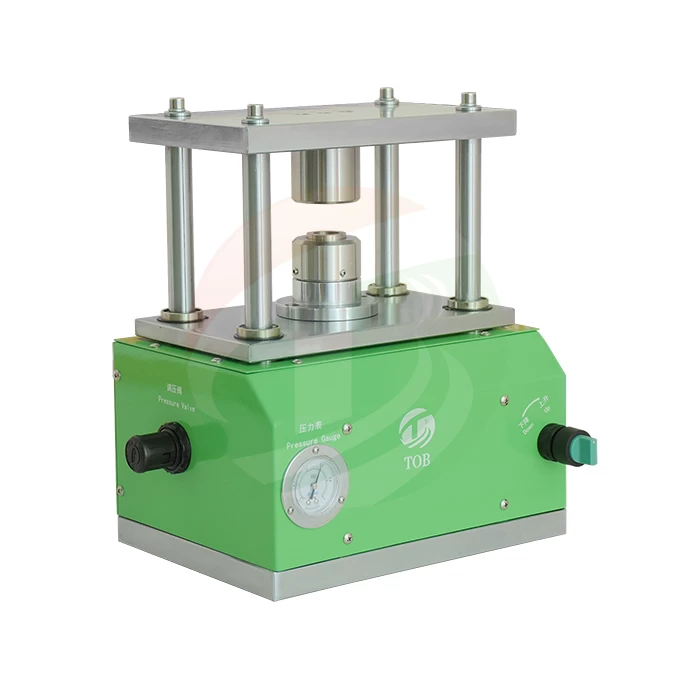

PRODUCT DISPLAY

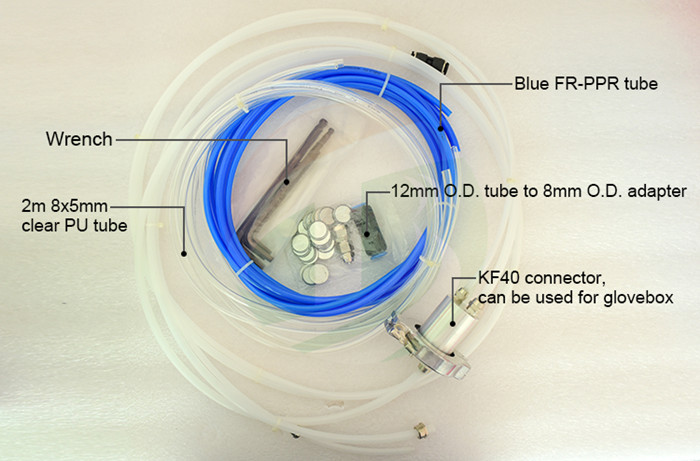

PACKAGE
