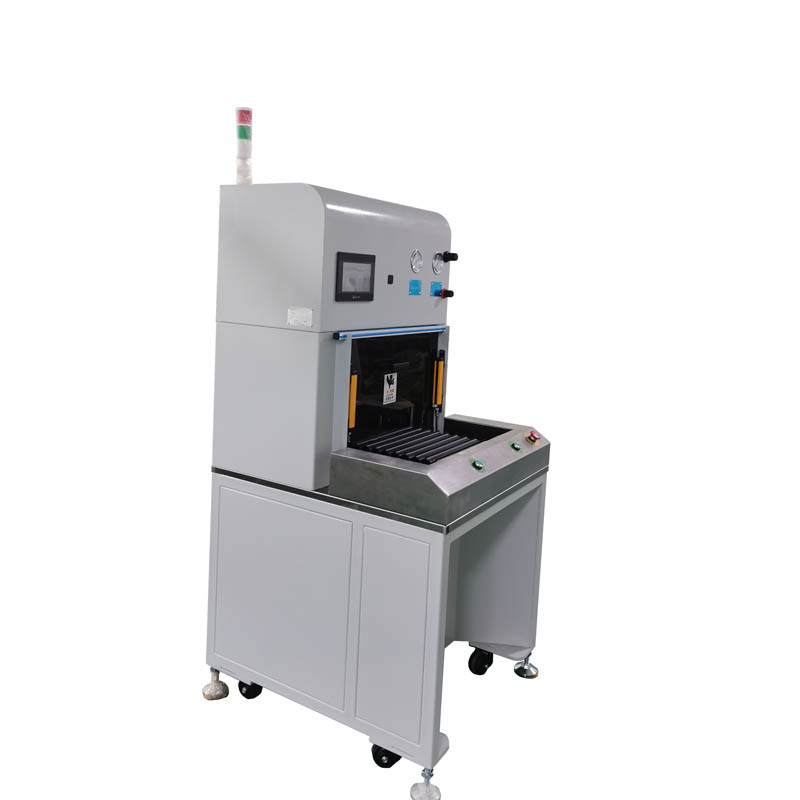

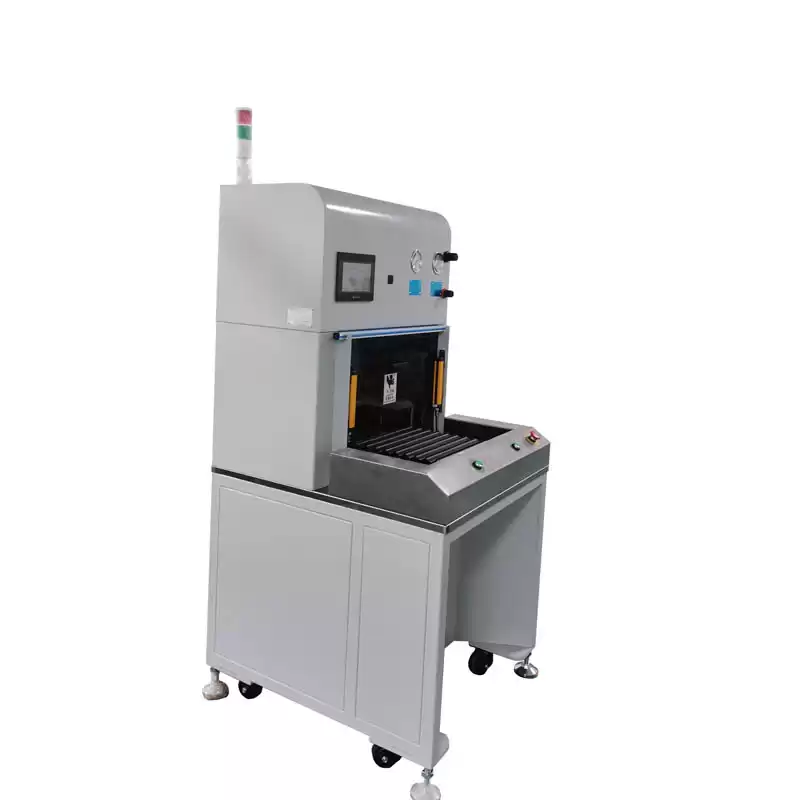

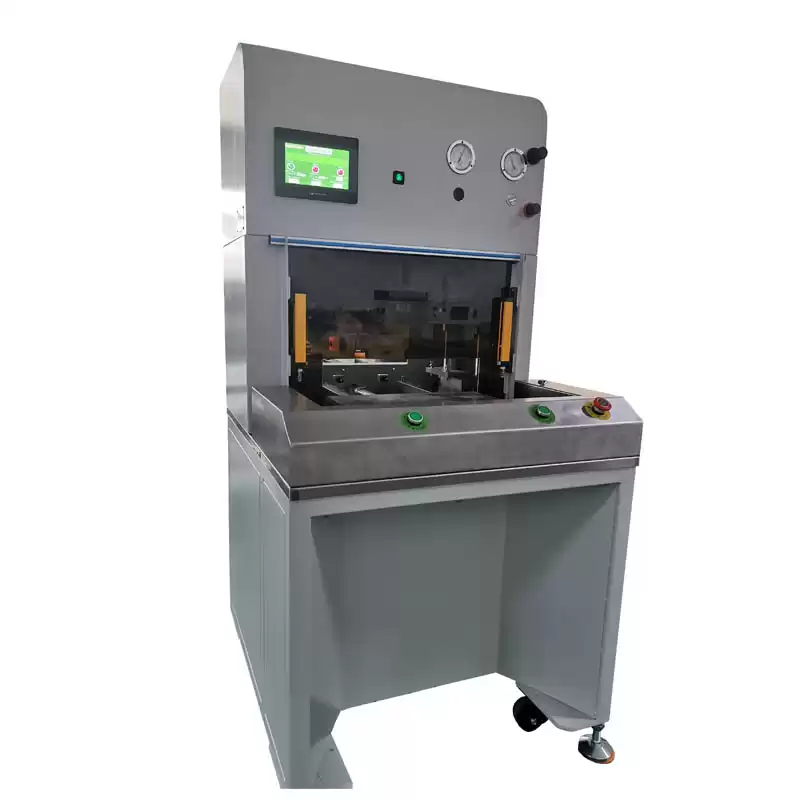

Pneumatic PCB Punching Machine With Air Cylinder Driven
Pneumatic PCB Punching Machine Functions:
The pneumatic pcb punching machine uses a special fixture - upper mold and lower mold with punching bites ; to separate single PCB and FPC from a large panel. ;The pcb punching machine adopts the latest gas-electric
lightweight design, it is workable for all tab panels, covering FR4, FPC and Aluminum boards.
We provides different output capacity to meet client's different applications' needs.
SPECS:
|
Working area
|
330x220mm
|
|
Working pressure
|
0.45-0.7Mpa
|
|
Cutting precision
|
±0.05mm
|
|
Cycle time
|
7-15 seconds
|
|
Output
|
8T
|
|
PCB/FPC thickness
|
0.08-3.5MM
|
|
PCB/FPC material
|
FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
|
|
Cutting mode
|
Punching
|
|
Punch fixture
|
Die tooling(mold)
|
|
Working Property
|
LCD display, Automatically records the number of
processed products, automatic punching
|
|
Transmission port
|
International standard
|
|
Operation Language
|
English
|
|
Stroke
|
50MM
|
|
Mold height
|
170MM
|
|
Power
|
380/220V
|
|
Fuse
|
3A
|
|
Machine dimension
|
800x750x1750mm
|
|
Machine weight
|
580kgs
|
FEATURES:
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2. Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.
3. Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould
4. Double swith start buttons for safe operation.
5. Workable for both rigid and flexible PCB boards.
6. Suitable for high volume routed boards.
7. Optional 3T/5T/8T/10T output to meet different application needs.
SPARE PARTS:
1. Customized die tooling
2. Punching bites
APPLICATIONS:
OUR SERVICE:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
