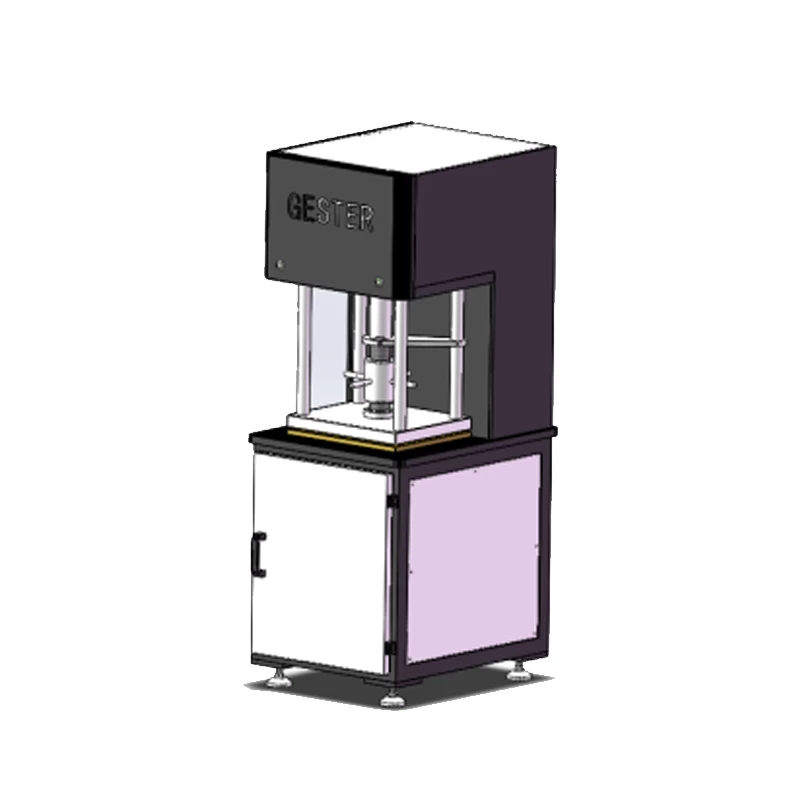

Pneumatic Sample Cutting Machine GT-KD20

This is console model pneumatic sample cutting machine, which is suitable for cutting paper, cardboard,textile, leather, rubber and other materials.

Facebook Twitter Pinterest LinkedIn 分享

Pneumatic Sample Cutting Machine GT-KD20


Product Introduction

Application:

  • This is console model pneumatic sample cutting machine, which is suitable for cutting paper, cardboard, textile, leather, rubber and other materials.

Standards:

ASTM D3776/2646, ISO 3801, BS 3424/2471, BS EN 12127, M&S P65/65A, ISO 20344 ,ISO 5470-2,ISO 3801,AS/NZS 2210.2, GB/T 20991,SATRA TM31

Feature

  • Pneumatic Rubber Sample Cutting Machines is equipped with a steel base. Customer does not need to prepare the working table.
  • Pneumatic Rubber Sample Cutting Machines adopts the rectangle compression platen of dimension 450mm* 380mm , which is install with four guide rods. That is aimed to ensure the parallelism between compression platen and workbench and keep stable during running.
  • Using air cylinder with engine bore of 300mm. It can provide pressure of 4T at the gas pressure of 6kg/cm2.
  • Equipped with dual boot switch, in order to keep safety of operator.


Key Specifications



Model

GT-KD20

Max Pressure

4T

Pressing Plate Dimension

450x380mm

Table-board Dimension

640X480mm

Max Stroke

150mm

Distance from Pressing Plate to Table-board

150mm

Air pressure

6kg/cm2

Power supply

AC220V±10% 50/60Hz

Dimensions

810 x 640 x 1720mm (L x W x H)

Weight

350kg



Accessories

Standard accessories

1pc

Round Die 100cm2



1pc



Power Line

Optional accessories

Optional

Customized Cutting Die
