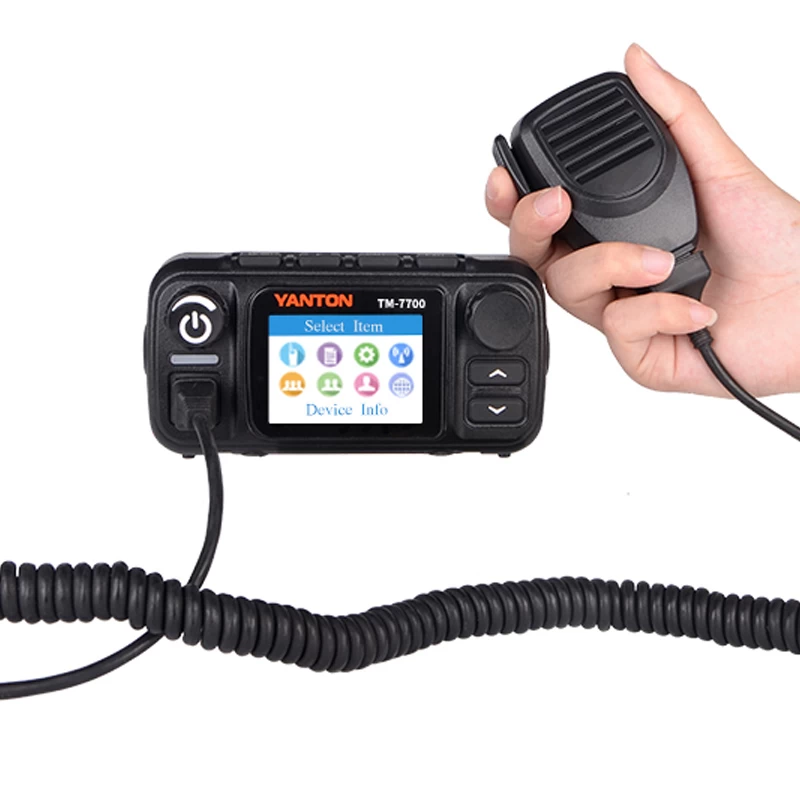

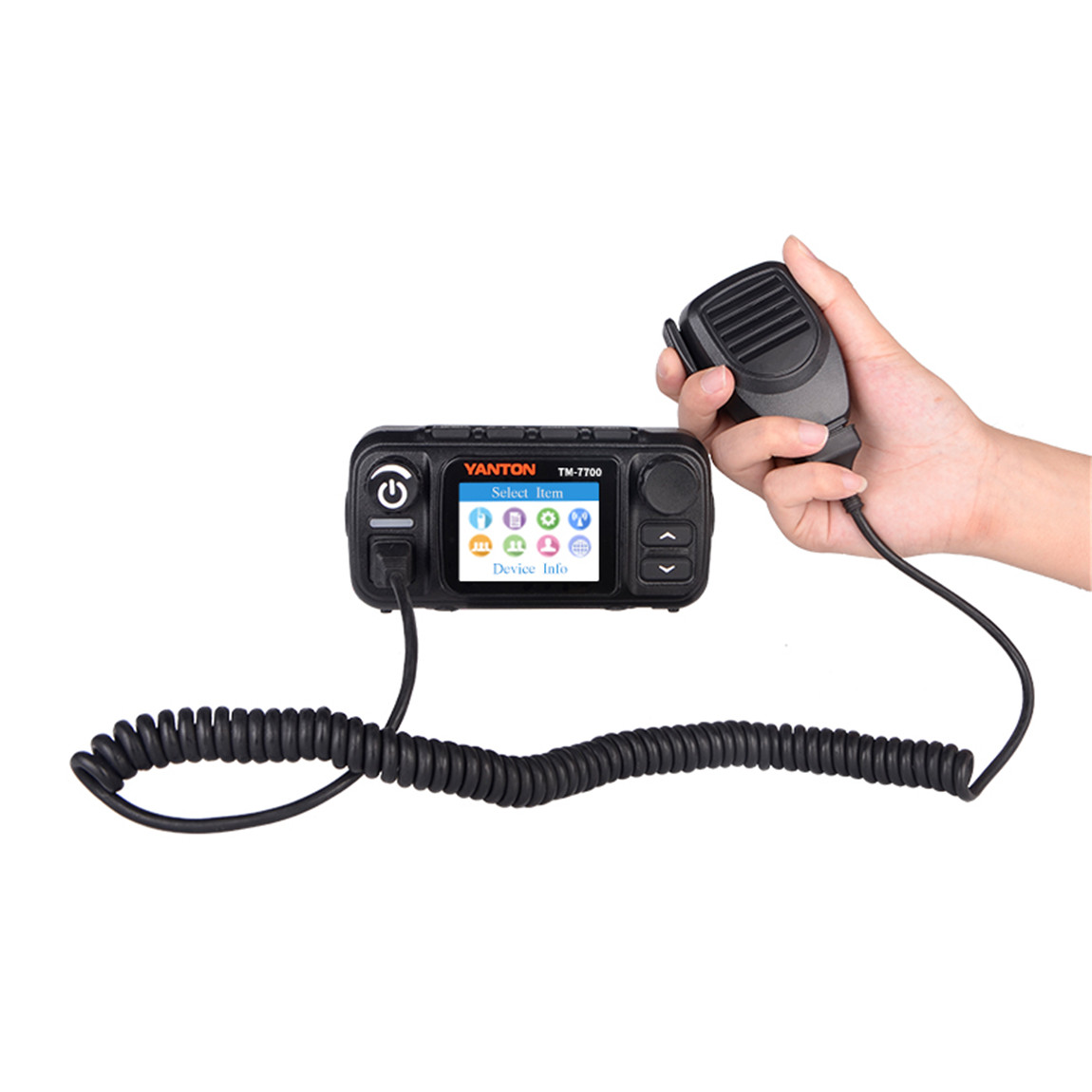

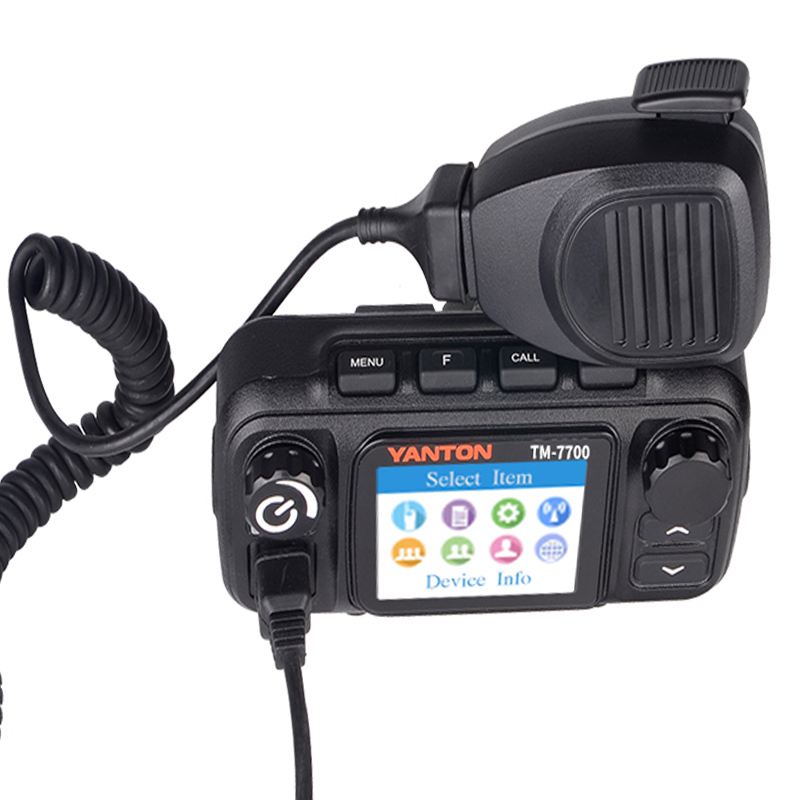

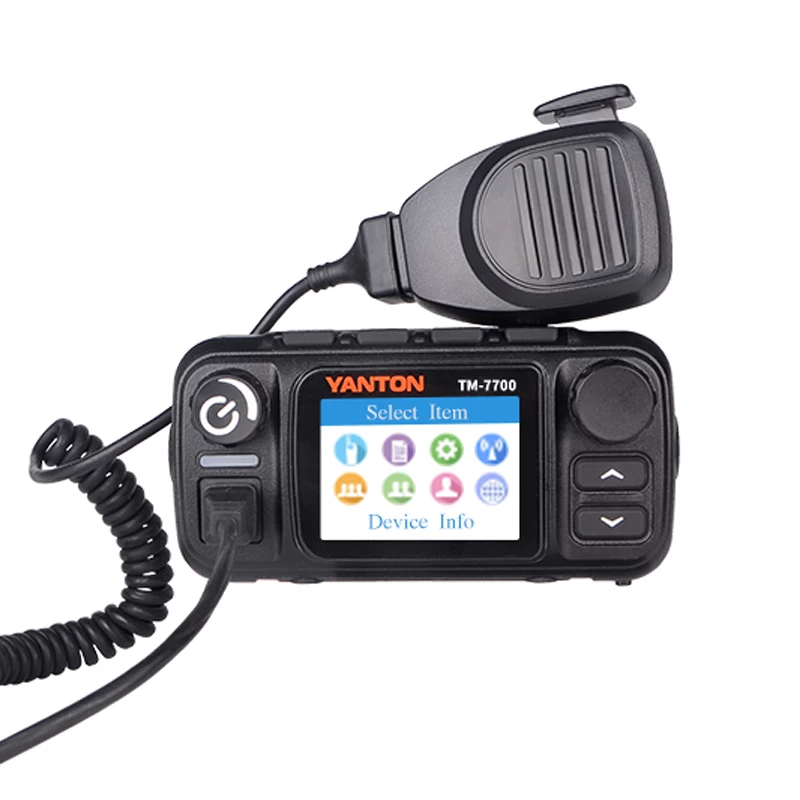

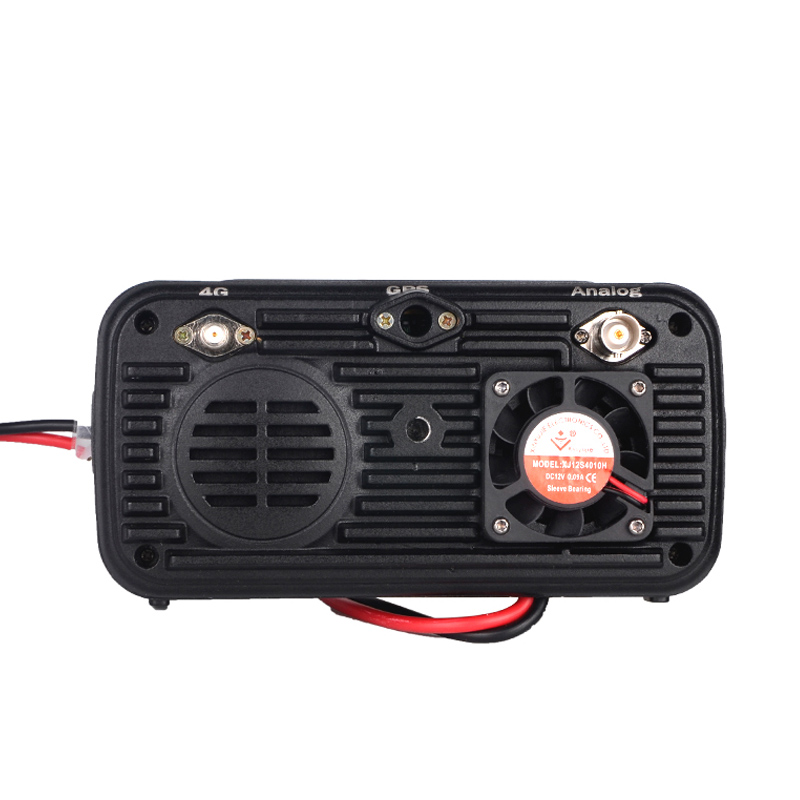

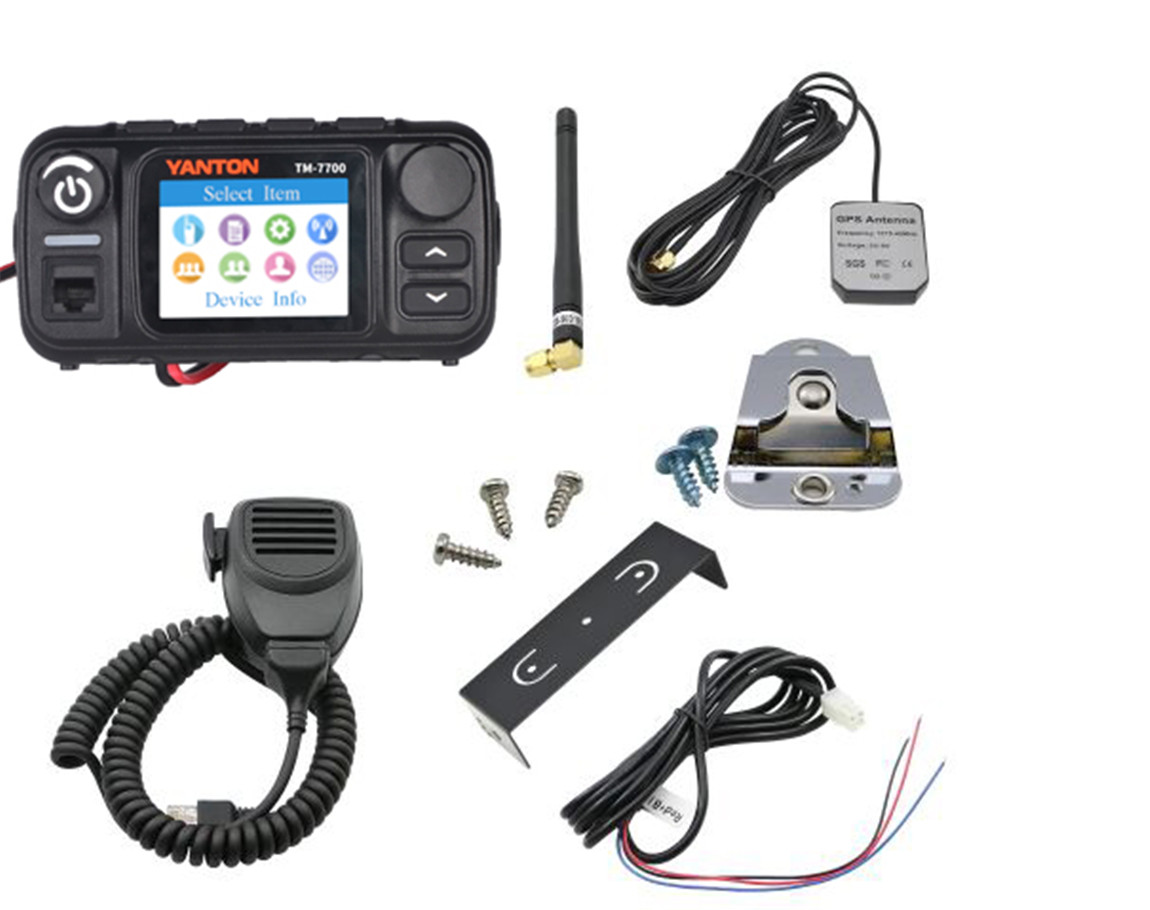

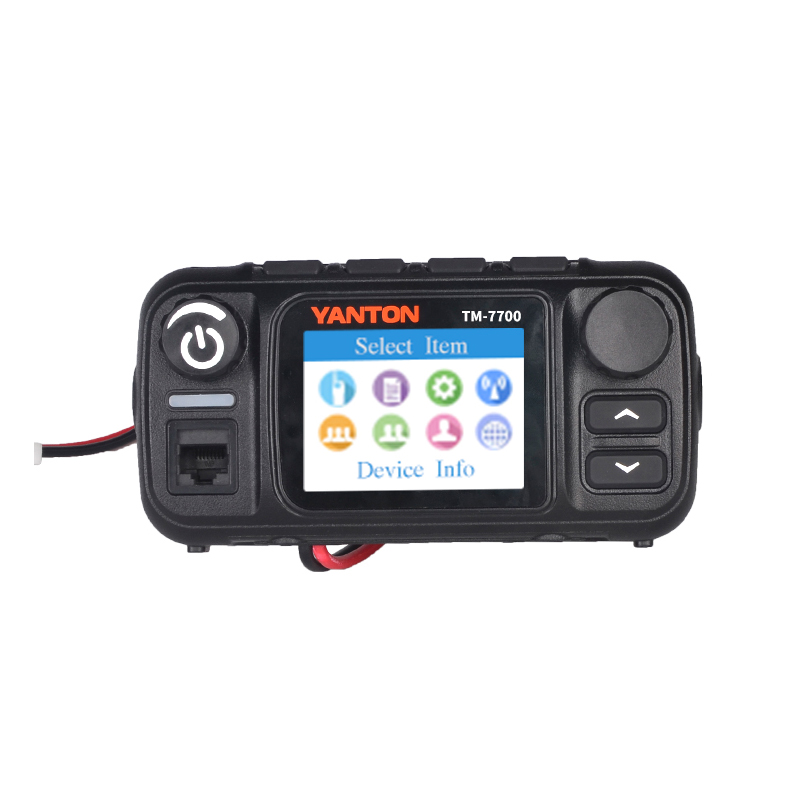

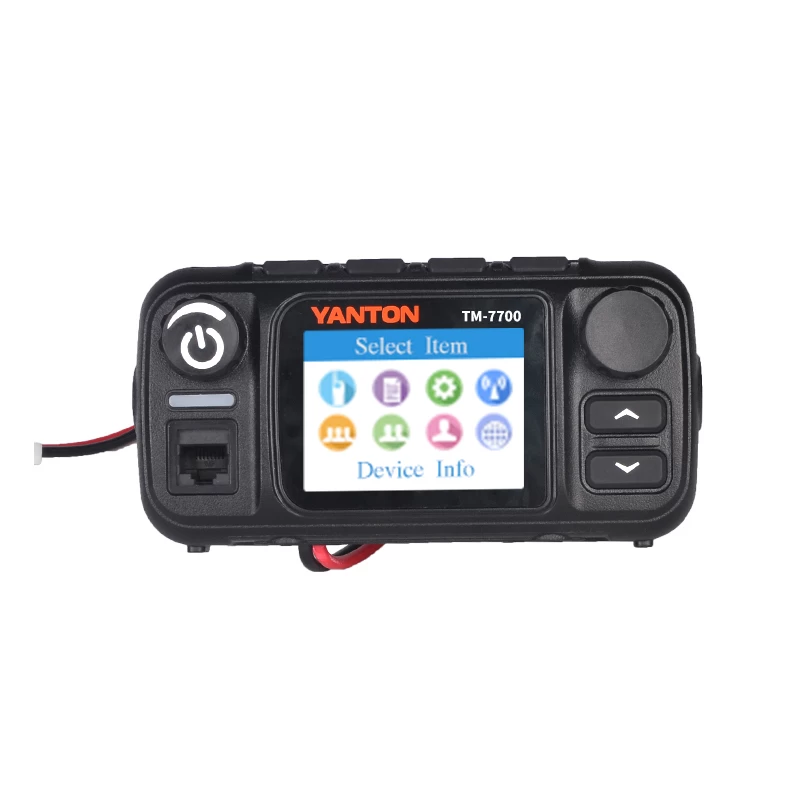

POC LTE 4G Vehicle Mounted Mobile Car Radio
Push To Talk Over Cellular 4G Car Radios,new generation of LTE/4G POC mobile radio that enable the usage of PTT over networks, excellent data transmission rates and the speech quality 4KB and 8KB slection, delivering wide coverage expansive coverage in every area and situation.
Quick Details
1.GPS Function
2.SOS & APRS function
3.Voice Prompt
4.Group Call, Private Call, Friends Call, Emergency Call
5.Network Signal Strength Prompt
Specification
|
Operator System
|
LINUX
|
|
LTE/4G
|
Band:B1/B2/B3/B4/B5/B7/B8/B12/B20/B38/B39/B40/B41
|
|
WCDMA
|
Band
1:2100M Band2:1900M Band5:850M Band 8:900M
|
|
GSM
|
Band
1:2100M Band2:1900M Band5:850M Band 8:900M
|
|
Receive sensitivity
|
LTE/4G:≤-100dBm
LTE/4G:≤-100dBm
WCDMA 2100:≤-110dBm
WCDMA 2100:≤-110dBm
|
|
GPS
|
GPS
Positioning, Support A-GPS function
|
|
GPS
sensitivity
|
GPS
L1 Band:1.57542GHz
GLONASS Band:1597.5-1605.8Mhz
BeiDou:1559.05-1563.8MHZ
Catch-144dBm, Track-159dBm
GSM CS:UL 9.6kpbs/DL9.6kpbs
GNSS current:100mA(GSM/CDMA/UMTS/LTE)
|
|
Dimensions
|
153mm(L)*78mm(W)*45mm(H)
|
|
weight
|
570g
|
|
voltage
|
12-24V/DC
|
|
|
|
Data Speed Rate
|
EDGE:Multi-slot
Class 12
WCDMA CS:UL 64kpbs/DL 64kpbs
WCDMA CS:UL 384kpbs/DL 384kpbs
HSDPA/WCDMA/EDGE/GPRS/GSM
|
|
Working Current
|
Require
7.4V-240V Power Supply(Notice that 5V Power Band NOT work)
|
|
Working Temperature
|
-20~50℃
|
|
Color display
|
2.8inch
|
|
Sim card type
|
Normal sim card
|
Push To Talk Over Cellular 4G Car Radios
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
