Introduction

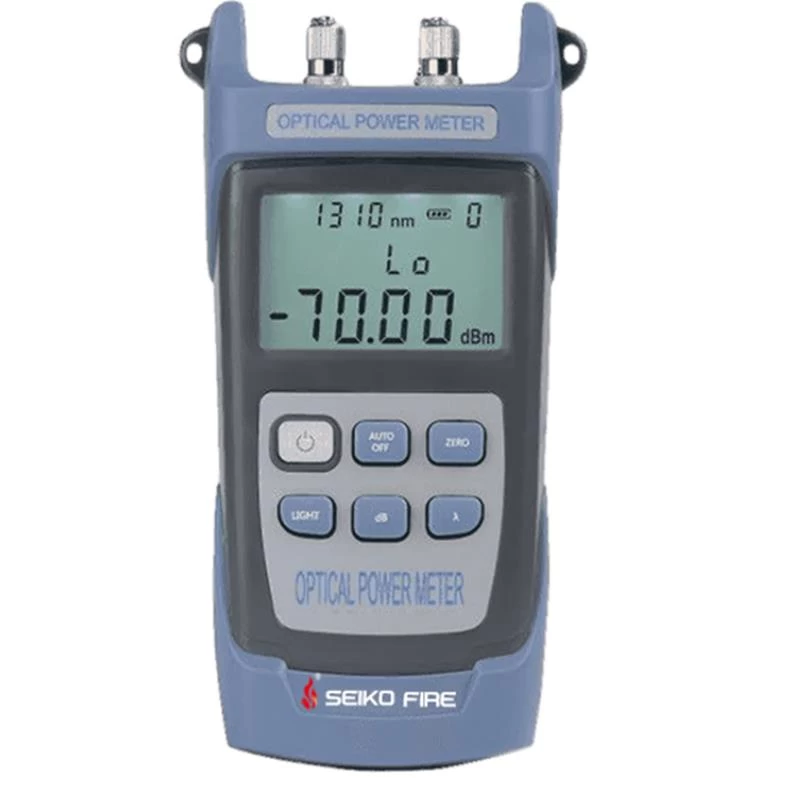

S300 Power Meter is specifically designed for the network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of network of FTTX.
Features
-
Support linear mw and nonlinear index dBm
simultaneous display
-
Support automatic shutdown
-
Support backlight selection
-
Support user self-calibration
-
Support restore factory settings
-

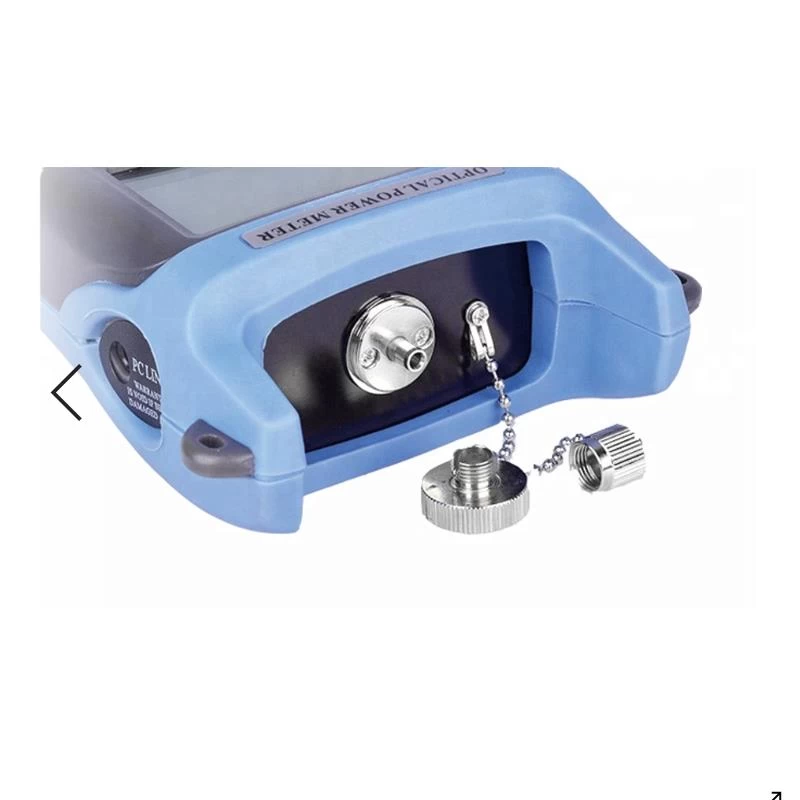

Supports FC, SC, and ST interfaces
-
Working time is longer than 120 hours
Specifications
|
Wavelength range
|
800nm~1700nm
|
800nm~1700nm
|
|
Optical Connector
|
FC/SC/ST
|
FC/SC/ST
|
|
Detector type
|
InGaAs
|
InGaAs
|
|
Measurement range
|
-70dBm~+10dBm
|
-50dBm~+26dBm
|
|
Accuracy
|
±5%
|
|
Standard wavelength
|
850/980/1300/1310/1490/1550/1625/1650nm
|
|
Display resolution
|
mw: 0.1%, dBm: 0.01
|
|
650nm VFL (optional)
|
2mw/5mw/10mw/20mw/30mw/50mw
|
|
Laser source (optional)
|
850/1300/1310/1490/1550/1625/1650nm
|
|
Laser source stability
|
0.02dB
|
|
Working temperature
|
-10~+60℃
|
|
Storage temperature
|
-30~+70℃
|
|
Auto off time
|
10 min
|
|
Battery continuous operating time
|
≥120 h
|
|
Structure size
|
186mm*100mm*50mm
|
|
Power
|
Three section 5 batteries/Lithium
battery (optional)
|
|
Instrument net weight
|
240g
|
