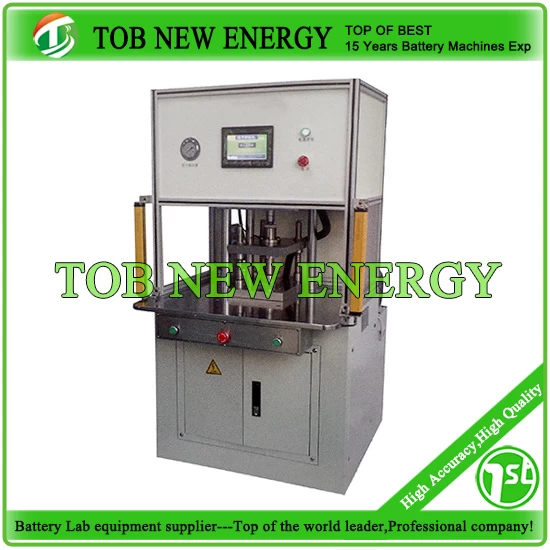

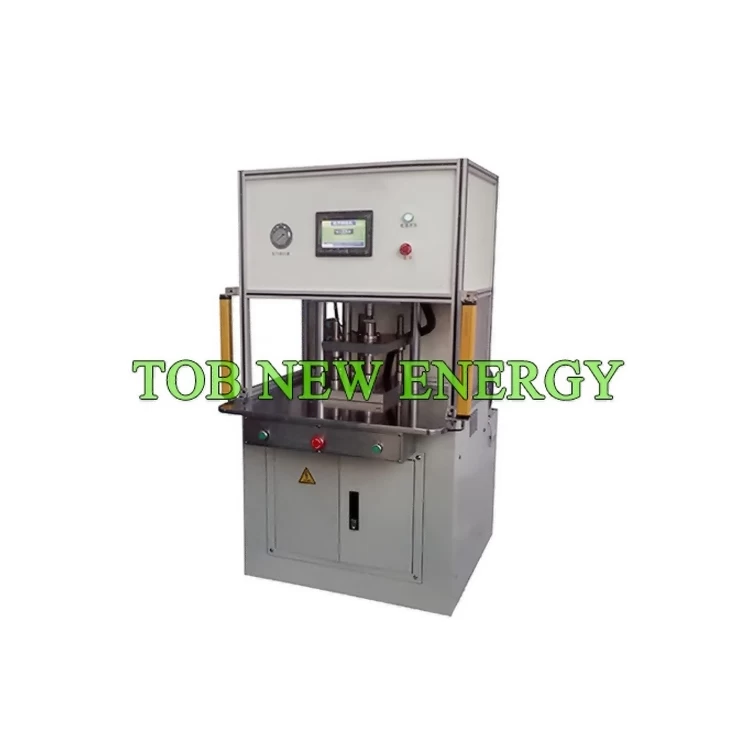

Pole Ear Riveting Machine for the riveting of supercapacitor and lithium-ion power battery' s pole ear and leading-out terminal
SPECIFICATIONS
Functional overview
Suitable for the riveting of supercapacitor and lithium-ion power battery' s pole ear and leading-out terminal.
Functional characteristics
1.Adopt hydraulic system as the punching power, with big force and stable speed.
2.The device adopts PLC control system to ensure stable and reliable system operation, and simple operation.
3.Riveting punch adopts high-strength and high-wear-resisting alloy die steel, with good wear resistance.
4.Equipped with safety light grid and protective door, with safe and reliable operation.
Technical parameters
|
The maximum slider stroke
|
100mm
|
|
The maximum riveting pressure
|
16t
|
|
Pressure holding time
|
0~10s(can be set)
|
|
Power source
|
AC380/50Hz Power:6KW
|
|
Overall dimensions(LxwxH)
|
660x1100x1500mm
|
|
Weight
|
420kg
|
