Overview

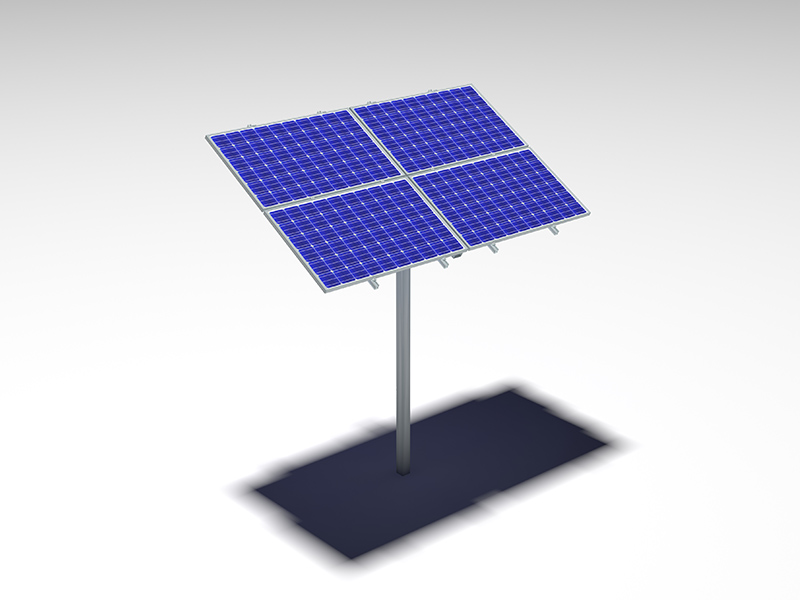

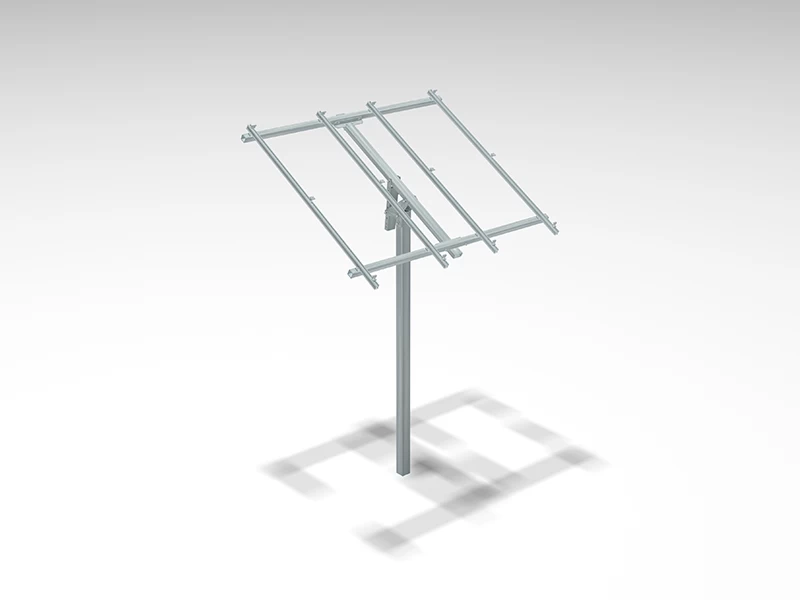

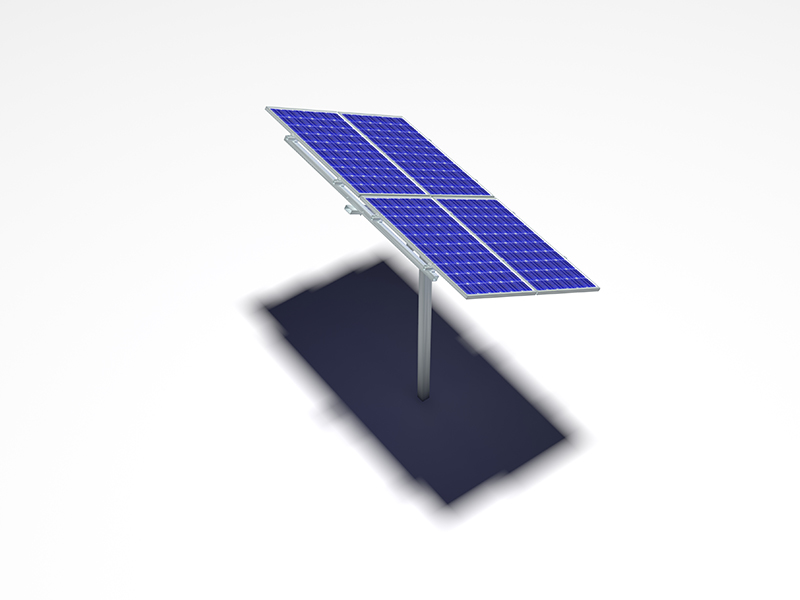

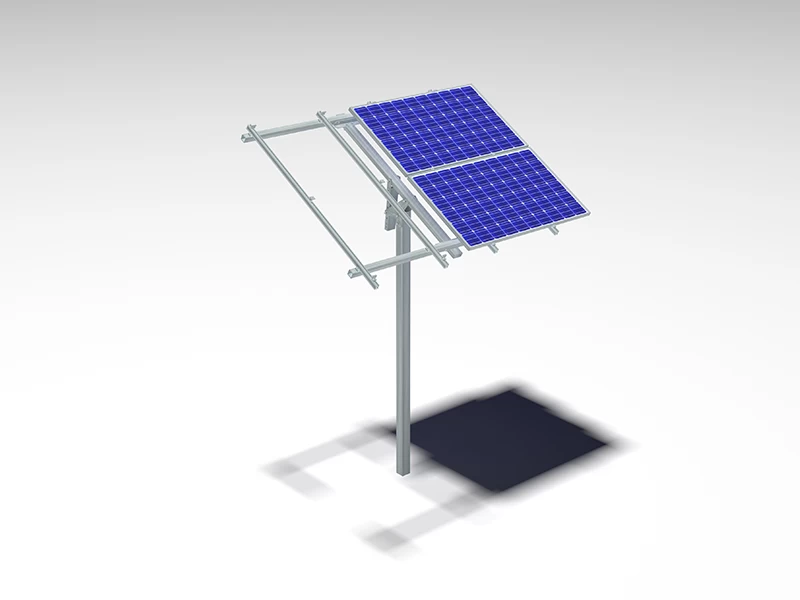

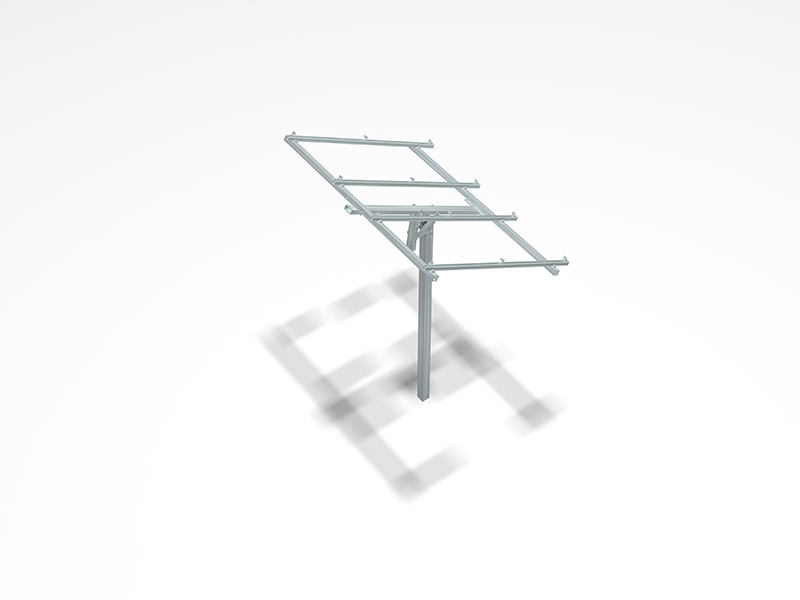

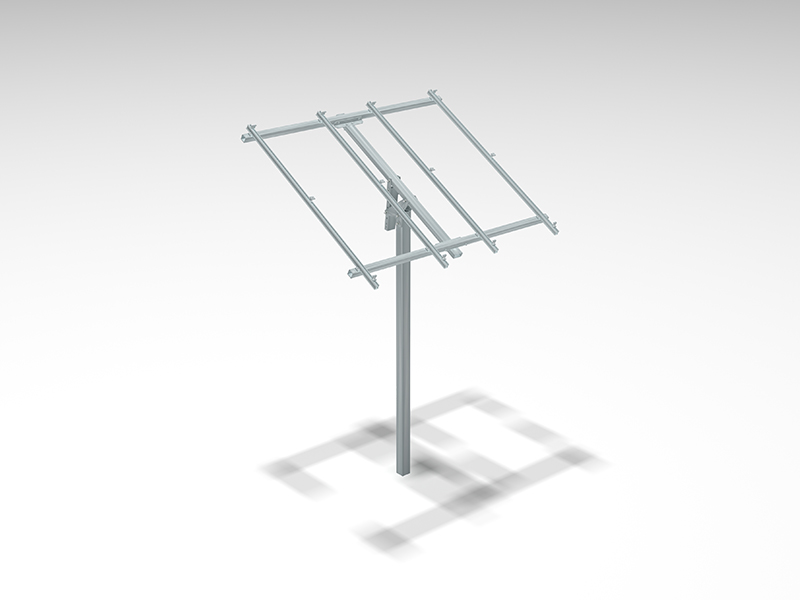

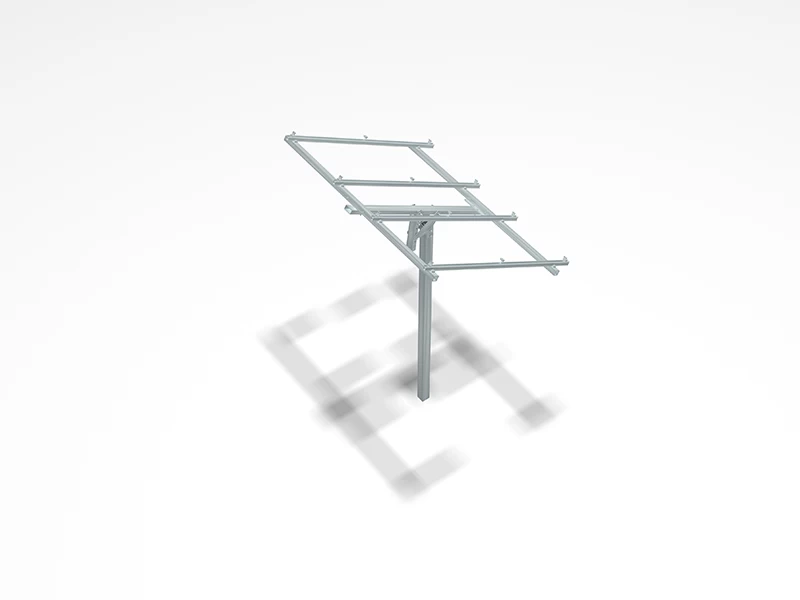

MRac Pole Rack System is a ground PV mounting system to be applied for the installation of solar PV project on uneven lands like hillside, suitable for off-grid systems and telecom stations. With its flexible and professional design, 6 to 16 solar modules can be installed on a pole system and the tilt angle of solar module can be adjustable from 0 to 60 degrees.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
Rammed Post, Concrete Foundation or Ground Screw
|
|
Tilt Angle
|
10-60°
|
|
Wind Load
|
32m/s
|
|
Snow Load
|
1.3KN/㎡
|
|
Ground Clearance
|
200-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.
Flexibility and Adjustability
The structure can be adjusted from 0 to 60 degrees with pre-machined screw holes and with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
Single-Pile Design
Single-pole design require small area of land for foundation.
Compatible to Varied Solar Modules
With MRac module clamps, the system compatible with most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.
Technology Certification
