Polyimide Film Tape for Lithium Battery Silicone Tape
Product Specification
Features:
This Product is made of polyimide film backing and single coated with high temperature silicone adhesive. It’s provide with high temperature resistance, electrolyte fluid resistance, solvent resistance, high electrical strength, excellent insulation and high adhesion. The material is environmental friendly and ROHS Complied.
Application:
Specifically applied for lithium/nickel/cadmium battery of aluminum & steel casing, soft packed battery. Ideal for sealing, holding and insulation protection.
|
Item
|
TOB-0035KLS
|
TOB-0042KLS
|
TOB-0055KLS
|
TOB-0060KLS
|
|
Backing
|
PI Film
|
PI Film
|
PI Film
|
PI Film
|
|
Adhesive
|
Silicone
|
Silicone
|
Silicone
|
Silicone
|
|
Total Thickness （mm）
|
0.035
|
0.042
|
0.055
|
0.060
|
|
Color
|
Amber
|
Amber
|
Amber
|
Amber
|
|
Peel Adhesion （N/25mm)
|
5
|
5
|
6
|
6
|
|
Tensile strength
（N/25mm)
|
50
|
50
|
75
|
75
|
|
Heat Resistance
（℃）
|
-40 ≈+150
|
-40 ≈+150
|
-40 ≈+150
|
-40 ≈+150
|
|
Breakdown Voltage
（KV）
|
5
|
5
|
6
|
6
|
|
Unwind Force
|
Medium
|
|
Standard Width
（mm）
|
2-500
|
|
Standard Length
（m）
|
33/50/66/100
|

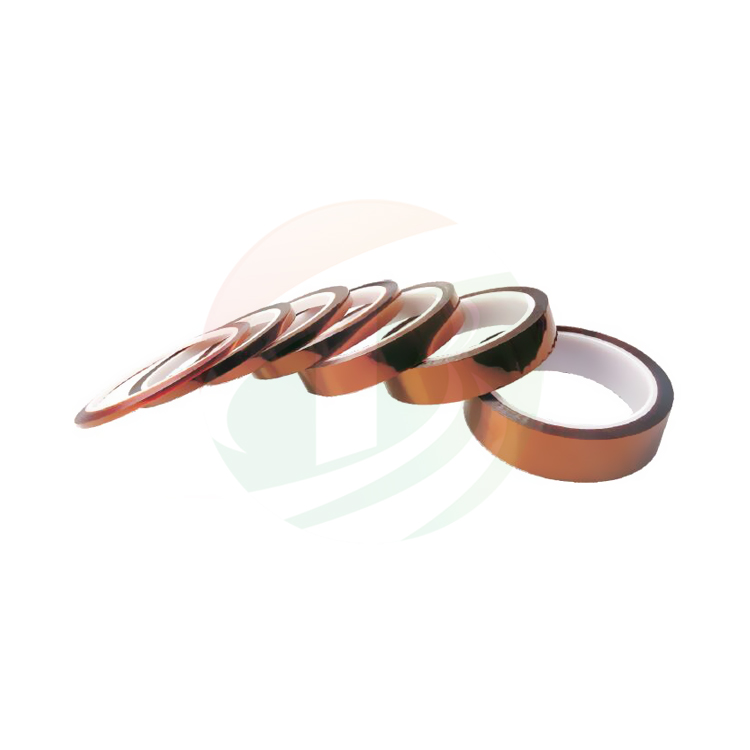

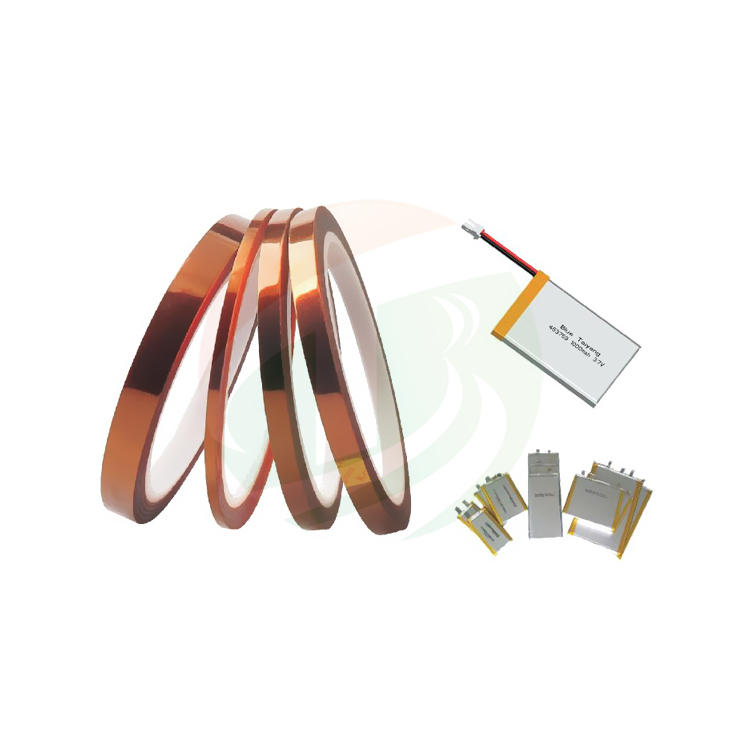

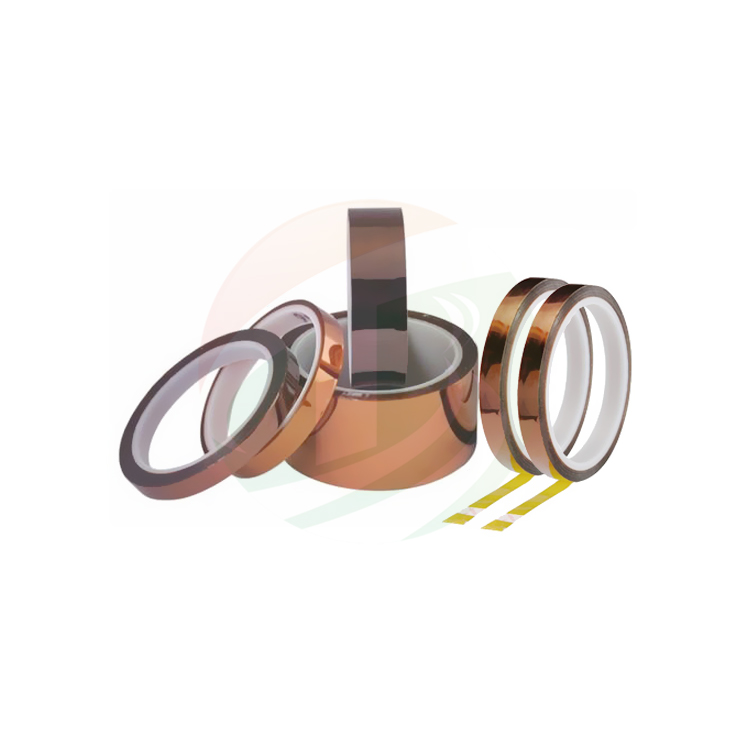

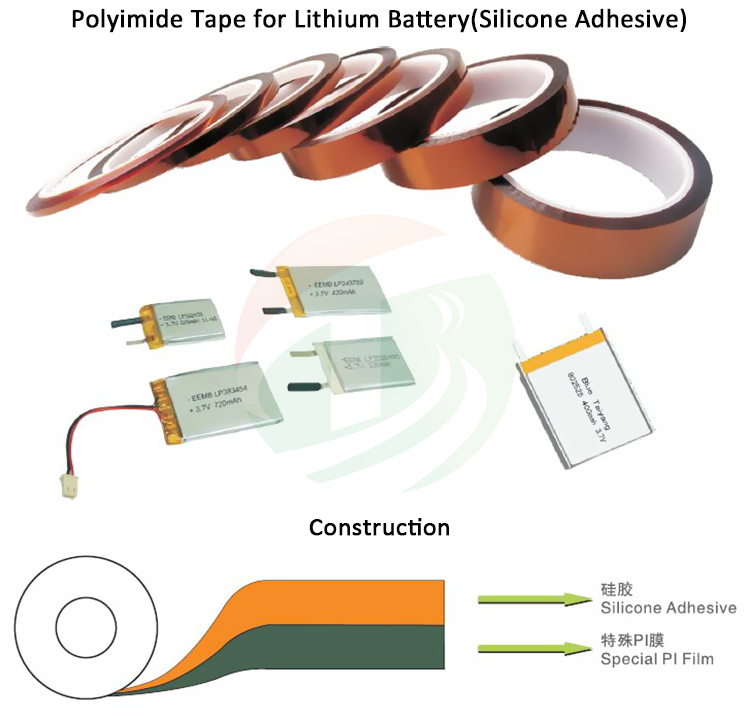

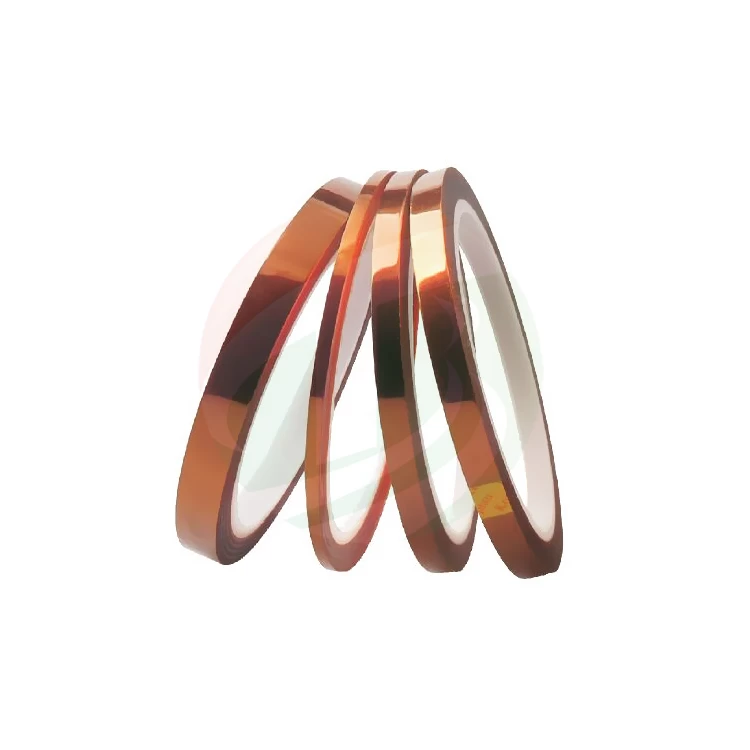

Product Image
