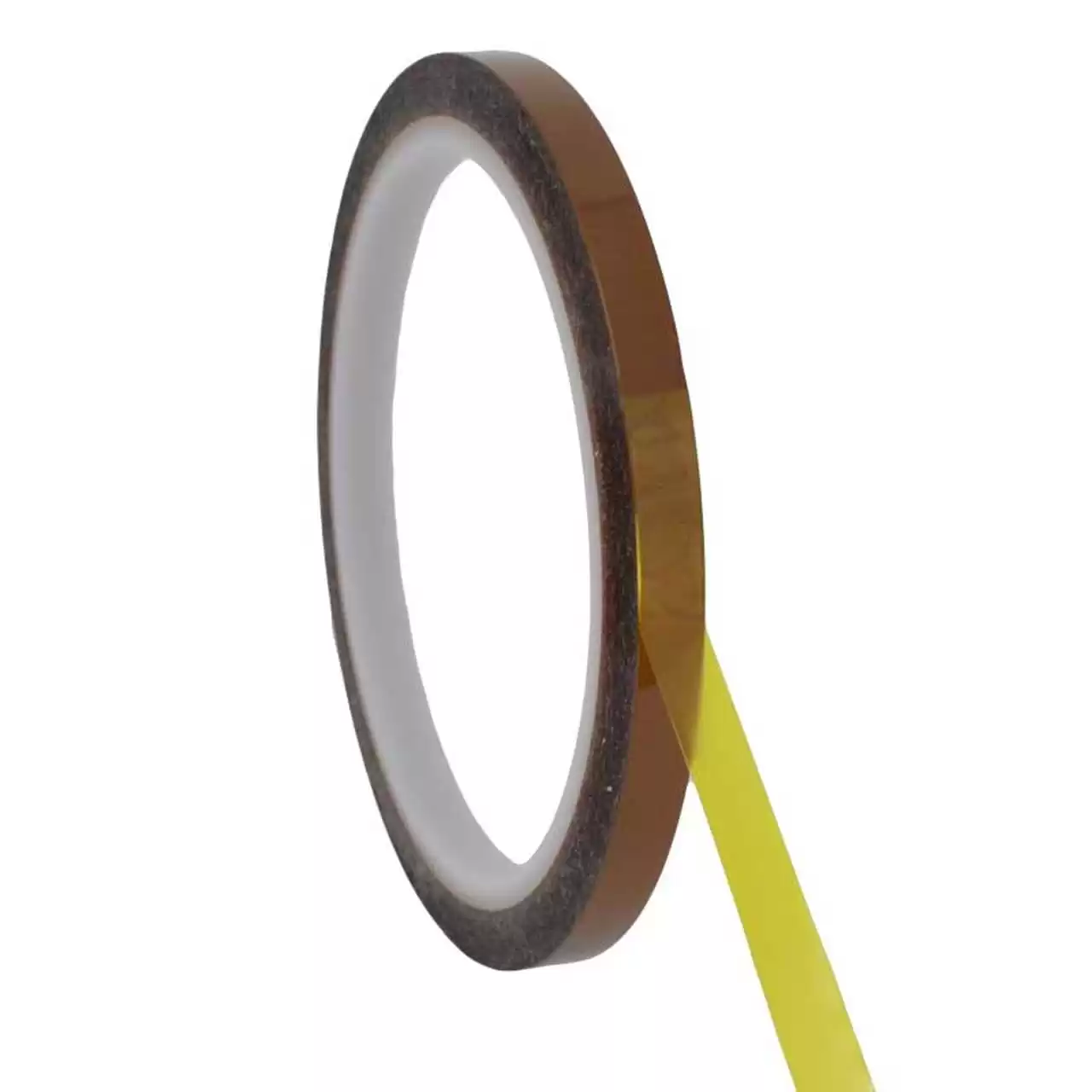

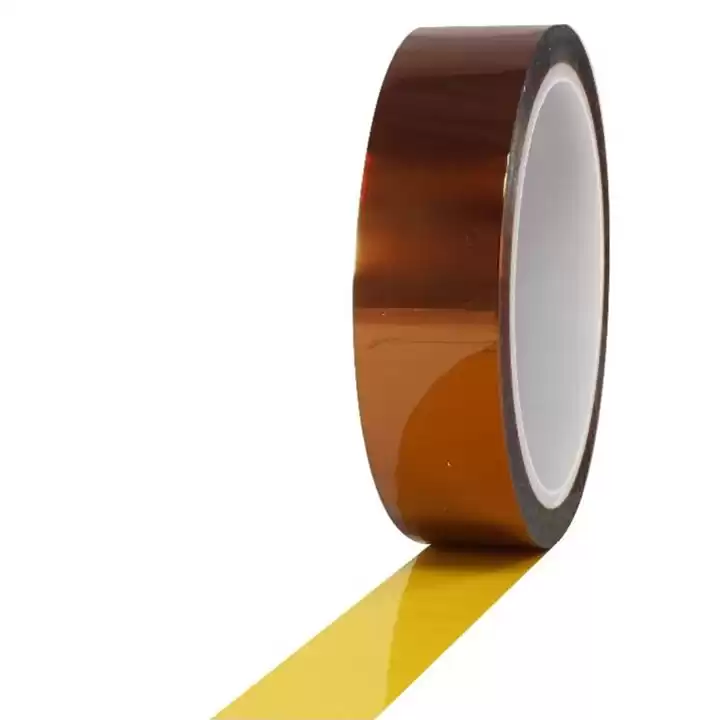

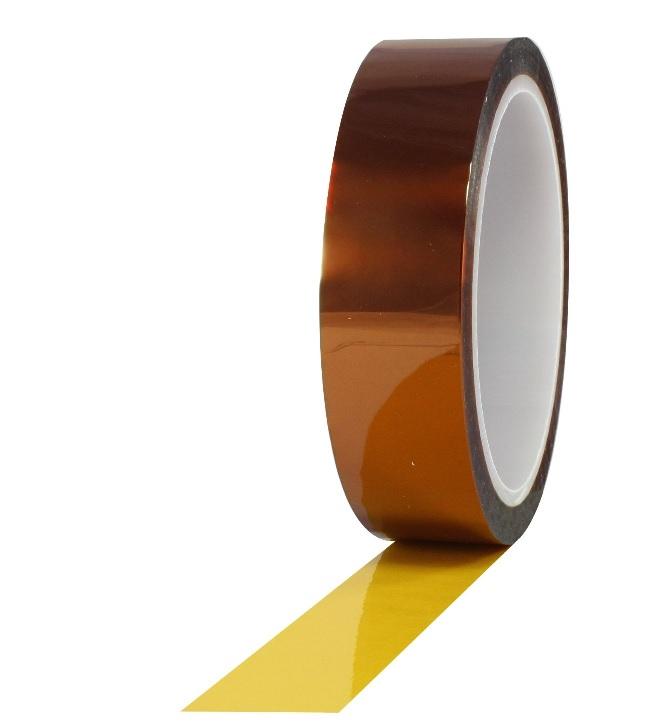

10mm Width High Temperature KAPTON Tape For Lithium Battery Electrode Fixed And Strapping



SPECIFICATION

Item	TOB-0035KLS	TOB-0042KLS	TOB-0055KLS	TOB-0060KLS
Backing	PI Film	PI Film	PI Film	PI Film
Adhesive	Silicone	Silicone	Silicone	Silicone
Total Thickness(mm)	0.035	0.042	0.055	0.060
Color	Amber	Amber	Amber	Amber
（N/25mm) Peel Adhesion	5	5	6	6
（N/25mm) Tensile strength	50	50	75	75
Heat Resistance(℃)	-40≈+150	-40≈+150	-40≈+150	-40≈+150
Breakdown Voltage(KV)	5	5	6	6
Unwind Force	Medium
Standard Width	2-500(mm)
Standard Length	33/50/66/100
