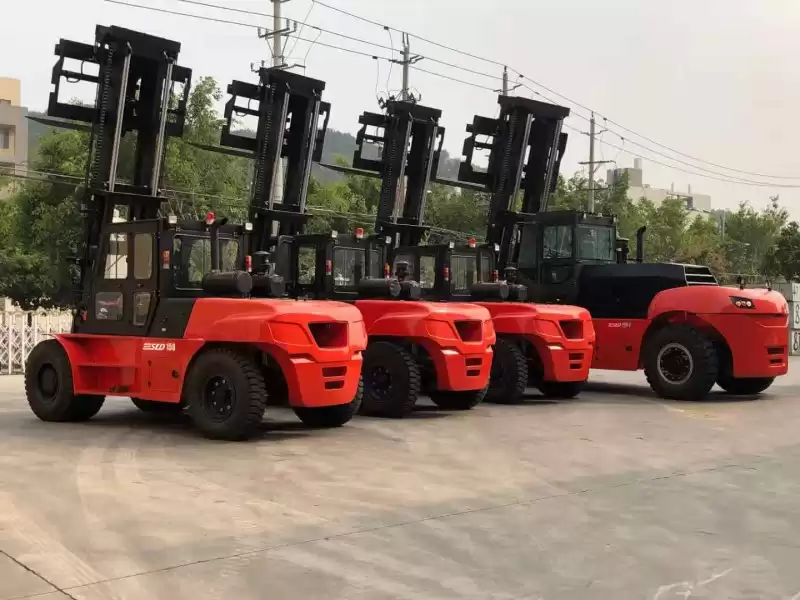

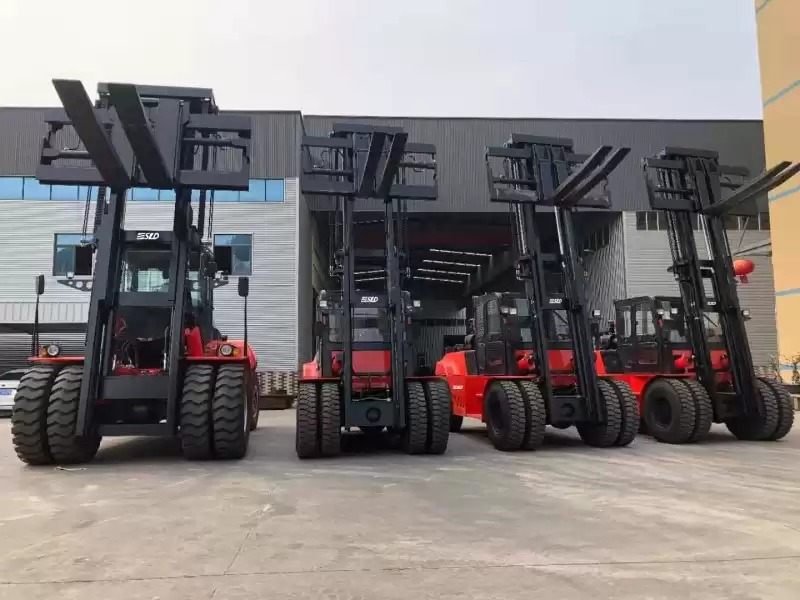

Main features of 15 ton fork lift truck FD150 heavy lift forklift:
1, Frame structure: The frame get through the 3D finite element analysis, superior
structure, reliable quality; the main welding parts through the nondestructive
testing, effective coordination with the reinforced structure.
2, Fork: with hydraulic fork positioner, easy operation and reduce drivers’ labor
intensity
3, Mast: box-type
internal-external mast, special all-round roller bearings, increase lifting
performance.
4, Overhead guard or Cab:Strong roof guard
or full cabin with air-conditioning , wide view and comfortable
seats, flexible control.
5, Engine: Adopt Cummins or Yuchai turbocharging engine, powerful, shigh efficiency operation.
6, Transmission
& torque converter: Use
hydraulic power shift transmission, big traction in combined operating
condition, the transmission system is more
reliable. Adopt double turbine hydraulic torque converter , single lever control for the speed changing,
easier for operation.
7, Cooling system: adopt independent transmission oil and hydraulic
oil cooling, increasing system stability.
|
Parameters:
|
Vehicle configuration
|
|
FD150
|
|
Performance
|
Rated load
|
|
15000
|
|
Load center
|
|
600
|
|
Mast tilt angle (front/rear)
|
º
|
6/12
|
|
Overall dimensions
|
Length
|
mm
|
7200
|
|
Width
|
mm
|
2550
|
|
Height
|
mm
|
3460
|
|
Mast lifting height
|
mm
|
3000
|
|
Fork size (L*W*H)
|
mm
|
1800X200X90
|
|
Min. turning radius
|
mm
|
5050
|
|
Max. travel speed (with load)
|
Km/h
|
22
|
|
Lifting speed (with load)
|
mm/s
|
240
|
|
Gradeability (with load)
|
%
|
20
|
|
Weight
|
Kg
|
18000
|
|
Tyre
|
Front
|
|
4X12.00-24/20PR
|
|
Rear
|
|
2X12.00-20/18PR
|
|
Wheel tread
|
Front
|
mm
|
1850
|
|
Rear
|
mm
|
2130
|
|
Wheelbase
|
mm
|
3600
|
|
Min. ground clearance
|
mm
|
270
|
|
Engine
|
Model
|
|
YC6J175-T302
|
|
Rated power
|
KW
|
129
|
|
Max. torque
|
N.m
|
710
|
Note: the above data are subject to change without prior notice.
