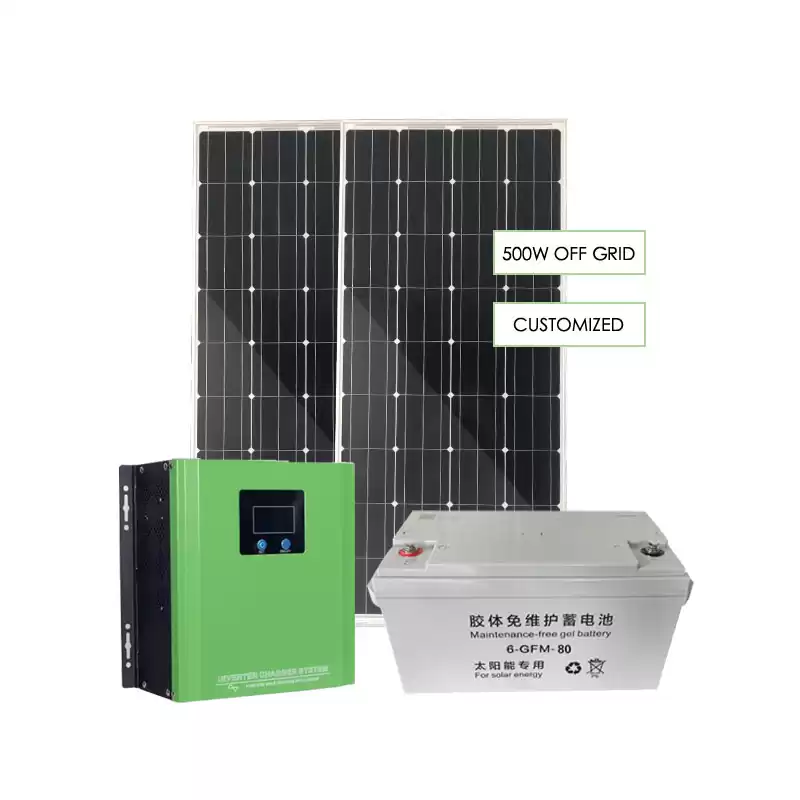

Portable 500W DC AC solar power system for home
This 500W home solar power system kit supports 12V DC output and 220V AC output, and can support 500W load appliances, such as:
300W Rice cooker
|
Use alone for about 6 hours
|
|
150W TV
|
Use alone for about 12 hours
|
|
50W Fan
|
Use alone for about 36 hours
|
Product Specifications:
|

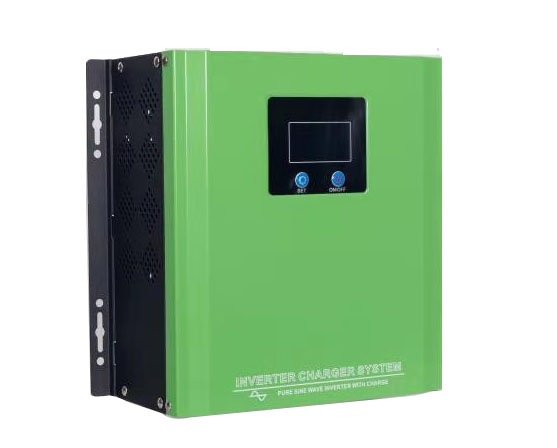

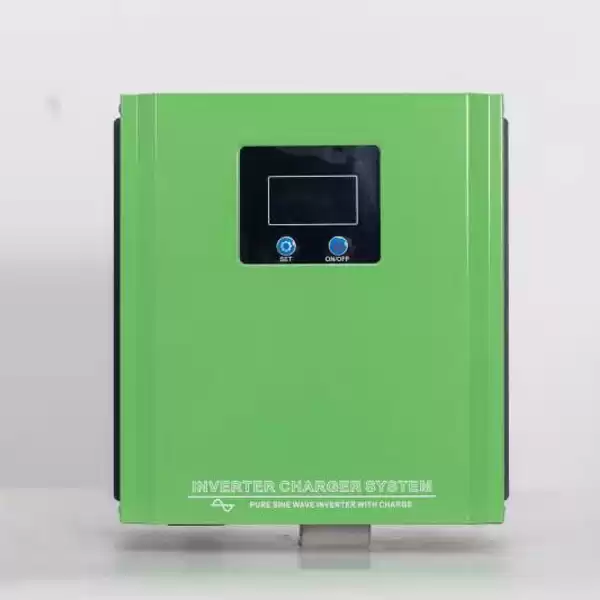

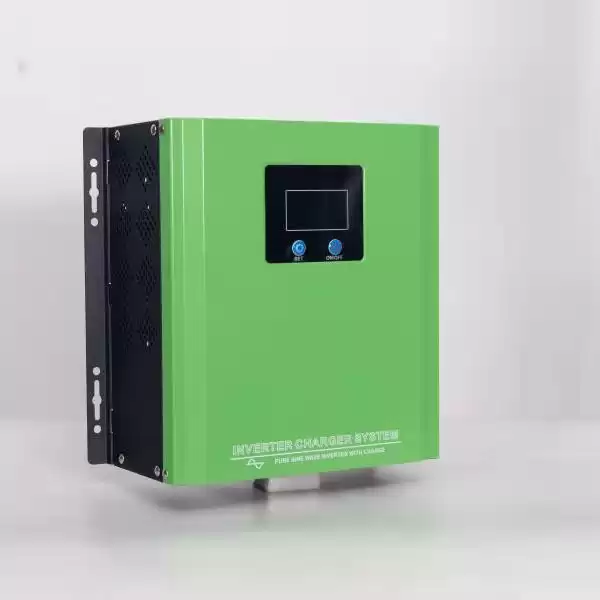

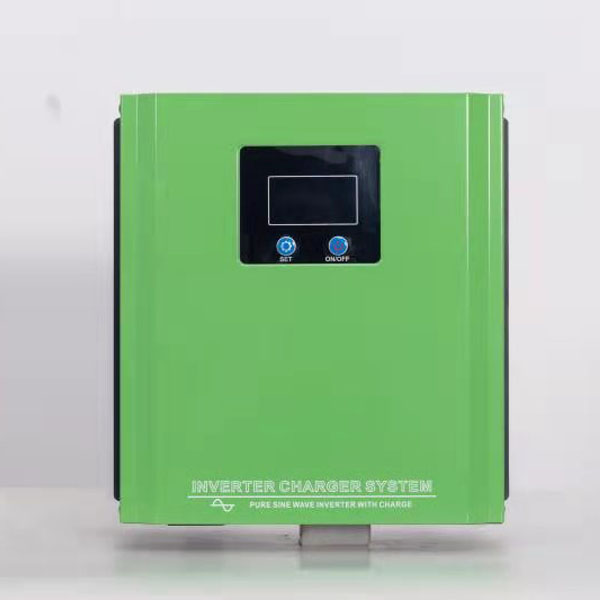

Low Frequency Pure Sine Wave Inverter
|
Input Voltage
|
DC12V
|
|
The Output Voltage
|
AC220V
|
|
Rated power
|
500W
|
|
Surge rating (20ms)
|
1000W
|
|
Output frequency
|
50Hz/60Hz±0.3Hz
|
|
Capable of starting electric Motor
|
150W
|
|
Wave form
|
Pure sine wave/ Same as input (AC mode)
|
|
Nominal output voltage RMS
|
110/120VAC 220/230/240VAC(±3RMS)
|
|
Inverter efficiency(Peak)
|
>85%
|
|
Line mode efficiency
|
>95%
|
|
Conversion Efficiency
|
＞88%
|
|
No-Load Current Consumption
|
<0.6A
|
|
Built-In Charger
|
YES
|
|
Recharging Current
|
5A
|
|
Total Harmonic Distortion (Thd)
|
<4％
|
|
Size
|
290*310*135
|
|
Weight
|
About 15KG
|
|
With Usb Interface
|
/
|
|

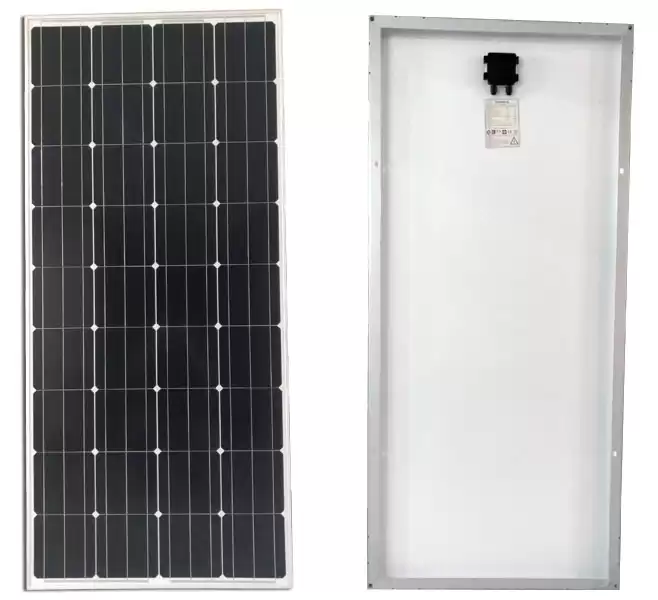

Solar panels *2
|
Maximum Output Power (Pm)
|
150W
|
|
Best Working Voltage (Vmp)
|
18V
|
|
Best Working Current (Imp)
|
8.58A
|
|
Open Circuit Voltage (Voc)
|
21.5V
|
|
Short Circuit Current (Isc)
|
9.7A
|
|
Size
|
1480*670*30
|
|
Weight
|
13KG
|
|
Conversion Efficiency
|
18%
|
|
Power Deviation
|
3%
|
|

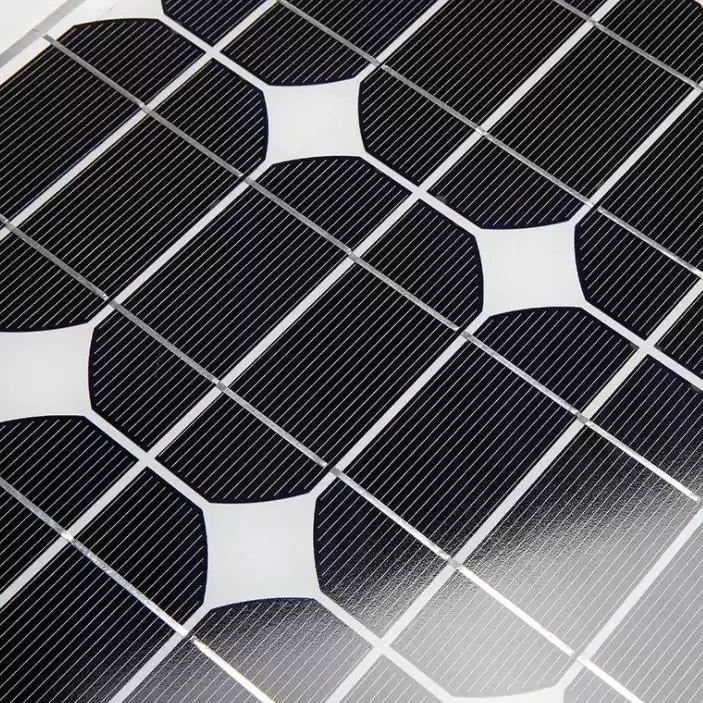

Cell
|
Monocrystalline silicon
|
|
Service Life
|
More than 25 years
|
|

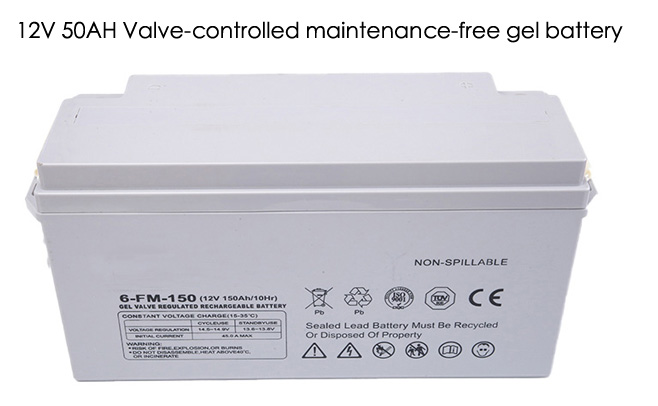

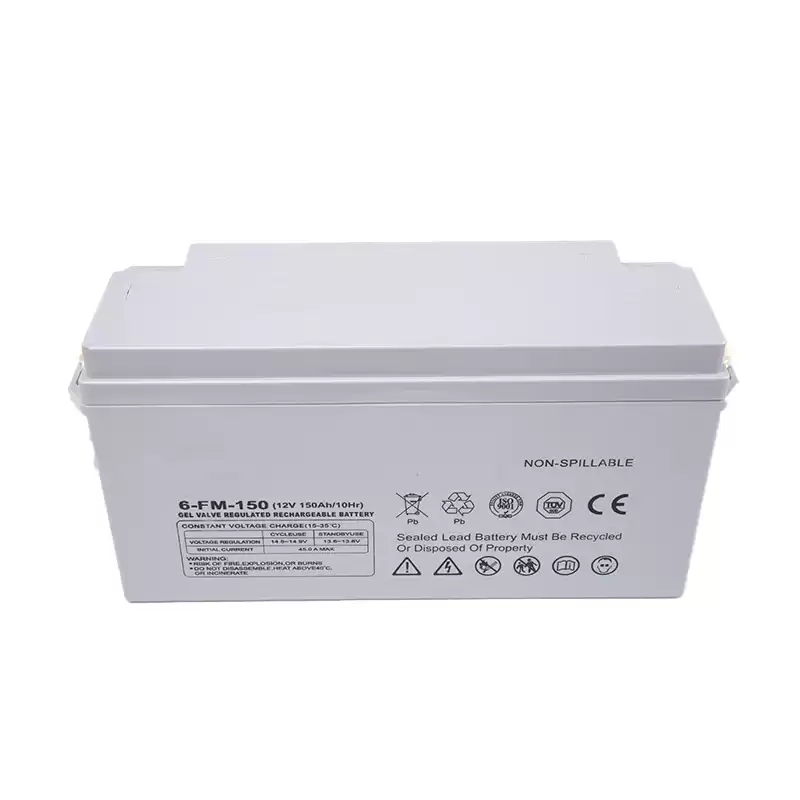

Battery *1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
150AH
|
|
Size
|
483*170*240mm
|
|
Weight
|
About 42KG
|
|
Controller *1
|
System Voltage
|
12V/24V
|
|
Rated Charging Current
|
10A/20A
|
|
Rated Discharge Current
|
10A/20A
|
|
Dc Output Voltage
|
12V
|
|
Maximum Photovoltaic Voltage
|
42V
|
|
Floating Voltage
|
13.8;X2/24V
|
|
Charging Recovery Voltage
|
13.0;X2/24V
|
|
Discharge Cut-Off Voltage
|
10.8;X2/24V
|
|
Stand-By Current
|
＜8mA
|
|
Size And Weight
|
133*79*22mm/150g
|
|
Accessories
|
Solar Panel Parallel Head
|
Couple
|
|
Battery Series Line
|
Custom
|
|
Solar Panel Connection Line
|
Custom
|
|
Host Connection Line
|
Custom
|
|
Remarks: Accessories can be configured according to personal requirements.
|
Solar panel System Advantages:
- CE, ROHS, TUV approved.
- Advanced technology, strict quality control system.
- High conversion efficiency, high-transmission rate.
- Energy saving, environmental-friendly.
- Easy installation, safe operation, free maintenance.
- Long service life.

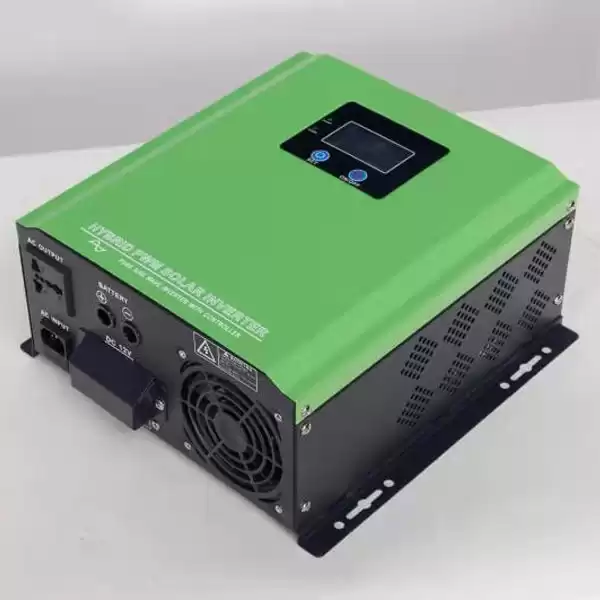

Low Frequency Pure Sine Wave Inverter
About US
Mailely, as a professional solar power system manufacturer and supplier
We are focus on solar power inverter, solar panels, solar charging controller, solar lighting & complete set of solar power system development and manufacturing.
Our company are ISO 9001:2008 certified and our products are CE, TUV, VDE, JET certified.
Mailely Solar devote ourselves to develop the easy-use solar products and whole solar system solutions. Those easy-use solar power system kits to power up the rural and remote areas in the world.
If you are interests in our products and service. Pls contact us immediately.
