Siboly Evaporative Air Cooler Principle
Siboly evaporative air cooler is a device that cools air through the evaporation of water. Evaporative cooling differs from typical air conditioning systems which use vapor-compression or absorption refrigeration cycles. Evaporative cooling works by employing water's large enthalpy of vaporization. The temperature of dry air can be dropped significantly through the phase transition of liquid water to water vapor (evaporation), which can cool air using much less energy than refrigeration. In extremely dry climates, evaporative cooling of air has the added benefit of conditioning the air with more moisture for the comfort of building occupants.
Product Introduction
|
Airflow(m3h)
|
18000
|
Dimension (mm)
|
1120*750*1550
|
Net Weight (kg)
|
45
|
Power Supply (V/Hz)
|
220v/50hz
|
Power Consumption (kw)
|
0.55
|
Water Capacity (L)
|
50
|
Water Consumption (L)
|
10-12 per hour
|
Effective Area (m2)
|
100-150
|
Controller
|
LCD-panel+Remote
|
Auto Fan Type
|
Axial
|
Evaporation Efficiency
|
85%
|

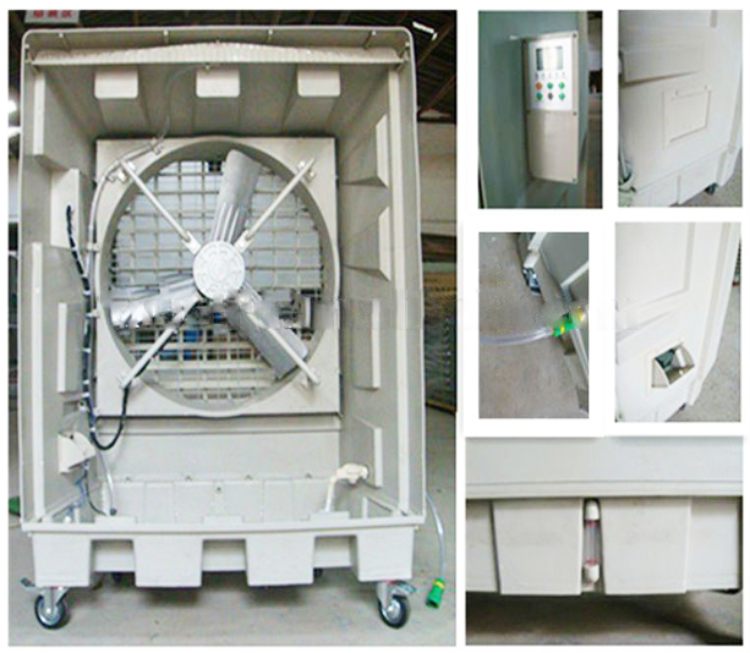

Product Details
The high quanlity motor with metal blades ,auto-water shortage protection, overload, over voltage protection
Remote control and wheel,XZ13-18Y air cooler with remote control, operating range of about 30m. The product also has 4 large wheels so it is easy to move.
Large water tank,The product has a water tank up to 50L, easily add water. In particular, the water tank of the XZ13-18Y is removable and has a water level meter that makes it easy to see the amount of water in the tank.
Product Main Features
1. New type blade,subjected to the tests of dynamic balance,ensures generation of a lot air volume at the reasonable blade angle and a good noise control
2. National patent aluminum alloy shutters with particular pneumatic opening and shutting mechanism,adopting the inclined belt to drive, ensure the shutters can open and shut fully to protect against wind or rain and dust.
3. Fan is subject to eight strict quality testing procedures—noise, vibration, dynamic balance,static balance, rotary concentric performance, blade rotating speed, overall efficiency test prior to shipment.
4.Can be combined with cooling pads to form vertical ventilating and cooling system, which is the most inexpensive and effective cooling measure in summer
5. The cooling fans we produce are widely used in industrial workshop,civil field or agricultural fields…Our products enjoy high reputation at home and abroad and sell well in China, Southeastern Asia, Africa,Mid East,USA,Europe,etc.
Any interest, please contact me.
