Portable Standing Seam Roof Crimping Curved Machine YX50-416

Portable Standing Seam Roof Crimping Curved Machine is the second continue machine of standing seam roof roll forming machine, it is for crimping the standing seam roof into crimping curved shape for steel construction building used.


  • Encoder BrandOmron
  • PLC BrandSimenz
  • Driving Motor4KW
  • Covered Width416mm
  • Material Width305-610mm
  • Material Thickness0.6-1.0mm

Each roll forming machines for portable standing seam roof, for crimping shapes and curving shapes are available for custom manufacture.


Product Name: Portable Standing Seam Roof Crimping Curved Machine YX50-416

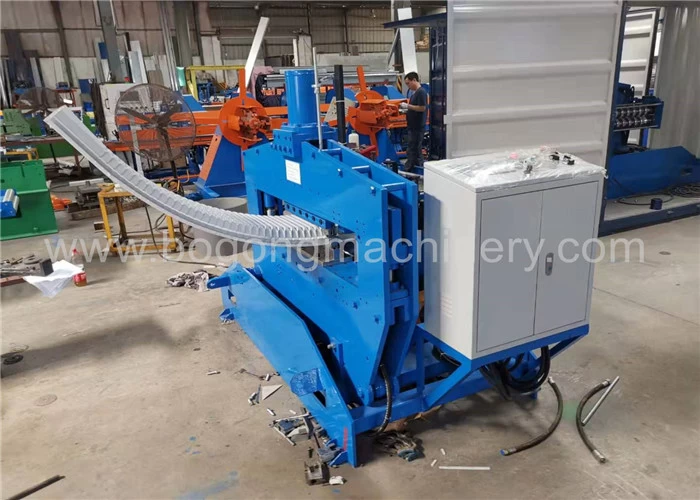

This Portable Standing Seam Roof Crimping Curved Machine YX50-416  both can crimping straight type standing seam roof and tapered standing seam roof.

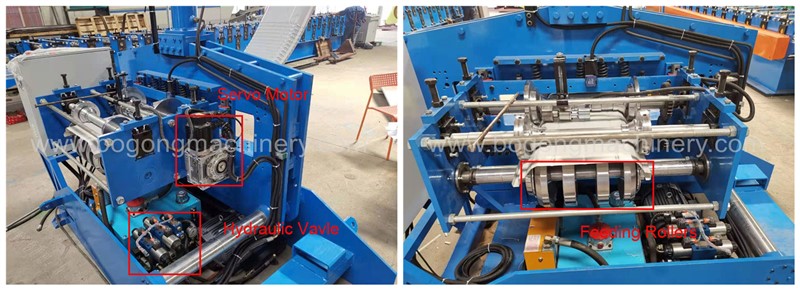

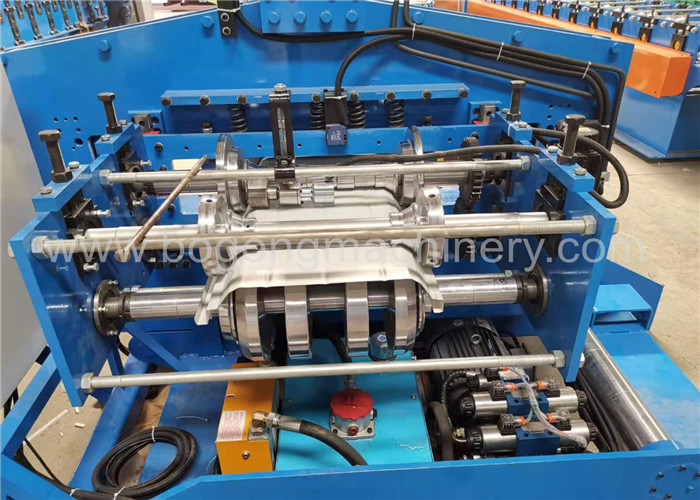

There are on servo motor for feeding roof sheet inside, it is good for control the crimping precision. All the hydraulic valves will be famous brand of YUKEN. Before crimping mold, there are two stations feeding rollers for standing seam roof. It is used for leading material in and ensure the feeding direction is straight and correct.


standing seam metal crimper machine

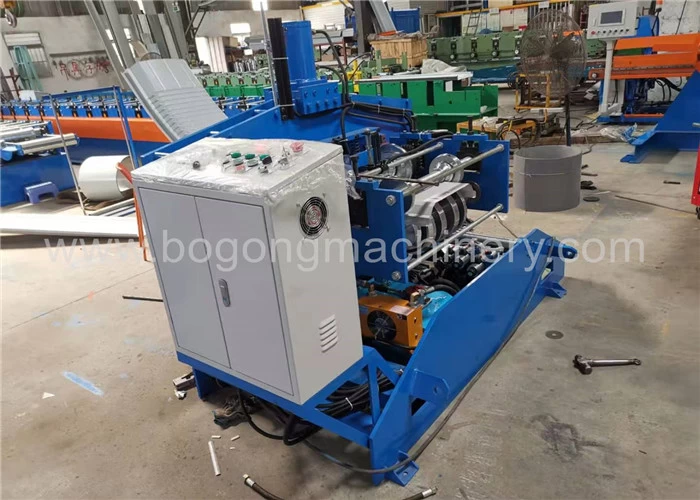

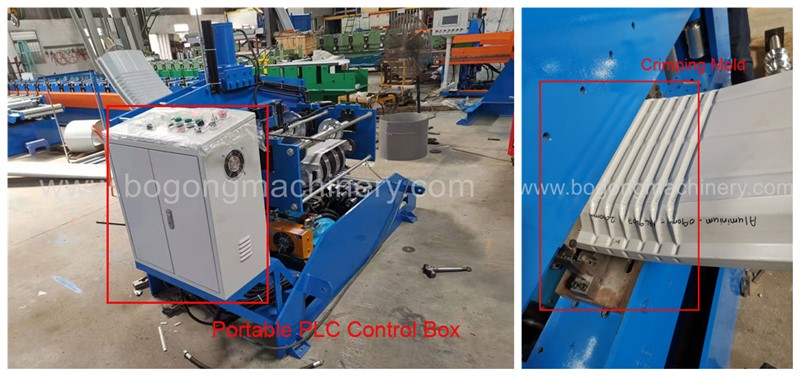

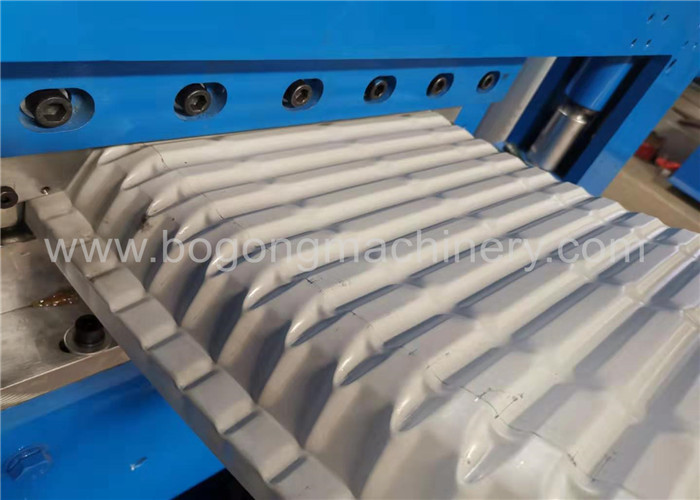

Due to this is the small crimping machine for standing seam roof, we make portable PLC control box also, we have welded one steel frame for supporting the PLC control system. All main electric control parts are Simenz brand, good quality for long working life. See the crimping mold, it is whole alone mold not any break, it can ensure the bottom place of crimped roof is smooth and beautiful.

crimping machine for standing seam roof

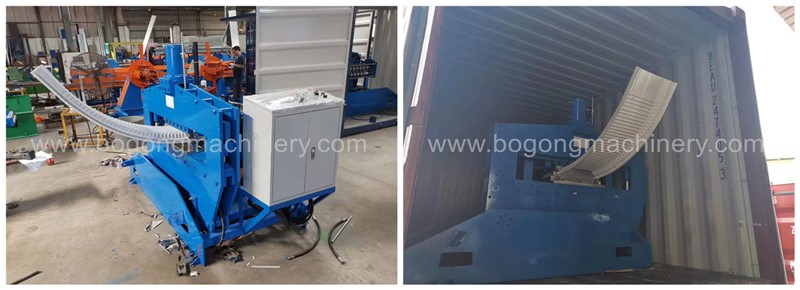

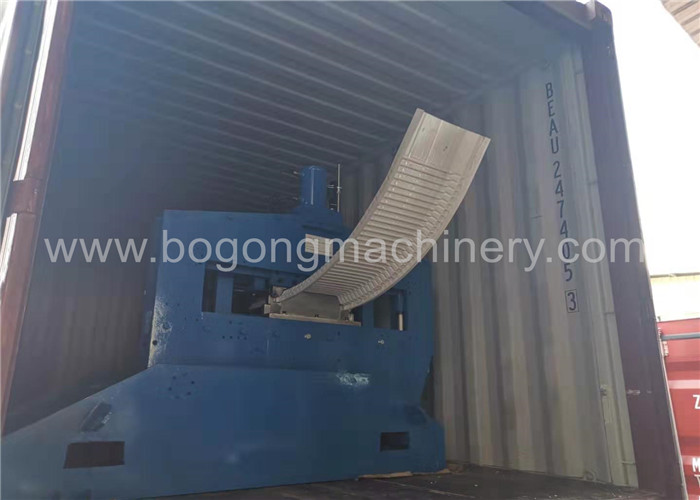

This Portable Standing Seam Roof Crimping Curved Machine normally is working together with portable standing seam roof roll forming machine at project site, so it is also put into small steel box inside, even can be put inside 20ft container. Where the project need, take these machines to buy truck to the project site, it is convenient for owner.

China standing seam roof crimper


Technical Parameters


Parameters

Specification

Voltage

380V/50HZ/3PH/or customized

Driving Motor

4KW

Servo Motor

2KW

Working Speed

6-15m/min

Thickness for Steel

0.7-1.0mm

Shaft Diameter

65mm

Effective Width

416mm

Feeding Width

305~610mm

PLC Cabinet

Simenz

Encoder

Omron

Sprocket Wheel

45 steel high-frequencies quench

Cut-off System

Post cutting, no waste cutting

Cutting Blade Material

Cr12 steel

Machine Frame Material

Fine welded structural steel;

Roofing Material

PPGI, GI steel G330-550

Painted Color

Blue+Orange Or Customization


Standing Seam Roof Design

a. aluminum coil: working thickness: 0.7mm-1.0mm, 0.93mm thickness is for inspection, common use, Tensile strength: 220Mpa, Yield strength: 210Mpa;


b. Pre-painted coil: Job thickness: 0.5mm-0.9mm, 0.5mm thickness is for inspection,common use, Grade: ASTM A653M CSB Z180



galvanized standing seam roll forming machine

custom sheet roof standing seam roll forming machine
