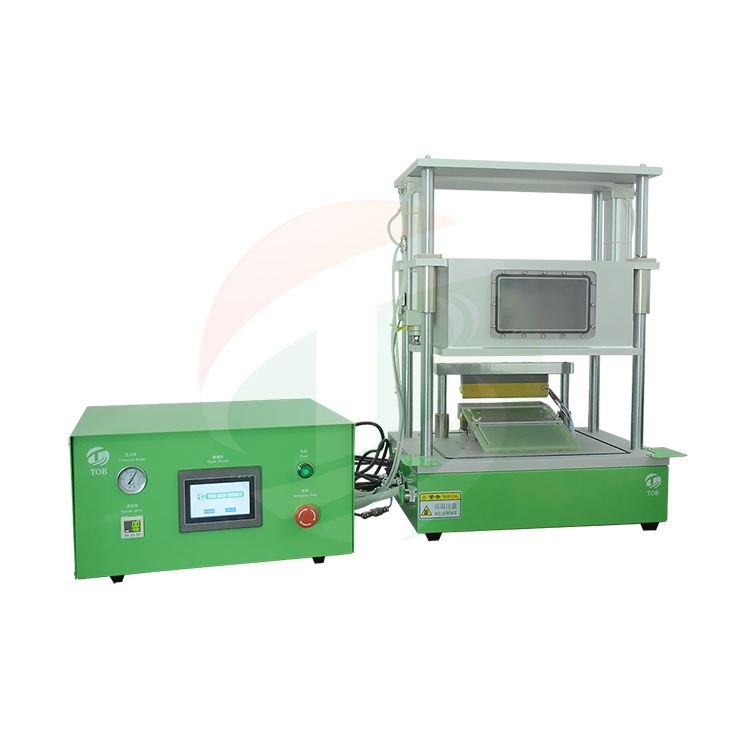

Pouch Battery Electrolyte Diffusion Chamber And Pre-sealing All-in-one Machine For Li-ion Battery Research
SPECIFICATIONS
TOB-YF200-JZ Vacuum diffusion and pre-sealing all-in-one
machine is designed for professional lithium-ion battery research. It is mainly
used to remove air from the electrolyte under vacuum conditions after the
electrolyte is injected into the polymerized lithium ion battery/cylindrical
battery, and finally forms a seal. It is easy to operate and suitable for all
types of batteries (especially soft bag battery and cylinder battery). Unique
periods of vacuum control system allows electrolyte to thoroughly saturate the
electrodes to ensure the best battery charging-discharging performance.
TOB-YF200-JZ
combines the functions of vacuum diffusion chamber TOB-JZ300 and a pre-sealing
machine TOB-YF200,It can save glove box space.
|
Model
|
TOB-YF200-JZ
|
|
Power Supply
|
110-240 V, Single Phase 50/60Hz
|
|
Max. Power
|
500W
|
|
Warranty
|
One year limited with life time support
|
|
Compress Air
|
0.5-0.8Mpa
|
|
Chamber Body
|
12mm thick Aluminum case with observation window
|
|
Vacuum Level
|
Vacuum condition remains stable,
vacuum degree and vacuum circulation times can be set independently
Vacuum mode (once or twice) can be selected
Easy program setting for specific vacuum condition
Vacuum degree can up to -90Kpa～0, with good sealing,
can guarantee 1 minute air leakage is not more than 0.01 MPa
|
|
Vacuum Condition Hold Time
|
0 - 9999 sec, adjustable
|
|
Sealing advantage
|
1 Sealing Head adopts copper material, good heat transfer effect,

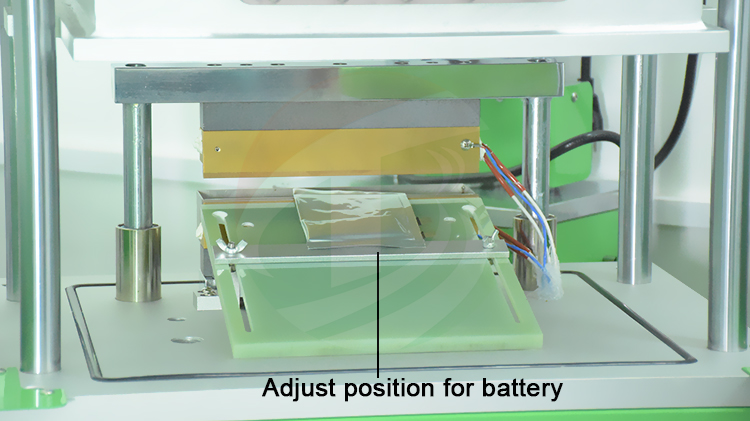

2 With adjust plate, Can apply to different specifications battery, and the adjusting easily
|
|
Sealing head TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±2℃
|
|
Heat sealing pressure
|
0～7Kg/cm2, adjustable
|
|
Hot Sealing Time
|
0～99s, adjustable
|
|
Sealing Blade
|
Hard type (without rubber, only for Al case sealing,
not suitable for sealing case with tab in between)
|
|
Sealing width
|
5mm, customized
|
|
Sealing head length
|
200mm
|
Suitable battery size
(Inner size)
|
180*120*10mm
|
|
Dimensions
|
Work box: 570*420*750mm
Control Unit: 460*480*250mm
Inner Chamber Size：350*285*165mm
|
|
Net weight
|
About 76kg
|

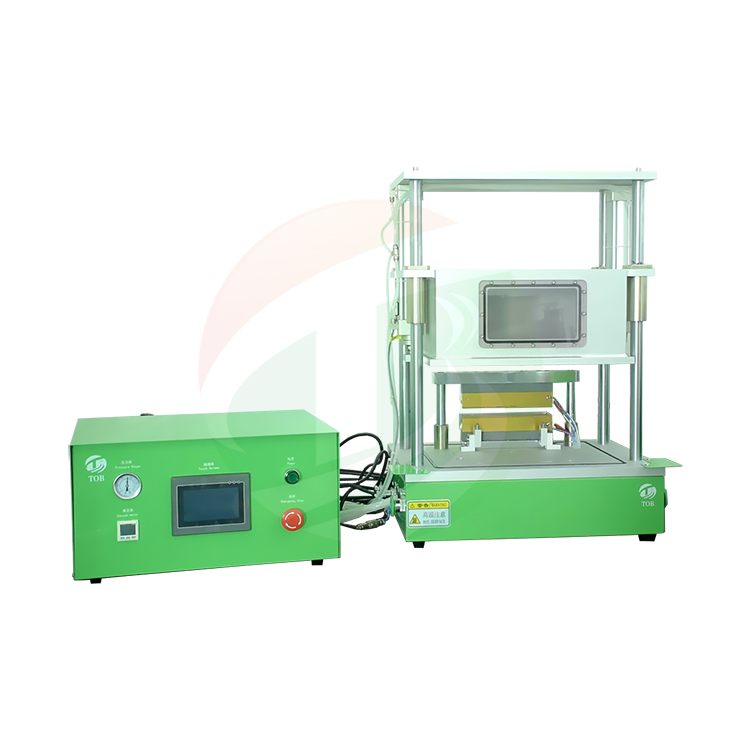

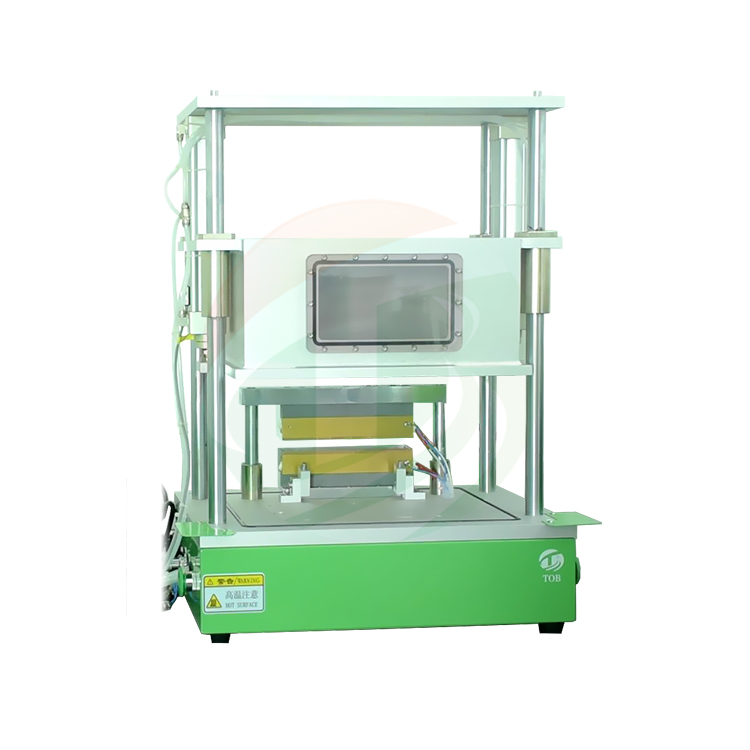

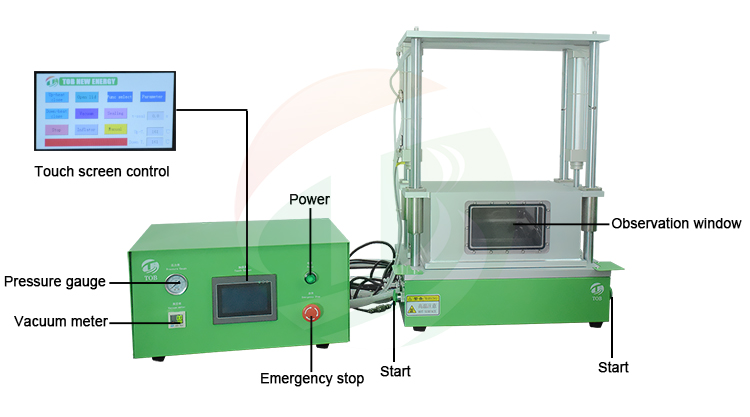

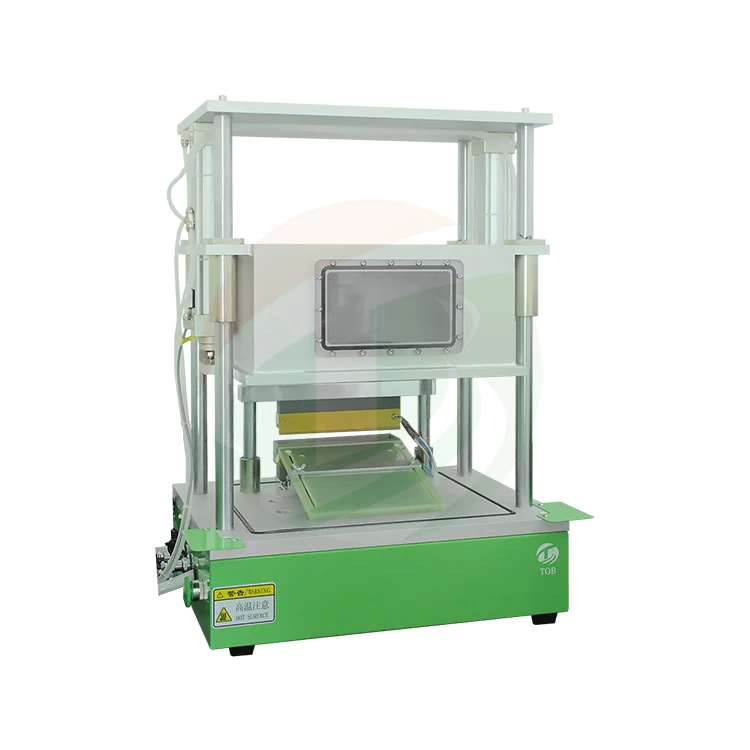

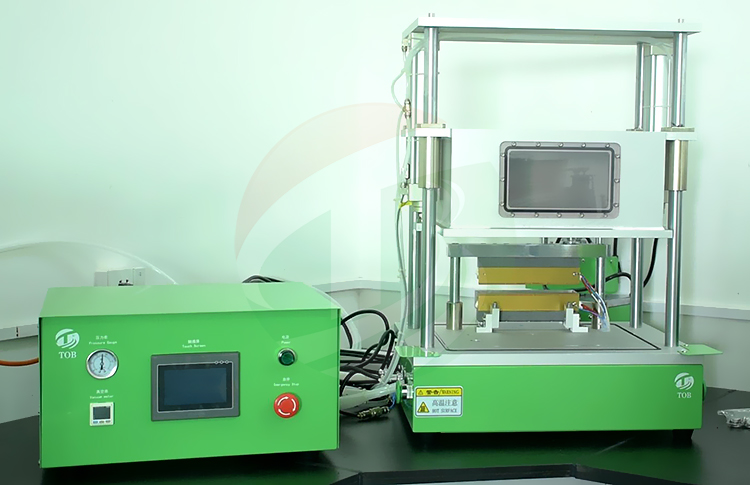

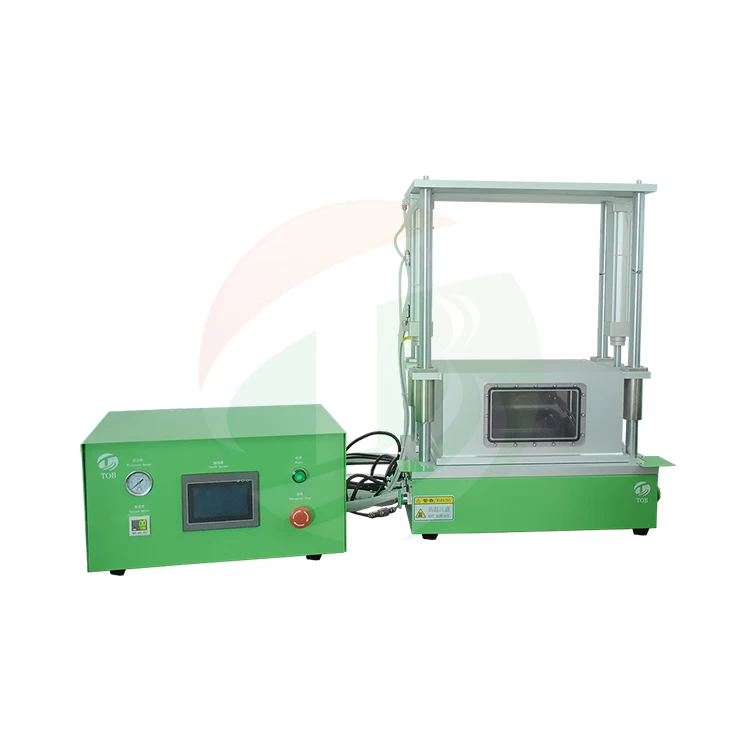

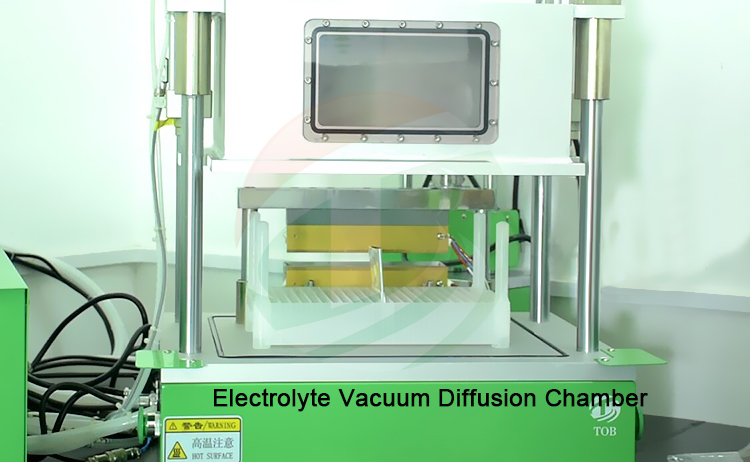

PRODUCT DISPLAY
