Pouch Cell Case Forming Machine

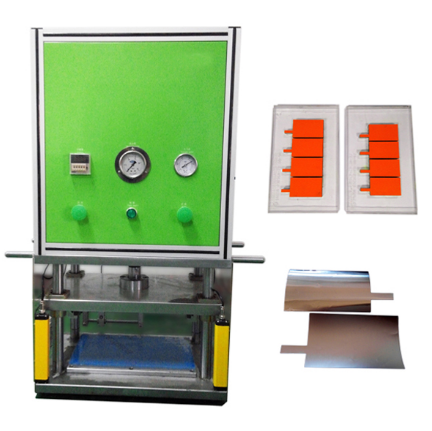

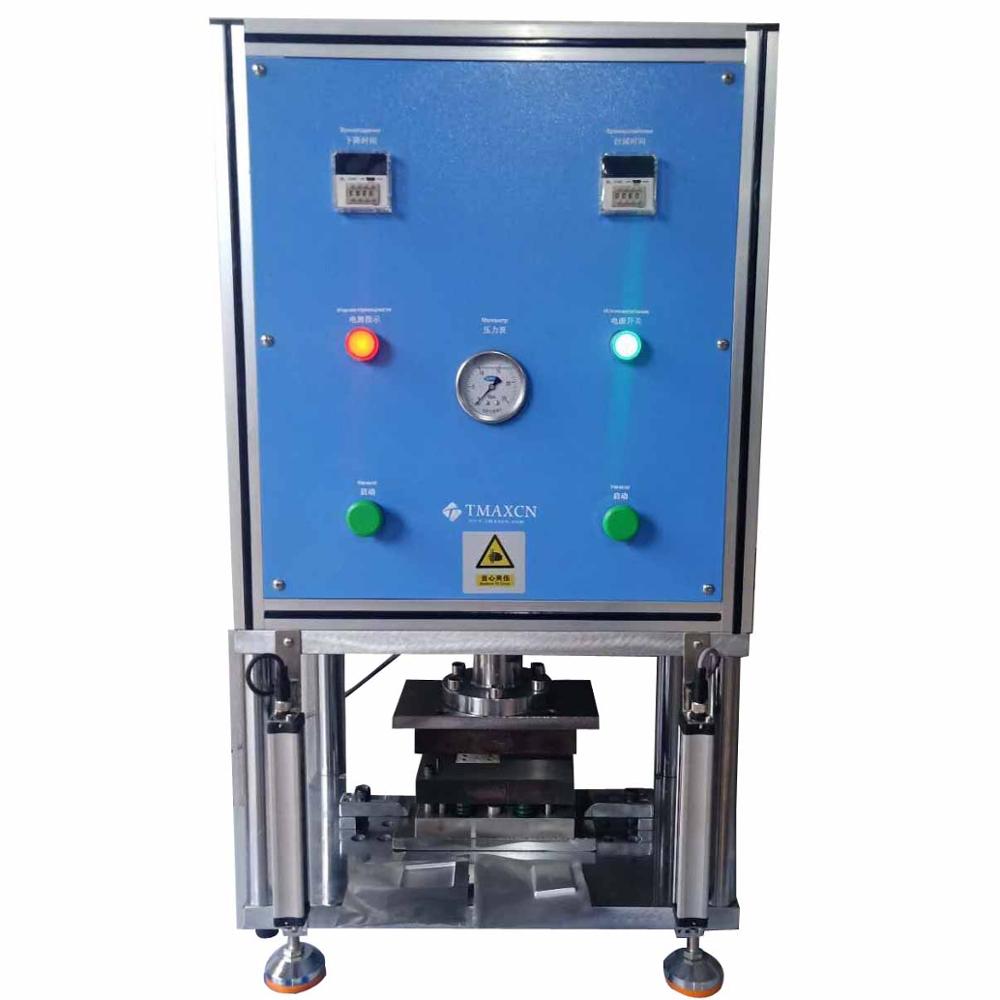

TMAX-SCK200 is a CE Certified pouch cell forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, adjustable depth (spacers is included in standard package) to directly match the electrodes cut by electrode cutting machine.

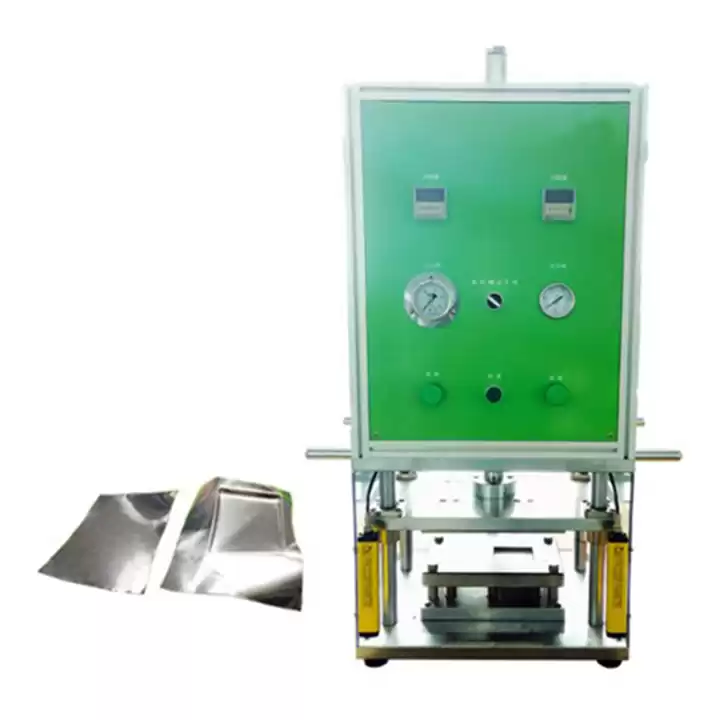

1 TMAX-SCK200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the of making pouch cell batteries.

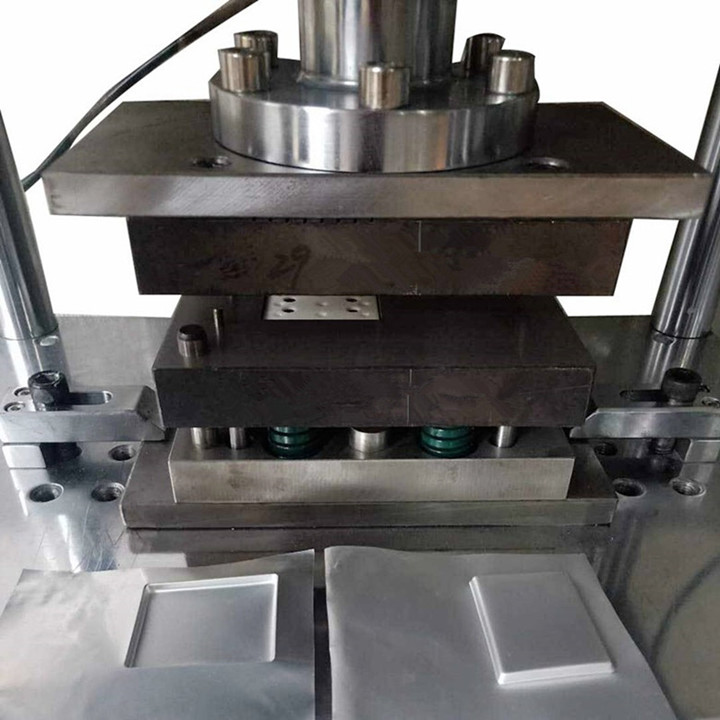

2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.

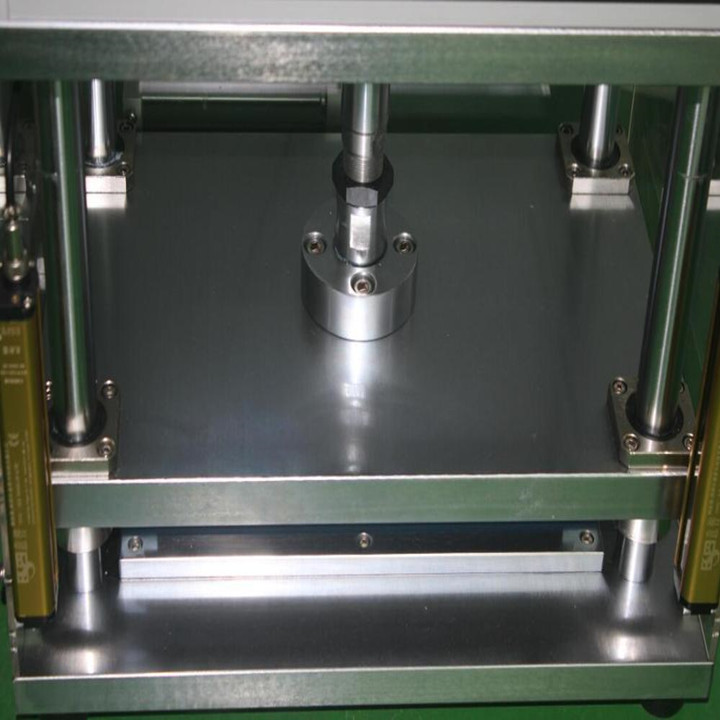

3 This lab aluminum laminated film pouch forming machine is designed with simple Spring mold with a customized size, which is more suitable for lab research.

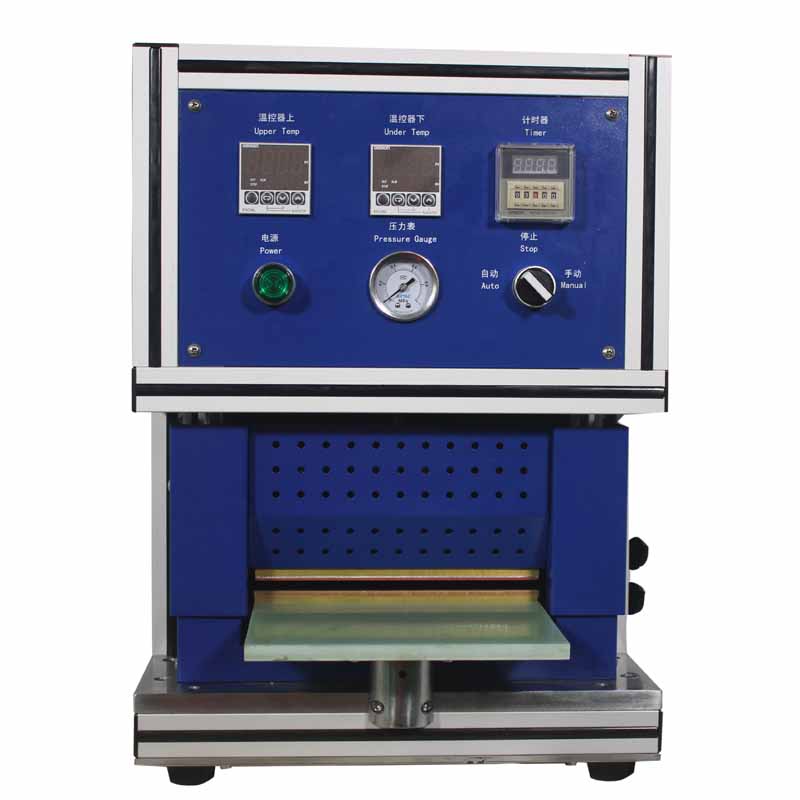

If you need a bench top mini forming machine, please choose the TMAX-SCK100 model.
|
Model
|
Lab Polymer Battery Pouch Forming Machine
TMAX-SCK200
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
100W
|
|
Warranty
|
Two years limited warranty with lifetime support
|
|
Advantages
|
1 Structure of guide pin, slide up and down smoothly with
high precision
2 Change mould, adjust tensile depth simply, quickly
3 Use screen and casing protection, guarantee safety
4 High strength of chrome steel and aluminum alloy,
surface roasts the paint processing through environmental
protection electroplating
|
|
Suitable aluminum
film thickness
|
0.1-0.2mm
|
|
Suitable mold size
|
Customized as customer's request, with punching depth ≤24mm
|
|
Max. Cup Depth
|
Single pit punching depth ≤24mm
|
|
Output
|
200-400EA/H
|
|
Output pressure
|
5T
|
|
Air source
|
0.5-0.7MPa
|
|
Mold materials
|
SS136 Die steel
|
|
Dimension
(L*W*H)
|
460*320*925mm
|
|
Weight
|
About 130kg
|
|
Recommendation
|
For the pouch cell assembly, we also recommend you the following items:

Forming machine Hot sealer with tab

Vacuuming sealer Ultrasonic tab welder

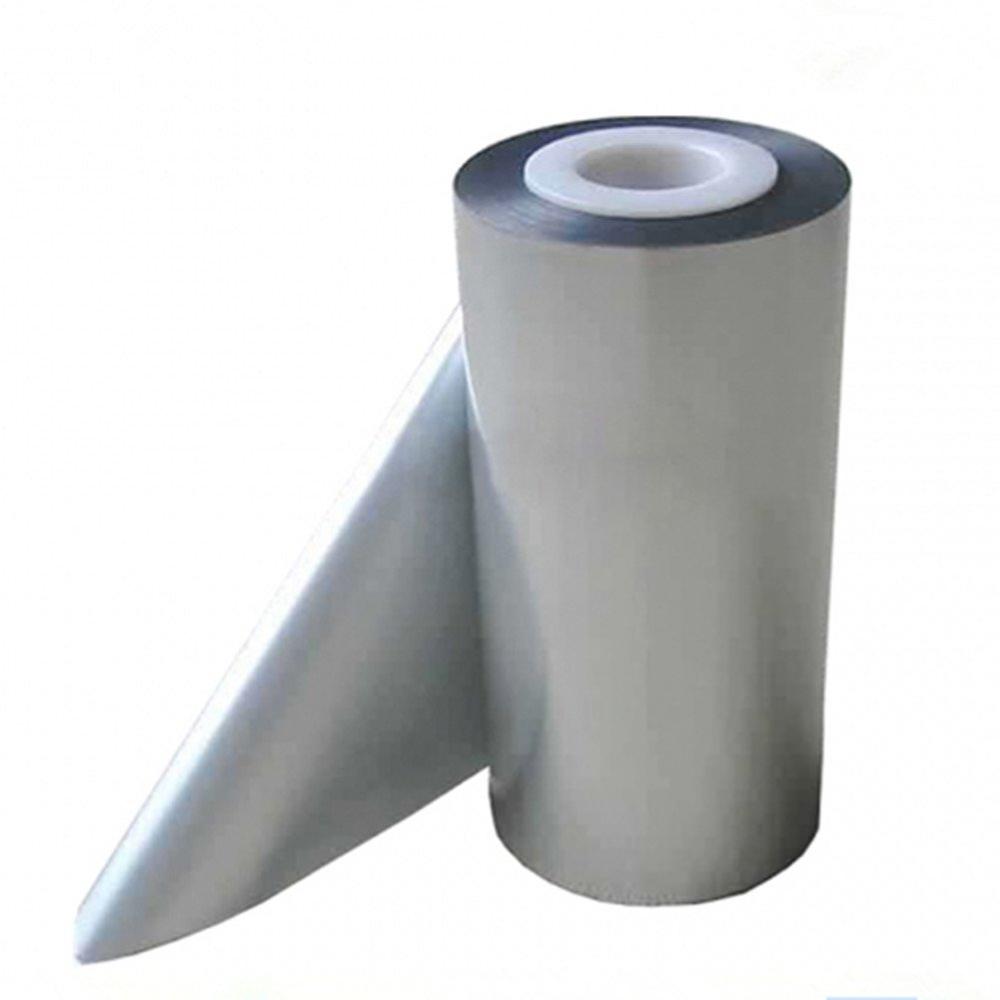

Die Cutter Aluminum Laminated Film
|
