Manual Cutting Machine For Lithium Polymer Battery Pouch Edge Cutting Machine
SPECIFICATIONS
1 Battery edge cutting machine is mainly used for lithium polymer battery pouch edge trimming before edge folding.
2 It can also be used for aluminum laminated film pouch trimming after pouch forming process
3 TOB-JD-QB System manual cutting machine has a adjustable cutting width for 2-8mm, with cutting length 200mm, 300mm or customized requirement, It is mainly used for lithium polymer battery research and production line.
|
Model
|
TOB-JD-QB30
|
|
Voltage supply
|
AC110V/220V, 50/60HZ
|
|
Power
|
500w
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Edge cutting length
|
300mm
|
|
Margin width
|
2.5-8mm
|
|
Air supply
|
0.6-0.8MPa
|
|
Weight
|
40kg
|

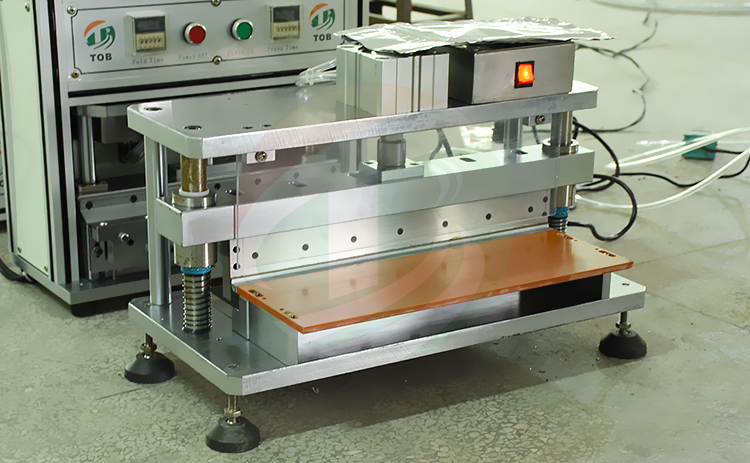

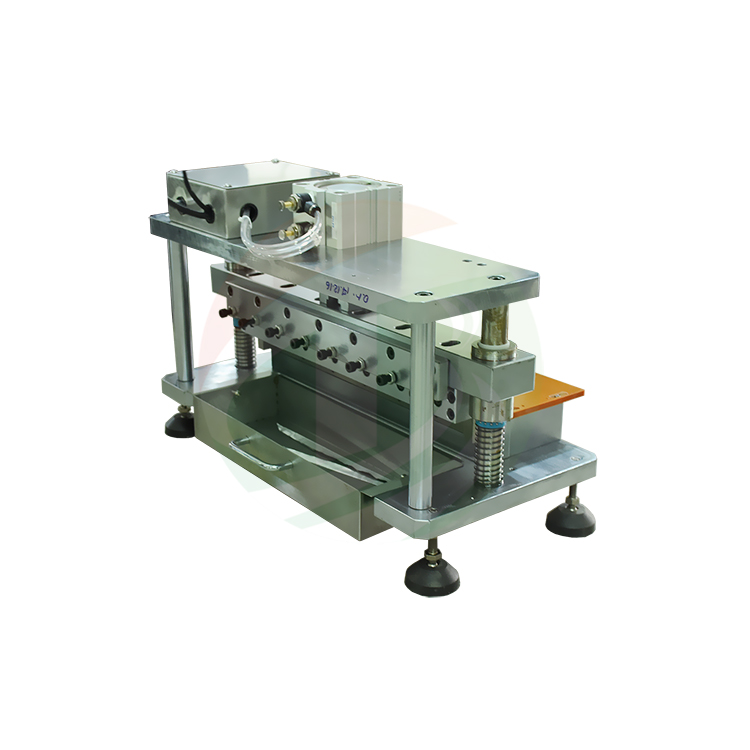

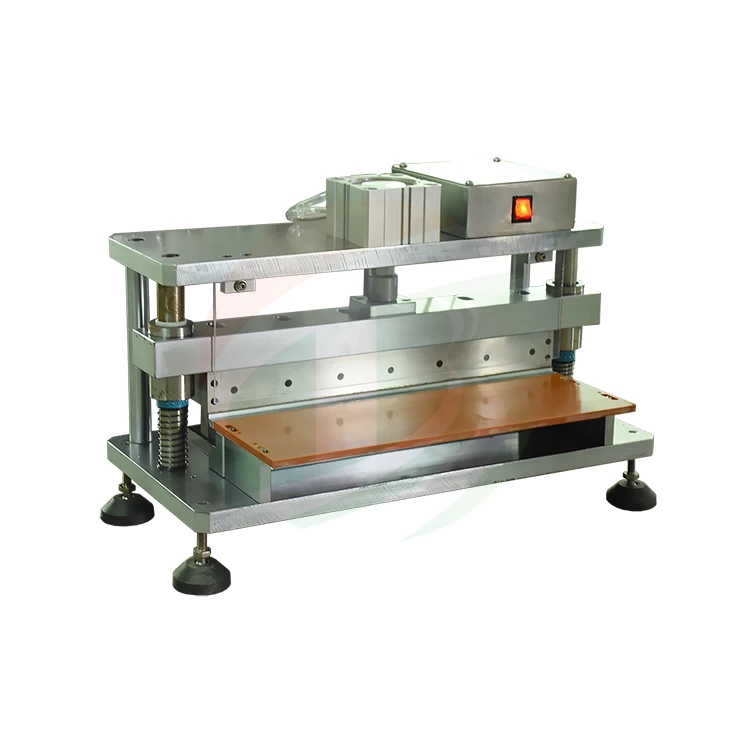

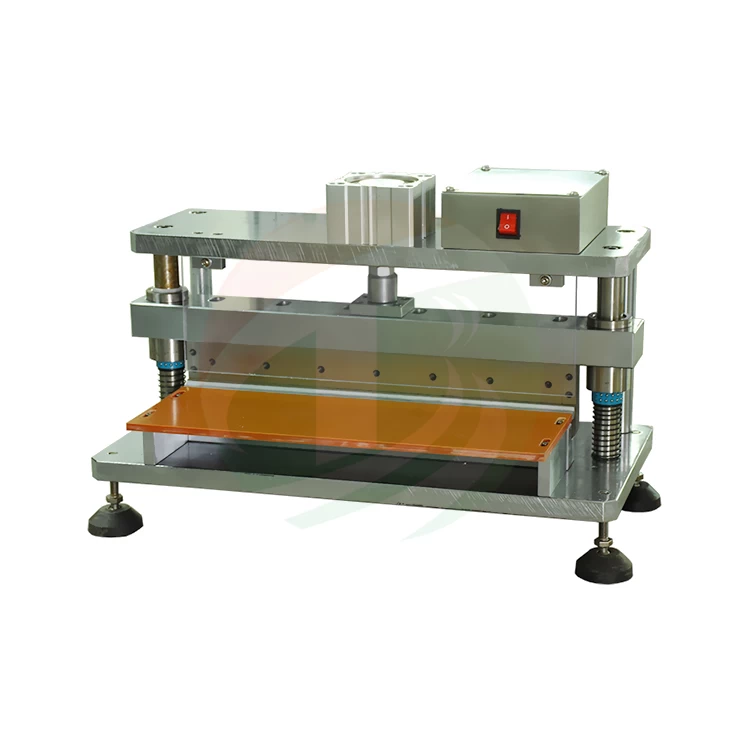

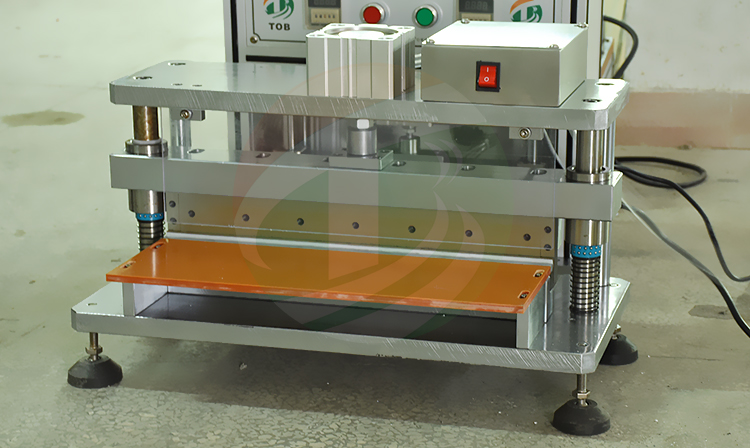

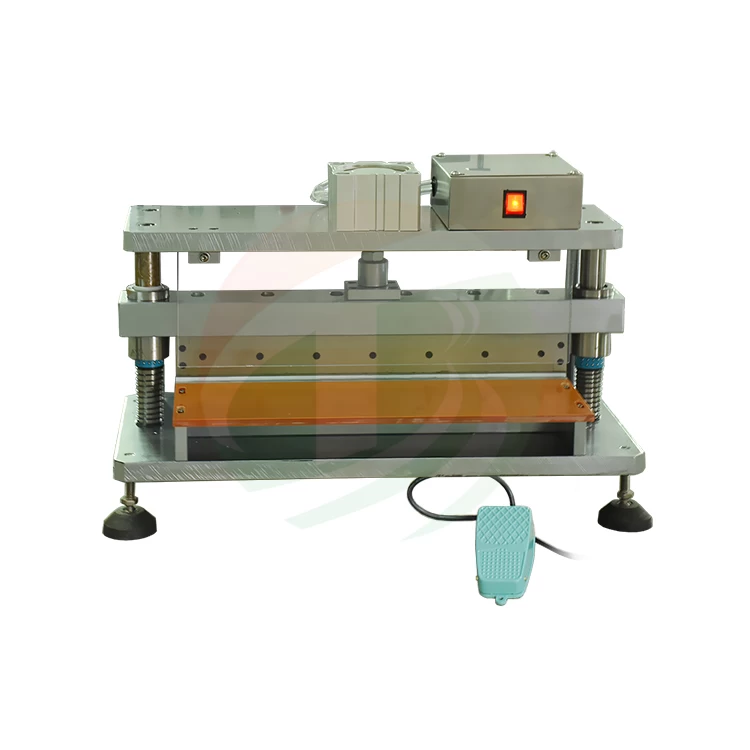

Product Display
