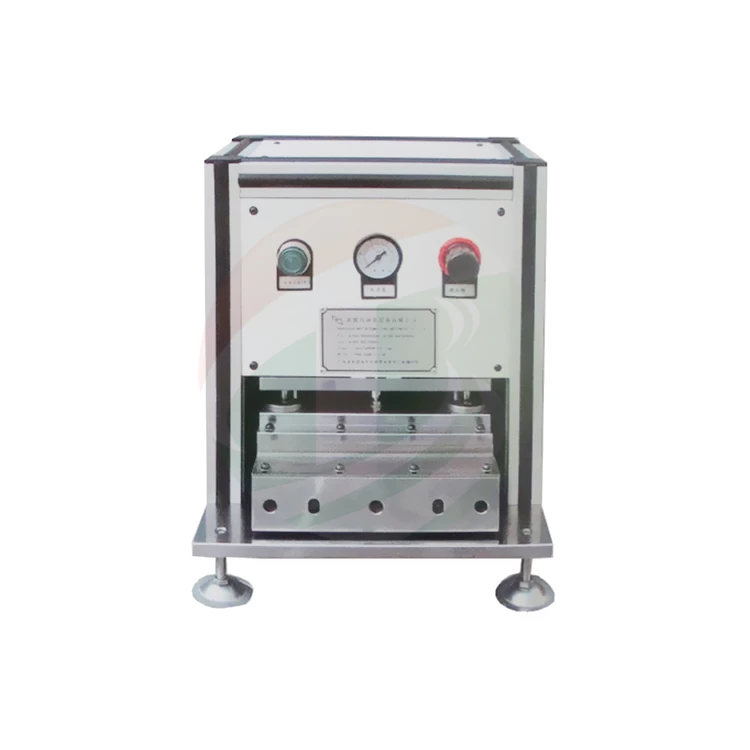

Manual Folding Machine For Lithium Polymer Battery Pouch Edge Crimping Machine
SPECIFICATIONS
1 Battery edge Folding machine is mainly used for lithium polymer battery pouch edge crimping in order to get good appearance for the battery and avoid damage by the sharp edge.
2 TOB-MY-ZB System manual fold machine has a adjustable crimping width for 1-3mm, with folding length 200mm, 300mm or customized requirement, It is mainly used for lithium polymer battery research and production line.
|
Model
|
TOB-MY-ZB20
|
TOB-MY-ZB30
|
|
Voltage supply
|
AC110V/220V, 50/60HZ
|
|
Power
|
50w
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Edge folding length
|
200mm
|
300mm
|
|
Folding width
|
1-3mm,adjustable
|
|
Speed
|
500 times/H
|
|
Air supply
|
0.6-0.8MPa
|
|
Dimension (L*W*H)
|
300*300*460mm
|
400*350*460mm
|
|
Weight
|
30kg
|
45kg
|
