Pouch Cell Electrode Die Cutter Cutting Machine with Customizable Die Size
1.Speedy,efficiently
2.for current collector tabs
3.One stop serives,full solutions

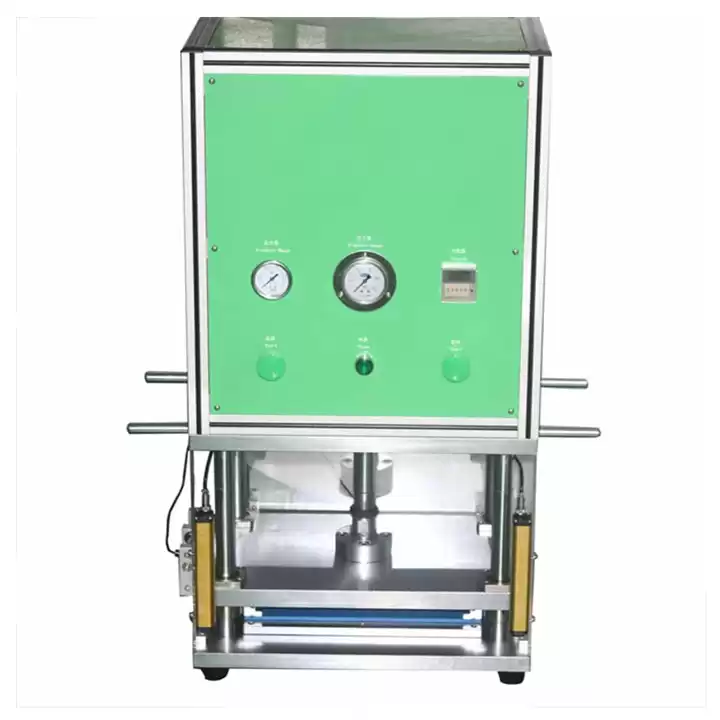

TMAX-MQ300 is a CE Certified semi-automatic electrode die cutter. It is a necessary tool in the production
line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
|
Model
|
TMAX-MQ300
|
|
Working Table Area
|
300mm(L) x 250mm(W) OR 400mm(L) x 400mm(W)
|
|
Die Set Dimensions
|
81mm (L) x 49mm (W) with current collect included
|
|
Working Voltage
|
220V 50/Hz, single phase
|
|
Max. Power Consumption
|
10W
|
|

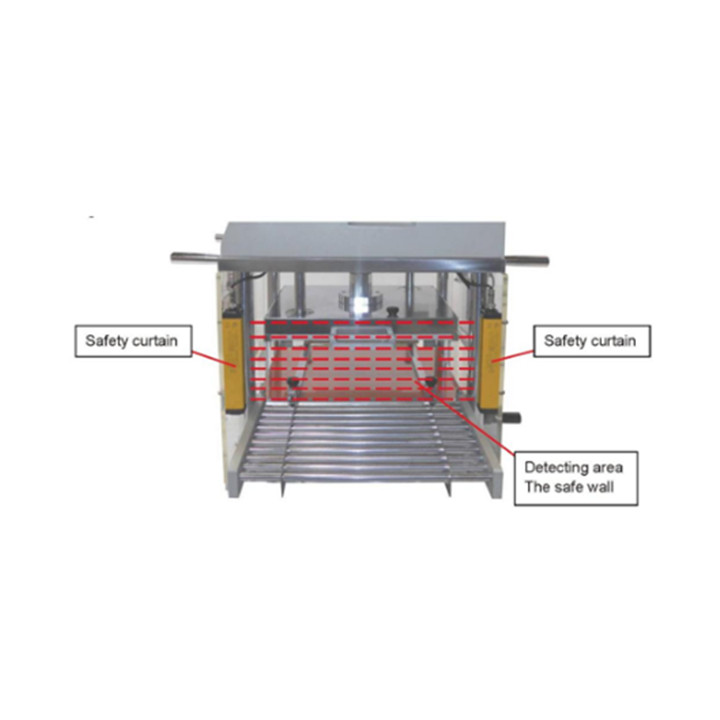

Safety Sensor
|
Built in IR sensor (Safety Curtain) to protect
against hand injuires during electrode feeding
|
|
Cutting Accuracy
|
±0.1mm
|
|
Air Cylinder
|
3 tons Max. pressure
|
|
Tensile Cylinder
|
0.15 tons pressure
|
|
Feeding
|
Manually
|
|
Production Yield
|
800 - 2000 pieces of electrodes per hour
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Air Pressure
|
recommend 60 psi (Air compressor is not included)
|
|
Product Dimensions
|
550mm(L) x 450mm(W) x 900mm(H)
|
|
Net Weight
|
120kg (265 lbs)
|
|

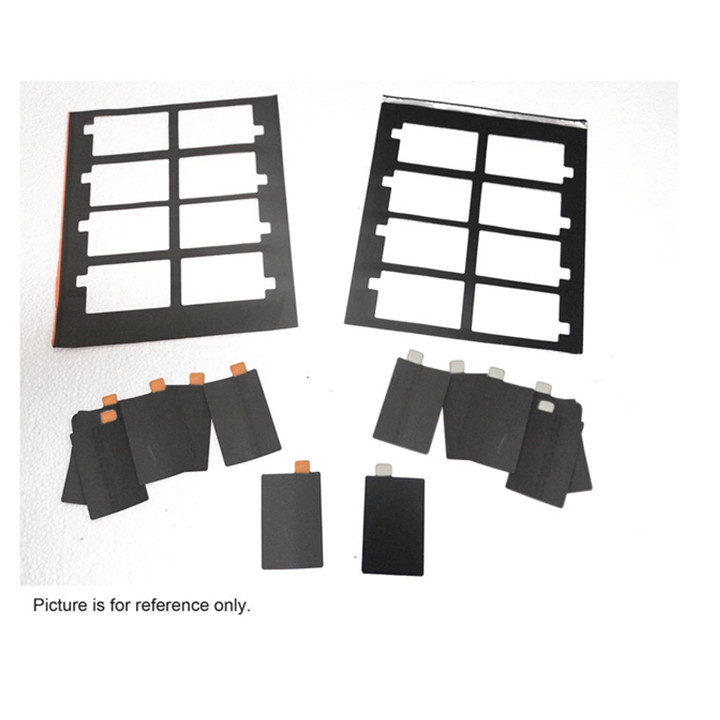

Apply
|
for pouch cell electrode sheet
|
