Pouch Cell Electrode Separator Lamination Stacker Stacking Machine For Pouch Cell Fabrication

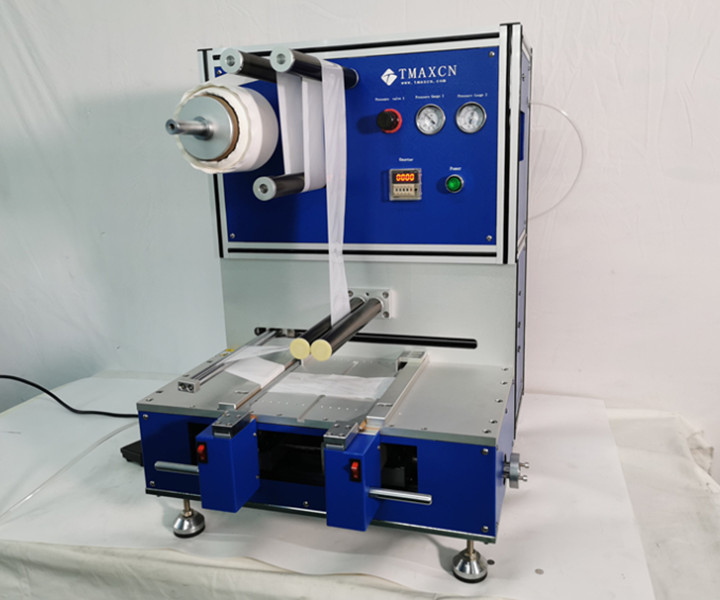

TMAX-TCH-DPA is a desktop semi-auto stacking machine with advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between. It is more precise and consistent.

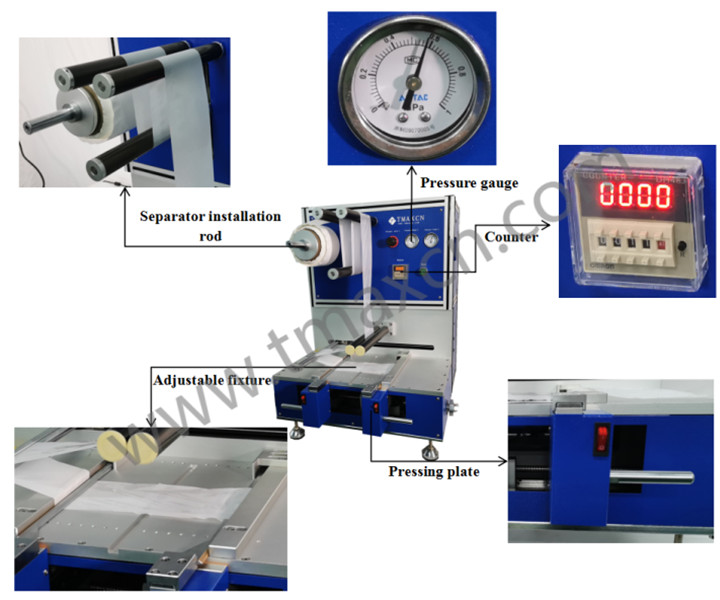

*The adjustment, operation and maintenance of the machine are simple and easy;
*It can be used in a wide range of laminations;
*Semi automatic lamination and balance tension control system
*Automatic counting and zeroing function
*Automatically maintain the last parameter state function after power failure and non use
*The whole machine is suitable for a wide range of battery sizes
*Use foot switch to control cylinder action
*The adjustment, operation and maintenance of the machine are simple and easy
*High efficiency with digital timer
*Table type, can be placed on the ordinary desktop, exquisite and beautiful appearance;
|
Working Voltage
|
AC220V/110V 50/60Hz
|
|
Power
|
200W
|
|
Applicable electrode size
|
200mm x 150mm Max.
44mm x 44mm Min.
Customizable as customer's request
|
|
Max. battery core thickness
|
Piled up thickness <12mm
|
|
Aligning accuracy
|
±0.5mm
|
|
Acceptable separator roll size
|
220mm O.D Max.
|
|

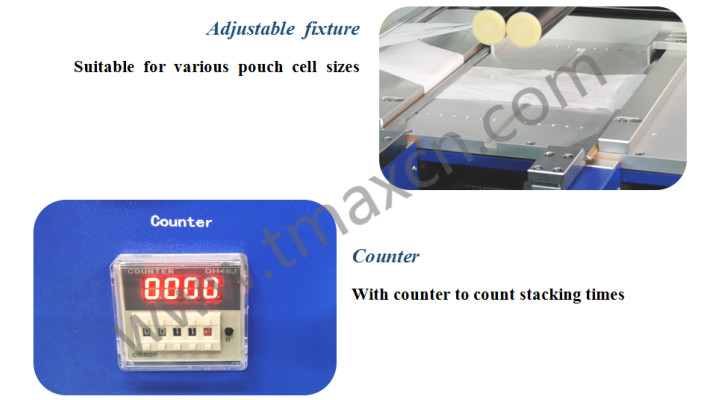

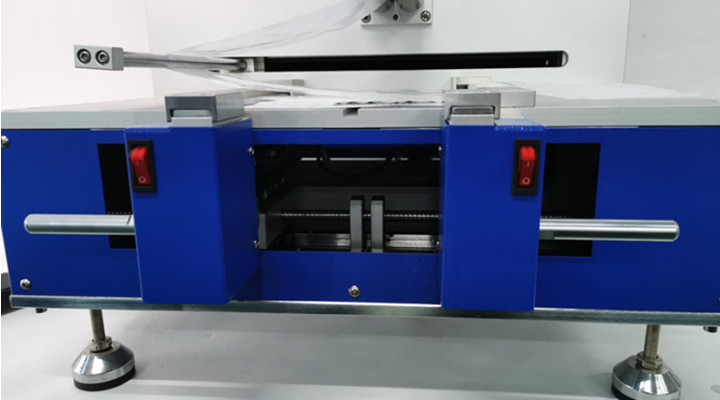

Slidable fixture
|
Two slidable fixtures ensure a compact, tight electrode stacking
|
|
Electrode tongs
|
One electrode tongs are included for easy electrode pick-up
|
|
Suggested Air Pressure
|
0.4~0.6MPa (Air compressor is not included in the standard package)
|
|
Product Dimensions
|
480mm(L) x 560mm(W) x 650mm(H)
|
|
Net Weight
|
55Kg
|
|
Compliance
|
CE Certified
|
|
Warranty
|
Two Years limited warranty with lifetime support
|
