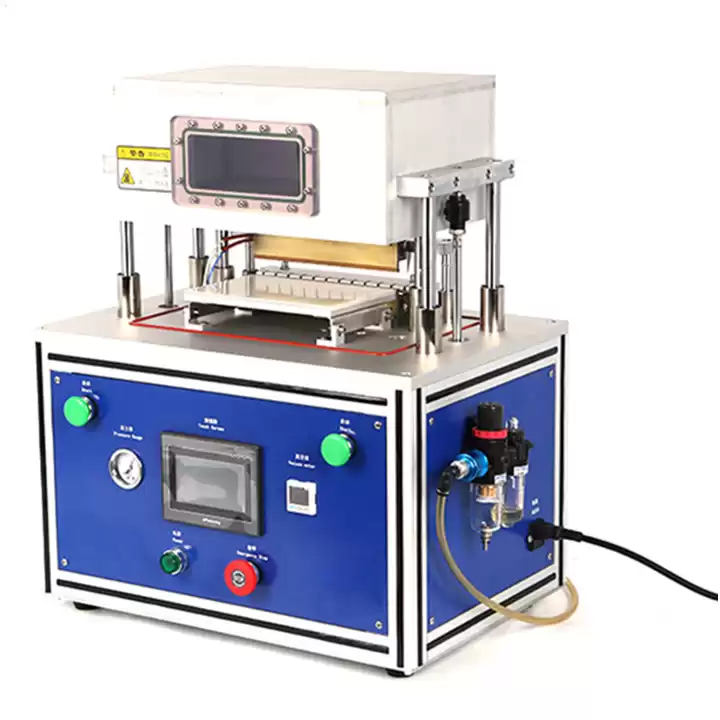

Pouch Cell Final Vacuum Sealing Sealer Machine For Pouch Cell Preparation
TMAX-FS200 is mainly used for pouch cell vacuuming and second sealing after electrolyte filling.

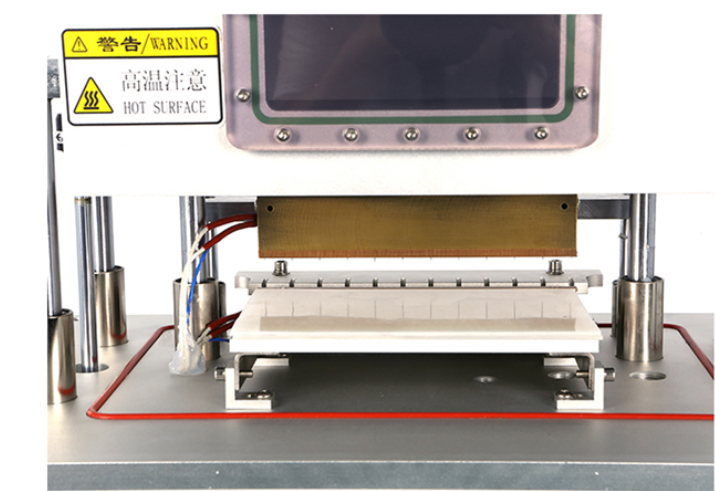

1.Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products.
2.The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters.
3.Upper and lower head with cylinder driven by two linear guide sleeve guide, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements
4.With automatic puncturing function, waste recovery unit.
5.Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements
6.Can be applied to different specifications of the product battery, and the adjustment is simple and convenient.
7.Easy to operate, beautiful appearance, small size, light weight.
|
Sealing head temperature
|
RT-250℃,adjustable
|
|
Temperature control precision
|
±1.5℃
|
|
Heat sealing pressure
|
0-7kg/cm2,adjustable
|
|
Heat sealing time
|
0-99 second,adjustable
|
|
Sealing width
|
5mm,adjustable
|
|
Vacuum degree
|
-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump)
|
|
Voltage
|
220V/50Hz
|
|
Power
|
300w heat pipe, heating when the power consumption of about 0.6KW
|
|
Compressed air source
|
0.5-0.7Mpa
|
|
Size
|
L500mm*W500mm*H700mm
|
|
Head parallelism
|
with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal
|
|
Air consumption
|
about 0.2L compressed gas / each time
|
|
Pneumatic working speed
|
≥ 180 times / h
|
|
Dimension
|
515mm * 350mm * 505mm
|
|
Weight
|
56kg
|
