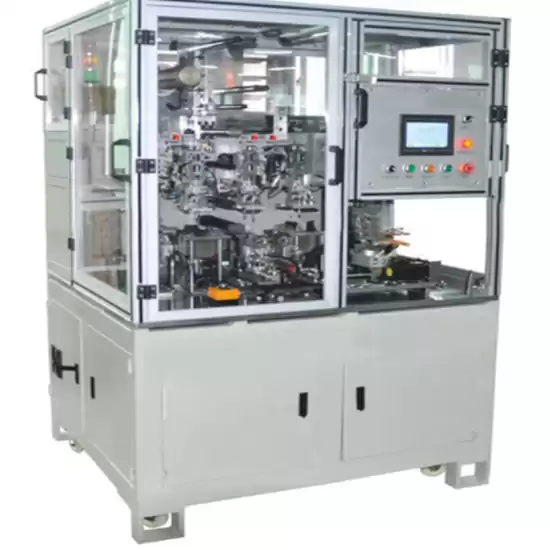

Pouch Cell Semi-Auto Lamination Stacking Machine For Lithium Ion Battery Making
Features
TMAX-DP-150 is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.
Advanced Features:
1 PLC Touch Screen Control with easy condition setting.
2 Continuous "Z" fashion stacking with a separator .
3 Auto electrode pick-up & stacking via vacuum suction manipulator.
4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.
5 Unreeling rotors for separator film feeding.
6 Auto-tension control for separator film delivery.
Specifications
|
Model
|
Semi auto stacking machine TMAX-DP-150
|
|
Suitable battery size
|
Thickness H (mm)
|
5-20
|
|
Width W (mm)
|
30-90
|
|
Length L (mm)
|
80-150
|
|
Tab length Q (mm)
|
Q≤20
|
|
Tab width (mm)
|
≤20
|
|
Technology parameter
|
Stacking speed
|
1.3-1.5s/pcs
|
|
Registration accuracy
|
±0.5mm
|
|
Stacking quantity
|
Can be set
|
|
Percent of pass
|
≥98%
|
|
Power
|
4kw
|
|
Weight
|
800kg
|
|
Dimension (L*W*H)
|
1250*1200*1850mm
|
|
Materials size
|
Electrode
|
Length : 80-150mm
Width : 30-90mm
Thickness : 0.07-0.25mm
|
|
Tab
|
Length : ≤20mm
Width : 8-20mm
|
|
Separator
|
Length : in roll
Width : 90-150mm
Thickness : 0.02-0.04mm
Inner diameter : φ76.2mm
Max out diameter : φ300
|
