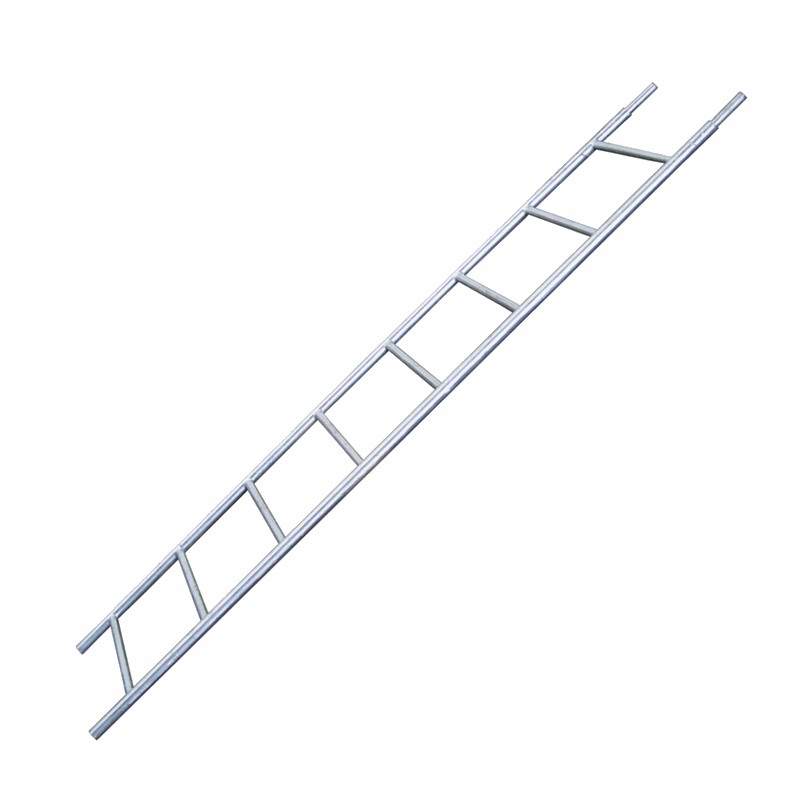

Steel Access Ladder 17" Wide
|
Code
|
Description
|

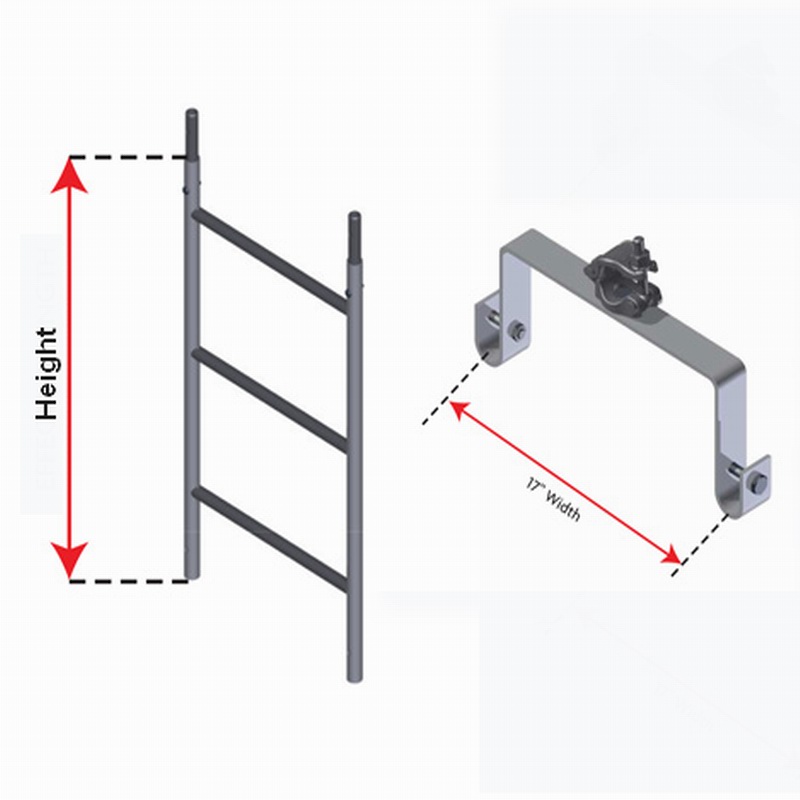

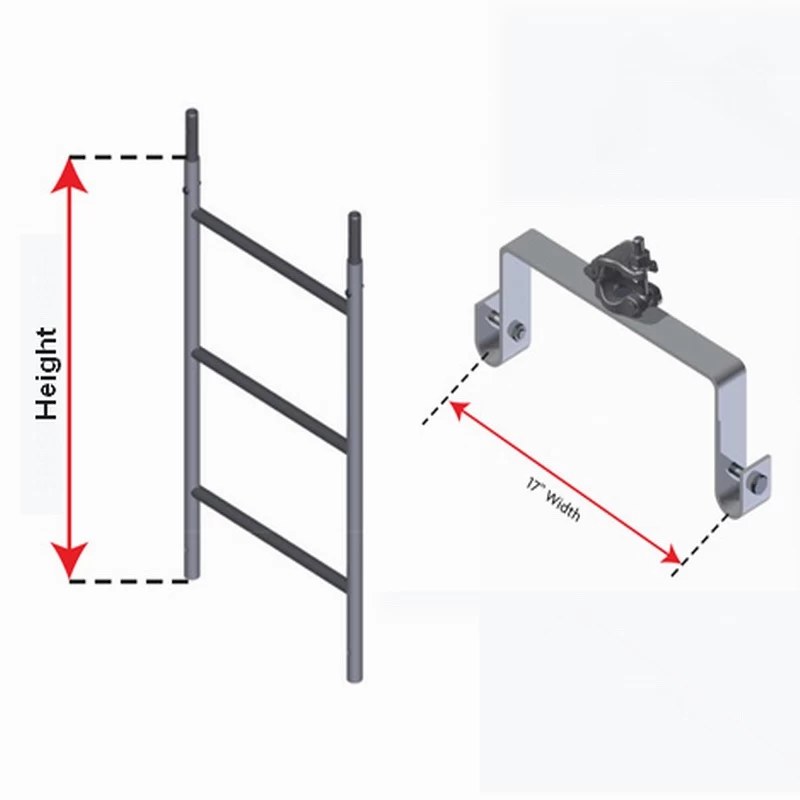

Ladder Height
|
Ladder Width
|
Weight(kg)
|
Weight(lbs)
|
|
AL.10
|
10' Access Ladder 17" wide
|
3048mm (10')
|
432mm (17")
|
13.65
|
30.10
|
|
AL.8
|
8' Access Ladder 17" wide
|
2438mm (8')
|
11.02
|
24.30
|
|
AL.7
|
7' Access Ladder 17" wide
|
2134mm (7')
|
9.70
|
21.39
|
|
AL.6
|
6' Access Ladder 17" wide
|
1829mm (6')
|
8.38
|
18.48
|
|
AL.5
|
5' Access Ladder 17" wide
|
1524mm (5')
|
7.07
|
15.59
|
|
AL.4
|
4' Access Ladder 17" wide
|
1219mm (4')
|
5.75
|
12.68
|
|
AL.3
|
3' Access Ladder 17" wide
|
914mm (3')
|
4.43
|
9.77
|
|
AL.BK17
|
Access Ladder Bracket 17" wide
|
|
3.07
|
6.77
|
Product Features:

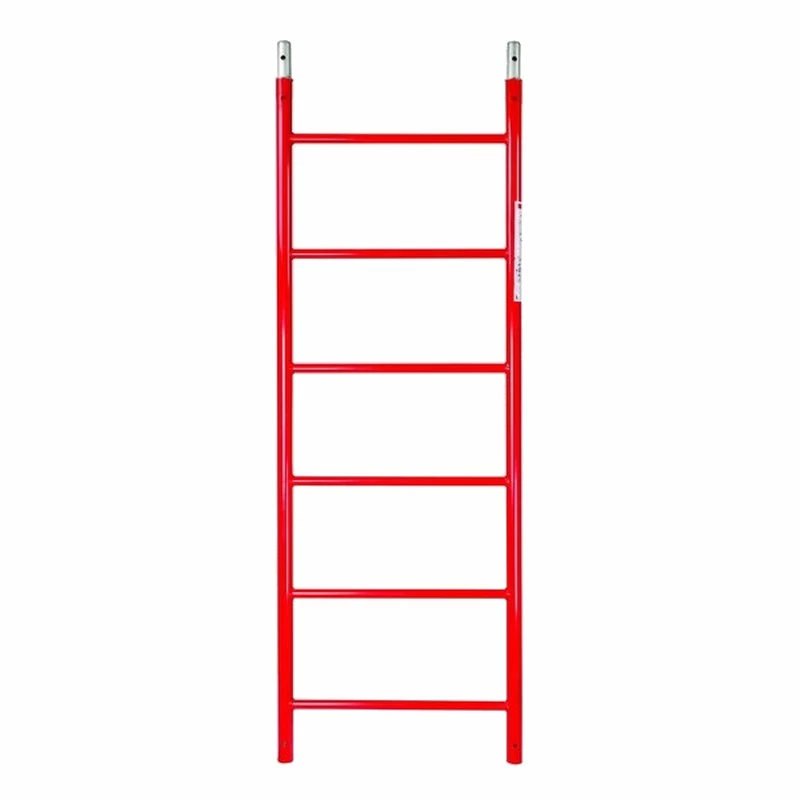

Description: Access Ladder
Ladder Height: 3'-10'
Ladder Width: 17"
Rung distance: 12" (305mm, evenly spaced )
Material: Steel, Q235. Ladder leg O.D 35x1.8mm, Rung tube O.D 25x1.8mm

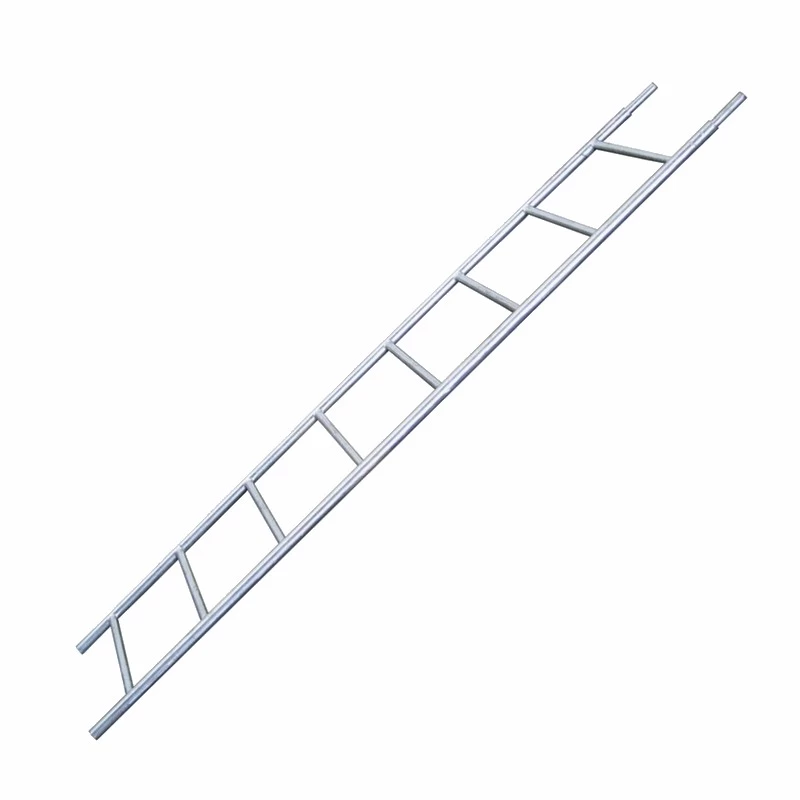

The Access Ladder is stackable. It has a male and female end for stacking.
Assemble with the male end up. The male Stacking Pin floats to make stacking easier!

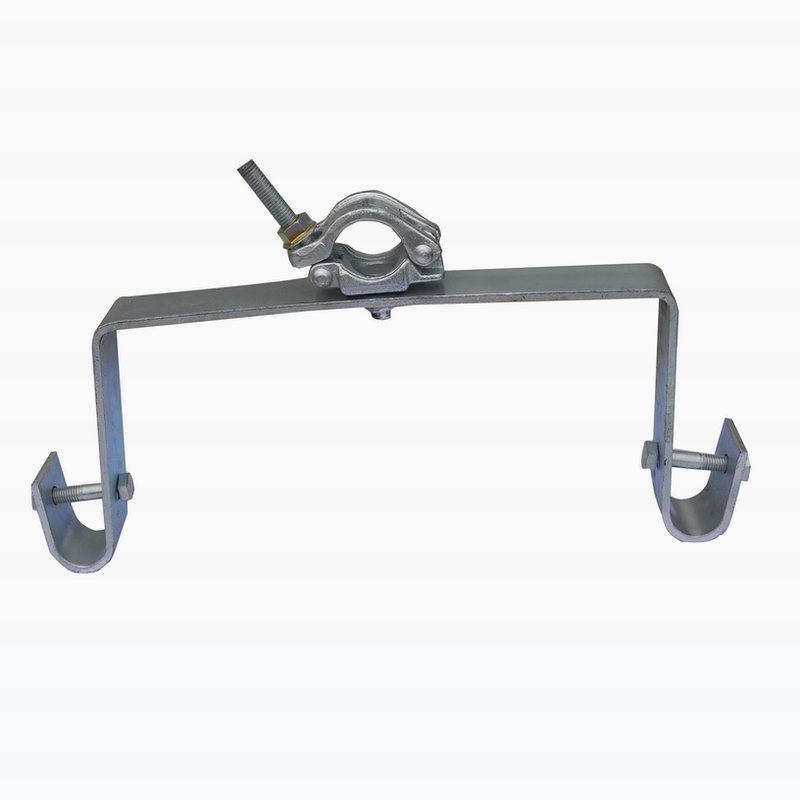

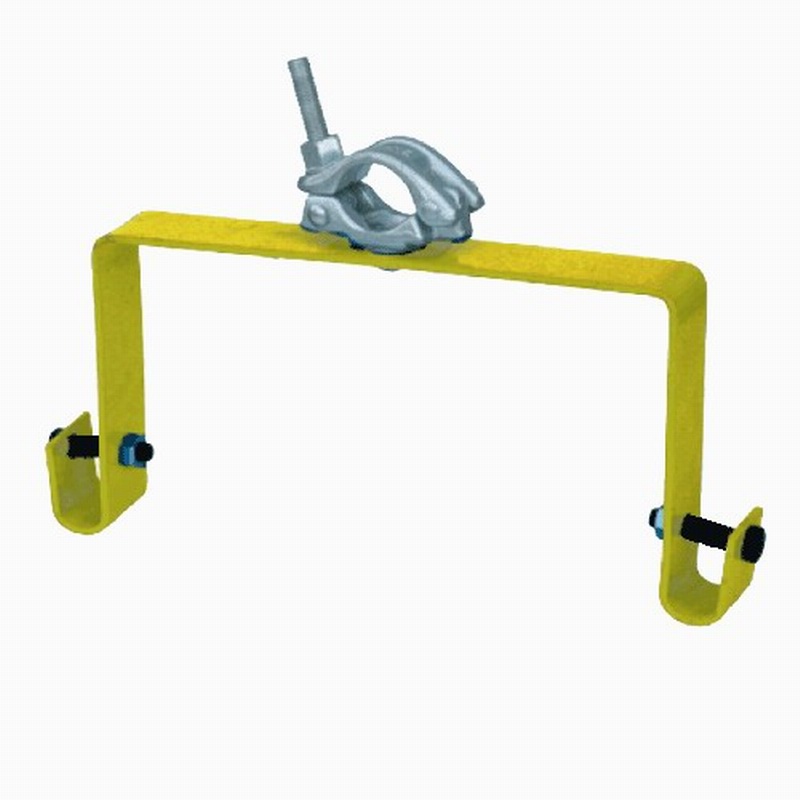

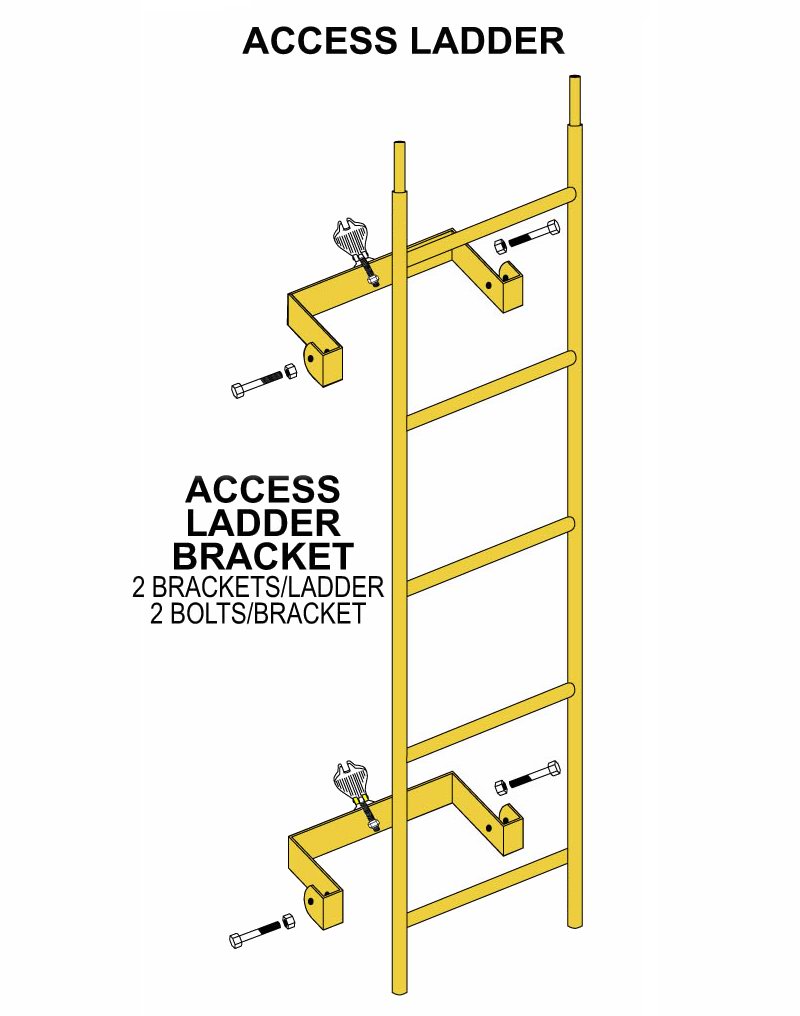

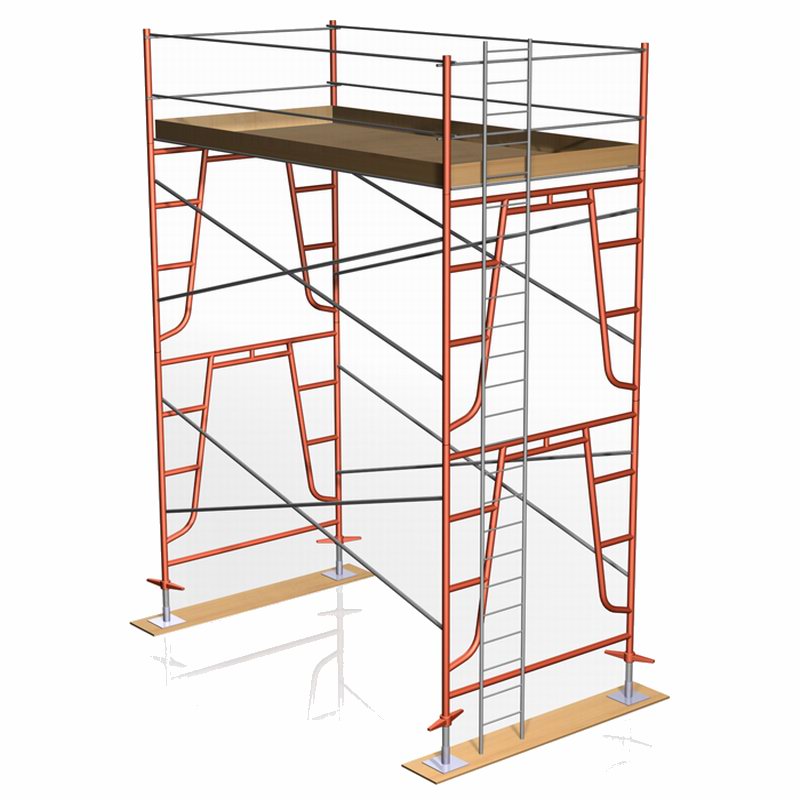

Use our Ladder Bracket to attach Access Ladders to the Scaffold Frame Leg.
