Brief Introduction
This machine is capable of accurately dispensing dry powder into round-shaped rigid container (401#-502# Metal -Plastic -Paper Can) at line speeds up to 50 bpm ,Two-stages filling integrated with inline check weigher and reject system .It provides precise weight control to save expensive product give-away .It is widely used in milk /Protein powder filling and seaming line featured with High speed,good accuracy and stable performance.
Features
- Two-stage powder filling integrated with Two inline check weigher and reject system:,featured with High Speed,Good accuracy.
- All parts and assemblies coming in contact with powder are made of S.S.304 and easily removable for maintenance changeover.
- NO CAN, NO FILL" System eliminates wastage of costly powder,only when can in place then filling start.
- Can Feeding was contorlled by servo system featured with stable performance and accurate positioning.
- Powder Filling system was controlled by servo system with adjustable filling speed set and high accuracy outcome.
Main Specifications
|
Model
|
DH-Q3-D
|
|
Dosing mode
|
Two stage powder filling integrated with Two Inline check weigher and reject system
|
|
Filling Weight
|
100 - 2,000g(With Different Size Dosing Auger Tools)
|
|
Container Size
|
Φ60-135mm; H 60-260mm(With different size of can feeding tools)
|
|
Filling Accuracy
|
100-500g, ≤±1g; ≥500g,≤±2g
|
|
Filling Speed
|
50-110cans/min
|
|
Power Supply
|
3P AC208-415V 50/60HZ
|
|
Total Power
|
3.4KW
|
|
Total Weight
|
450KGS
|
|
Hopper Volume
|
83L(Big Filler-Bulk Fill ) 51L(Small Filler-Fine Fill)
|

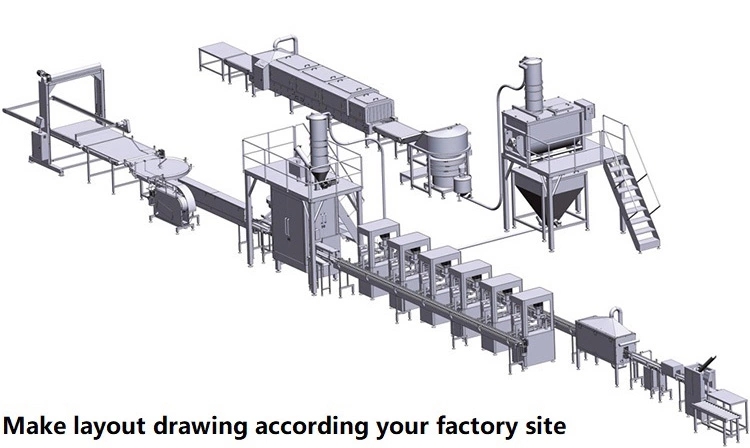

Whole powder packing production line
