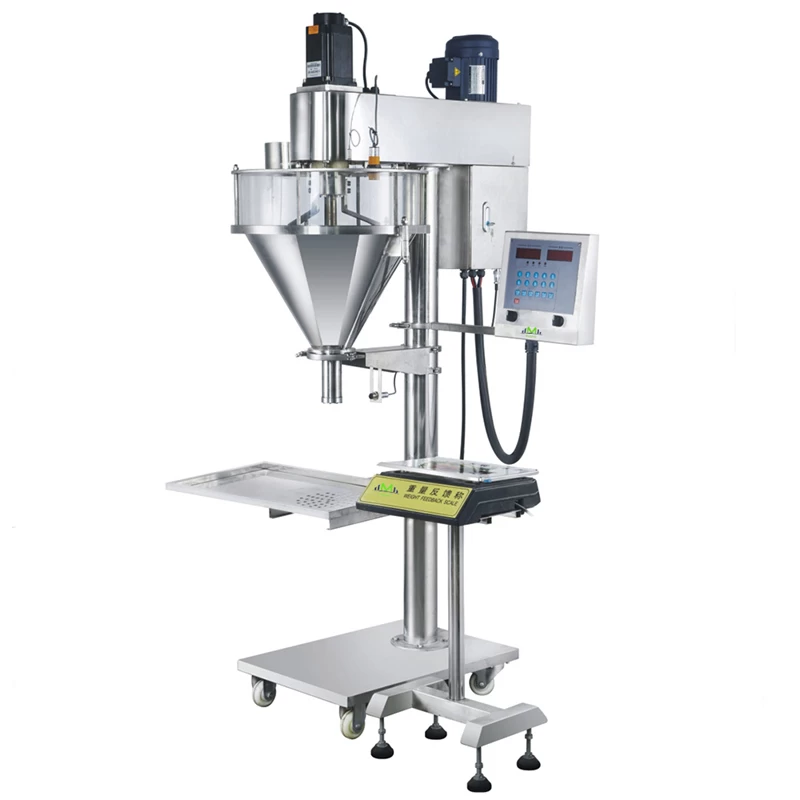

Powder screw filling machine

This Powder Screw filling machine is semi-automatic seriesfilling packing machine, modular transparent silos, Horizontal silos open, lifting work, the man-machine interface, the PLC the load module control. Industrial Powder Dispensing Equipment includes Servo motor driving screw 304stainless steel, to adapt the manual bagging, bottles, cans, boxes filling.


Facebook Twitter Pinterest LinkedIn 分享

Powder screw filling machine

Customized And OEM Service Available


Powder Filling Machine



Detailed introduction

This Powder Screw Filling Machine servo motor and tray together drive up and down, up and down speed can be arbitrarily set, filling no dust jet. Servo motor and servo drive control screw, high precision, stable performance.



Optional configuration

1、The dust removal device

2、Pneumatic the stanch valve device

3、Leakproof centrifugal device

4、The weight returns, said device

5、Foot switches and photoelectric feeding device on the radio.


Technical parameters


Packaging weight

10-5000g（Change the screw）

Packing accuracy

≤100g≤±2%  100-500g≤±1%

Filling speed

40-120times/min

Power

three-phase 380V 50HZ

Total power

1.4KW

The wholeweight

140KG

Whole volume

L1000*W800*H1900mm

Hopper volume

50L
