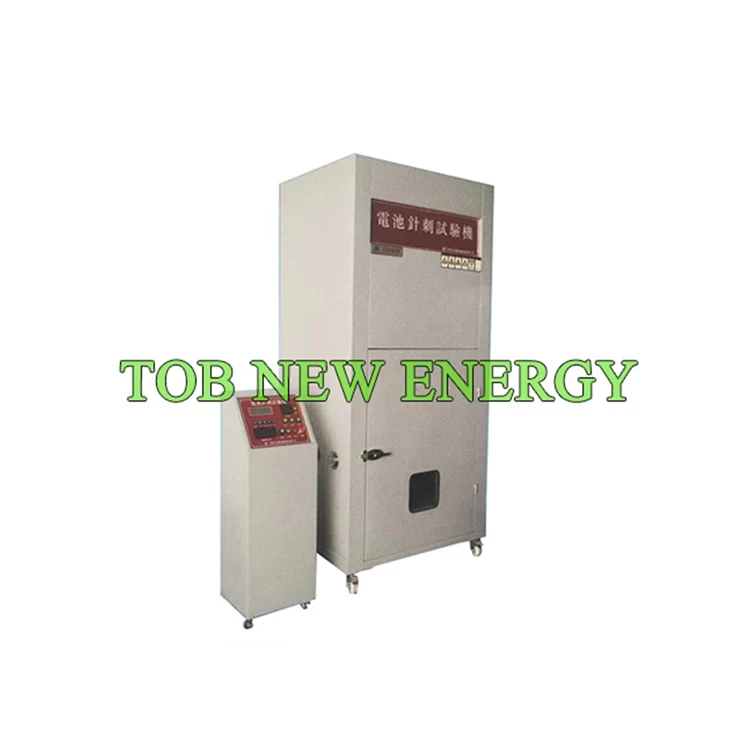

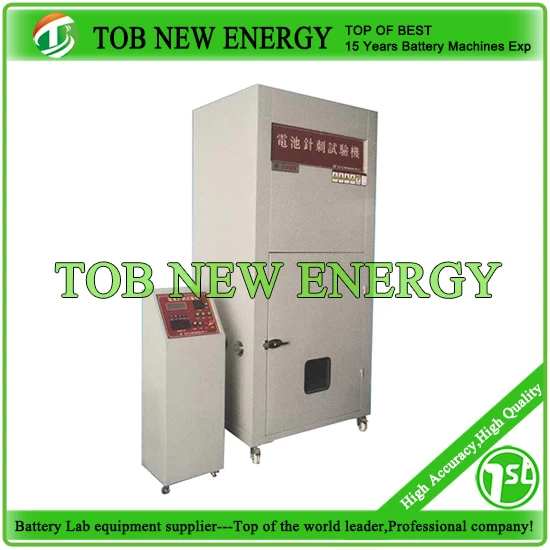

Power Battery Nailing Testing Machine for lithium battery pouch cell safety performance testing
SPECIFICATIONS
|
Model
|
Power Battery Nailing Testing Machine TOB-BE-9002D
|
|
Pressure range
|
1000N~5000N Customized
|
|
Dimension
|
W1000*D800*H2100MM
|
|
Weight
|
250kg
|
|
Controller dimension
|
W350*D350*H1040MM
|
|
View window dimension
|
800*300MM double explosion-proof glass
|
|
Source voltage
|
Three-phase 5W ,380V, 50HZ
|
|
Power
|
1KW
|
|
Nailing mode
|
Hydraulic pressure
|
|
Nailing force
|
±1% accuracy
|
|
Max testing size
|
500W*500D*500H MM adjustable
|
|
Nailing speed
|
10-40MM/S, adjustable,
|
|
Nailing speed error
|
±0.1MM/S
|
|
Unit Conversion
|
Kg/N/Lb
|
|
Test hole
|
50 mm diameter test hole on the left,
attached a stainless steel lid
|
