Boosting switching power supply 12v mini smps 36W from guangzhou China factory
Description:
This comprehensive boosting power supply offers power supplies suitable for use in a wide variety of lighting applications for led/stage/ industrial field.
Features:
1, 36w power supply high efficiency;
2, This model of 12v 36w built in filter, with low output noise;
3, 36w power supply 100-240VAC input voltage.
4, 12v 36w power supply overload and overcurrent protection.
Parameter
|
|
Item NO
|
K01-U36S12
|
|
Output
|
Output Voltage
|
+12Vdc
|
|
Rated Current
|
3A
|
|
Current Range
|
0-3A
|
|
Rated Power
|
36W
|
|
Ripple & Noise
|
100mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
800ms, 30ms, 16ms/115VAC 300ms, 30ms, 50ms/230VAC
|
|
Input
|
Input Voltage Range
|
100V~240V AC
|
|
Input Current
|
0.3A/230Vac
|
|
Input Frequency
|
50~60Hz
|
|
Efficiency
|
84% @230Vac
|
|
Power Factor
|
＞0.5
|
|
Inrush Current
|
Cool start
20A/230Vac
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~180% automatic protection
|
|
Short Circuit Protection
|
---
|
|
Output over-voltage protection
|
16V
|
|
Over-temperature protection
|
---
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，
No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943.1,EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:3KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55022B
|
|
Others
|
Dimension
|
74*68*27mm
|
|
Weight
|
0.2KG
|
|
Notes
|
1. All parameters in the 220AC input, rated load, ambient temperature 25 ℃, humidity 70% under the conditions of determination;
2. Accuracy: including setting error, line regulation, load regulation rate;
3. Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz oscilloscope measured at the load side;
4. Line regulation: the rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0 load to 100% load changes measured.
|

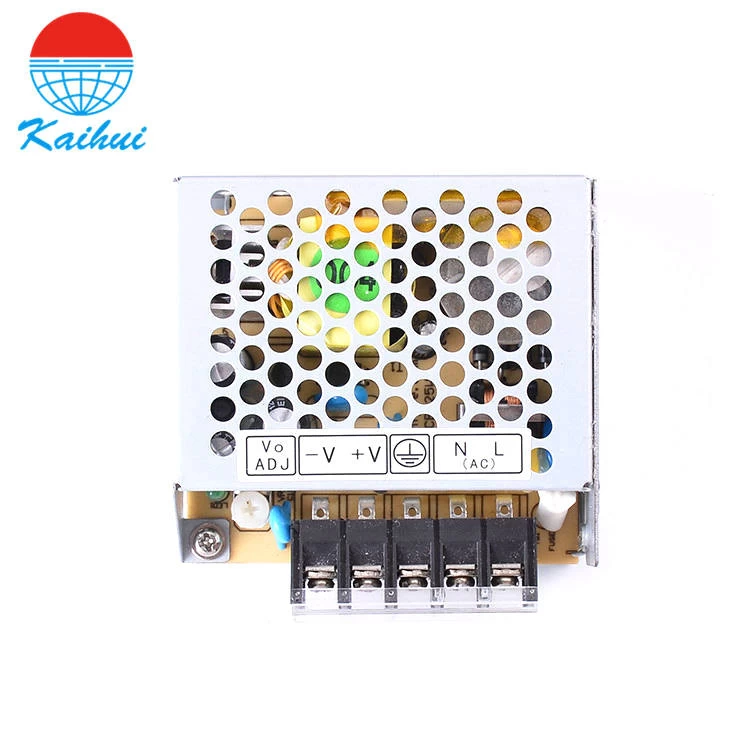

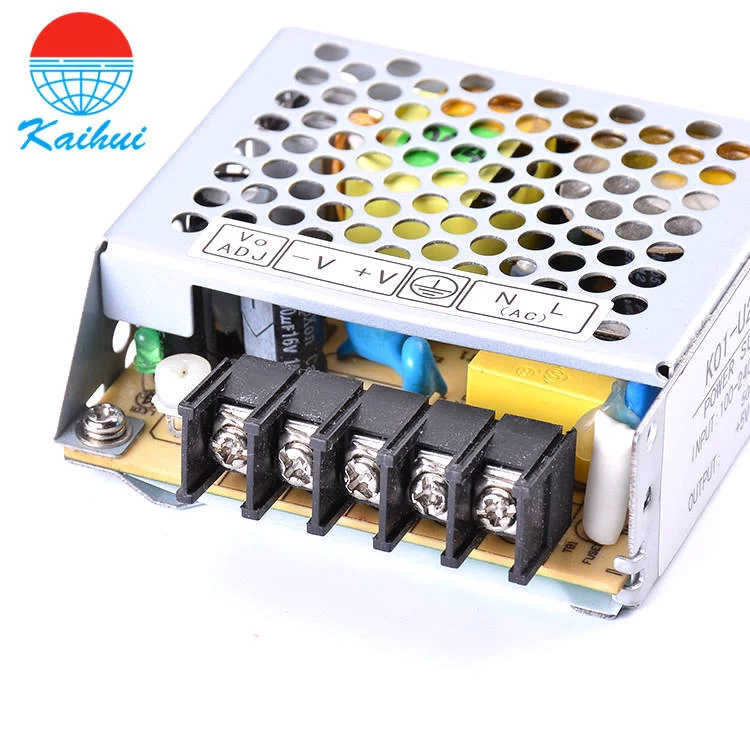

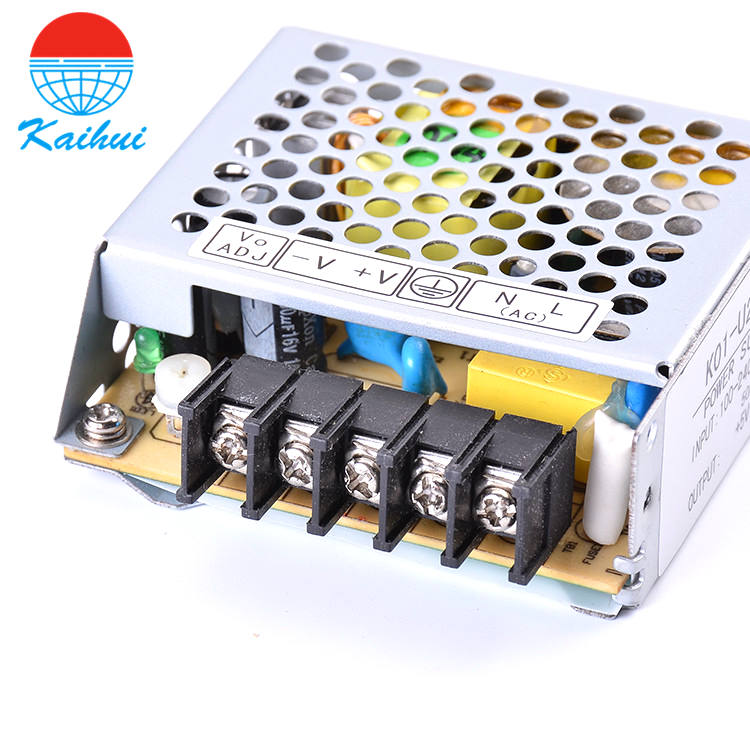

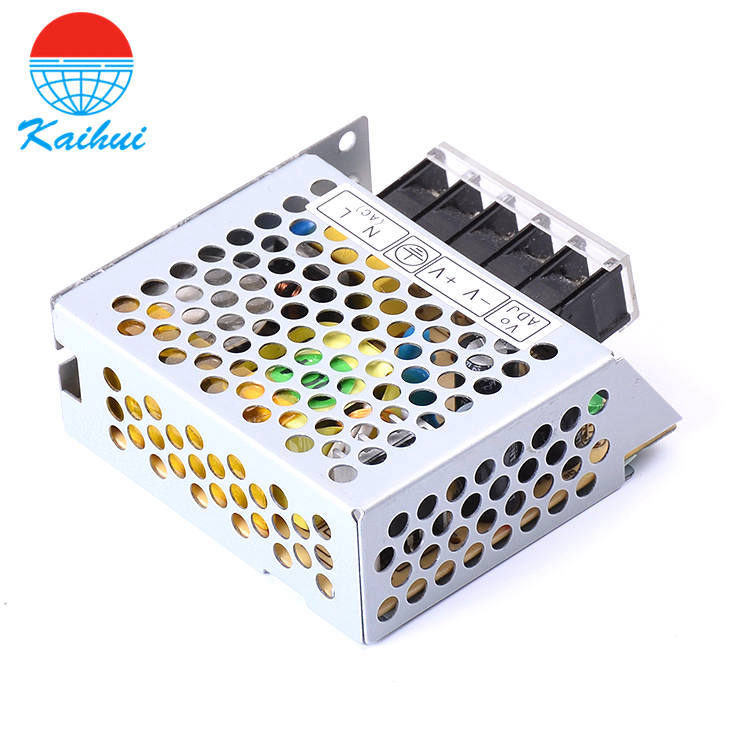

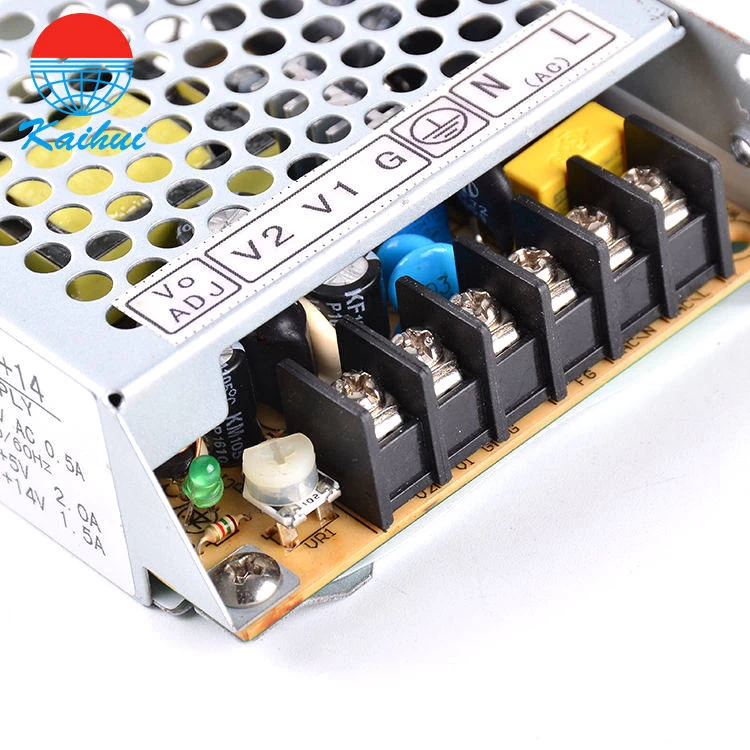

Product picture:
