Quick Details
|
Part Number:
EM Series Ferrite Core
|
Brand Name:
MCT
|
|
Material:
Mn-Zn/Ni-Zn ferrite core
|
Logo: Can be
customized
|
|
Type: Power
core High inductance
|
OEM:
Available
|
|
Core
Materials: M10P, M7P, M5P, MP4
|
MOQ: Any
quantity
|
|
Packing:
Carton, can be customized
|
Custom Made:
Available
|
|
Lead Time:
25 days after payment
|
Certification:
ISO9001,ROHS,CE
|
Part Information

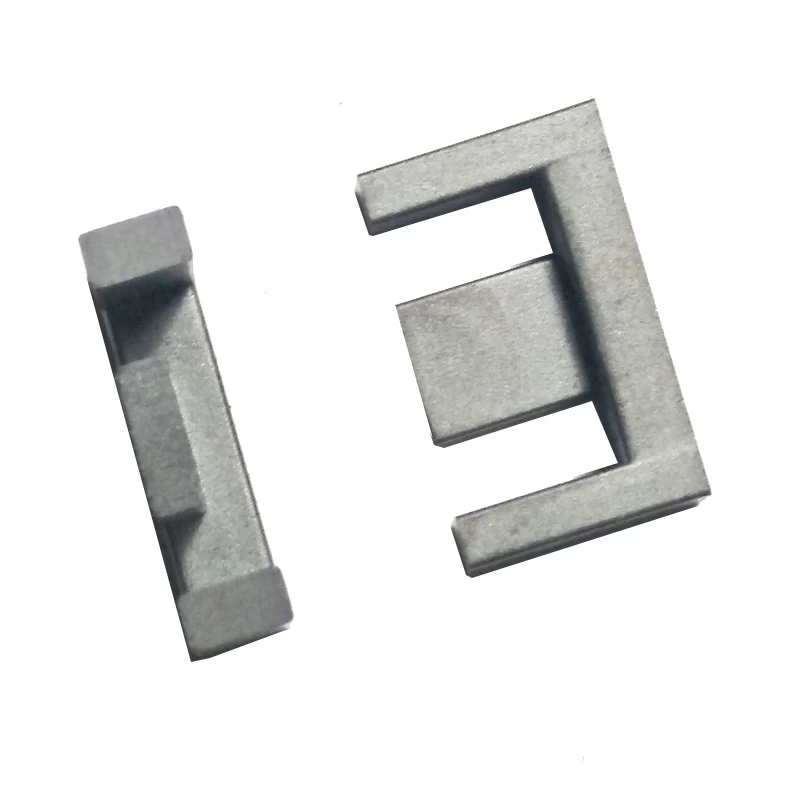

Product Name: Power Conversion Transformer Core,EM Series Power Ferrite Core
Products Range: Electronic
transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: High-frequency
Switching Power Transformers. Carrier Filter, High Sensitivity Sensor, High
Efficiency Sensor, Power Conversion Transformer.
Advantages: Our Factory is made up of 500 people, huge
output can be finished every day.
We have a technical team consist of 5 experienced
engineers.
All materials are environmental protected. We accept
custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for
standard parts.
Shipping Details: By air, By ship, etc.
Product Details
|

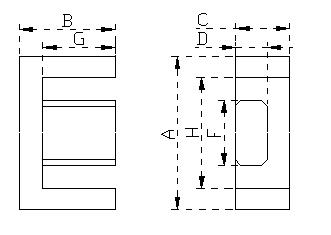

TYPE
|
Dimension:mm
|
Weight:g
|
|
A
|
B
|
C
|
D
|
F
|
G
|
H
|
|
EEM10.5
|
10.5±0.3
|
5.20±0.1
|
2.70±0.1
|
1.45±0.2
|
4.55±0.25
|
3.75±0.2
|
7.75±0.25
|
1.2
|
|
EEM12.7
|
12.7±0.3
|
6.85±0.2
|
3.5±0.2
|
2.0±0.2
|
5.4±0.25
|
4.55±0.2
|
9.0±0.25
|
1.6
|
|
EEM15
|
15±0.4
|
9.5±0.16
|
3.8±0.2
|
1.9±0.15
|
5.3±0.2
|
6.7±0.25
|
11±0.35
|
3.2
|
|
EEM21
|
21.08±0.3
|
12.1±0.2
|
4.5±0.2
|
2.9±0.2
|
8.4±0.3
|
9.2±0.2
|
15.0±0.3
|
6.0
|
|
EEM25
|
25±0.75
|
12.6±0.2
|
12.45±0.25
|
8.3±0.3
|
8.8±0.25
|
9.55±0.25
|
19.2±0.4
|
21.0
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±25%）
|
|
C1
(mm-1)
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
EEM10.5
|
3.29
|
7.2
|
23.7
|
171
|
500
|
|
|
|
|
EEM12.7
|
2.50
|
11.4
|
28.5
|
325
|
700
|
|
|
|
|
EEM15
|
3.0
|
12.82
|
38.59
|
494.7
|
530
|
|
|
|
|
EEM21
|
2.18
|
23.9
|
52.1
|
1245
|
1200
|
|
|
|
|
EEM25
|
0.81
|
7.30
|
60.0
|
4300
|
3350
|
|
|
|
