Overview

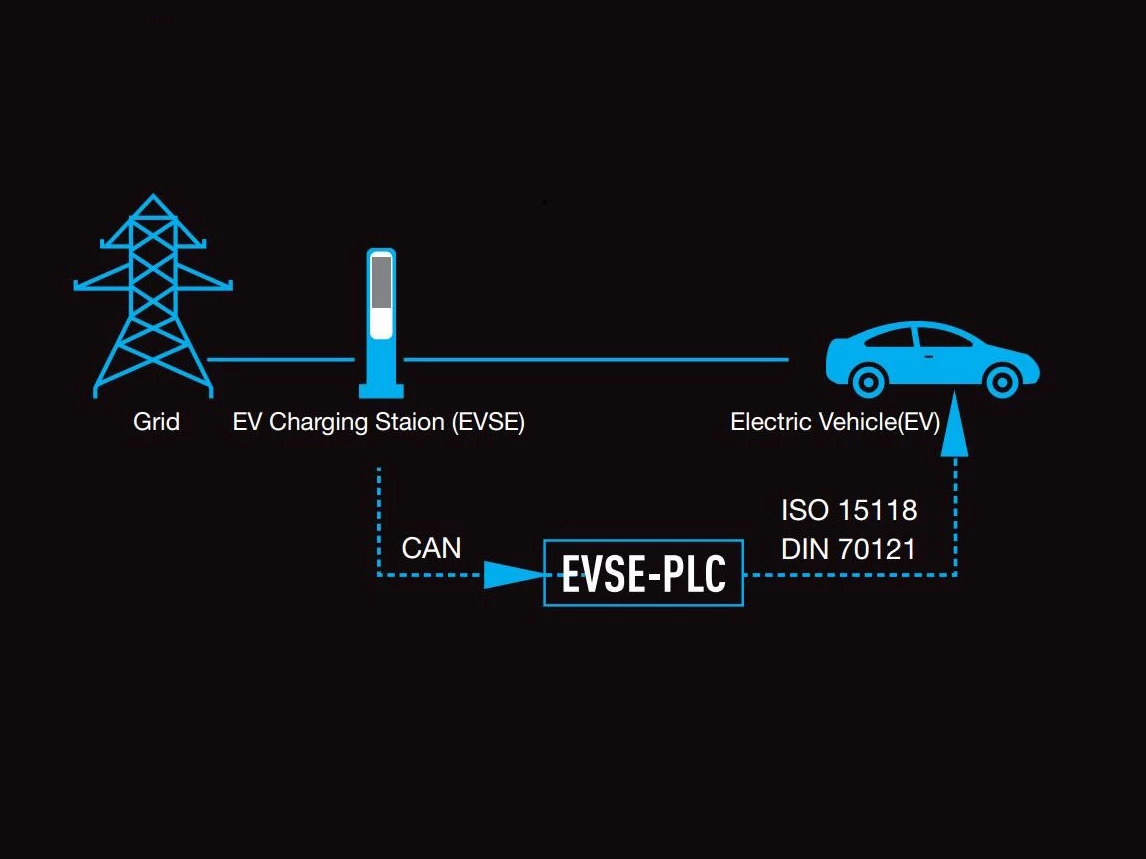

EVSE-PLC is a PLC(Power Line Communication) based modem for communication bwtween EV and EVSE.
It is suitable for DC charge, and supports conversion of CAN, RS232/485 communication protocol to ISO/IEC 15118 and DIN 70121 standards. It can be installed inside CCS 2 DC chargers or new energy electric vehicles to realize intelligent interconnection between EV and EVSE.
■ Processor: TI AM3352
■ Operating system: Linux 4.1.16
■ SECC interface: CAN, RS 232/485
■ PLC interface: HomePlugGreenPHY
■ Debug interface: Ethernet port
■ Chip: QCA7000
■ Operating voltage: 7VDC-30VDC
■ Power consumption: maximum 4W, idle mode 2W
Application
■ Charge controller in electric vehicle supply equipment (EVSE)
■ Charge controller in plug-in electric vehicles (PEV)
■ Simulators for tests of PEV or EVSE
Feature
■ Exquisite in appearance and easy to be embedded inside EVSE and EV;
■ ISO/IEC 15118, DIN 70121 compliant communication;
■ RS232, RS485, CAN and Ethernet interface to power elcetronics;
■ It can be used with EVSE, or to be installed in EV to realize the interconnection and communication between EVSE and EVs of different communication protocols;
■ Short development cycle, quick docking between different EVSE and EV;
■ Parralle support multiplevehicles;
■ Timely handling of abnormal charging process;
■ Support for remote software upgrade.
■ TUV SUD certified.
