Stabilizes voltage within 10ms. Manages reactive power, harmonics, and imbalances across a wide range, even during voltage drops.

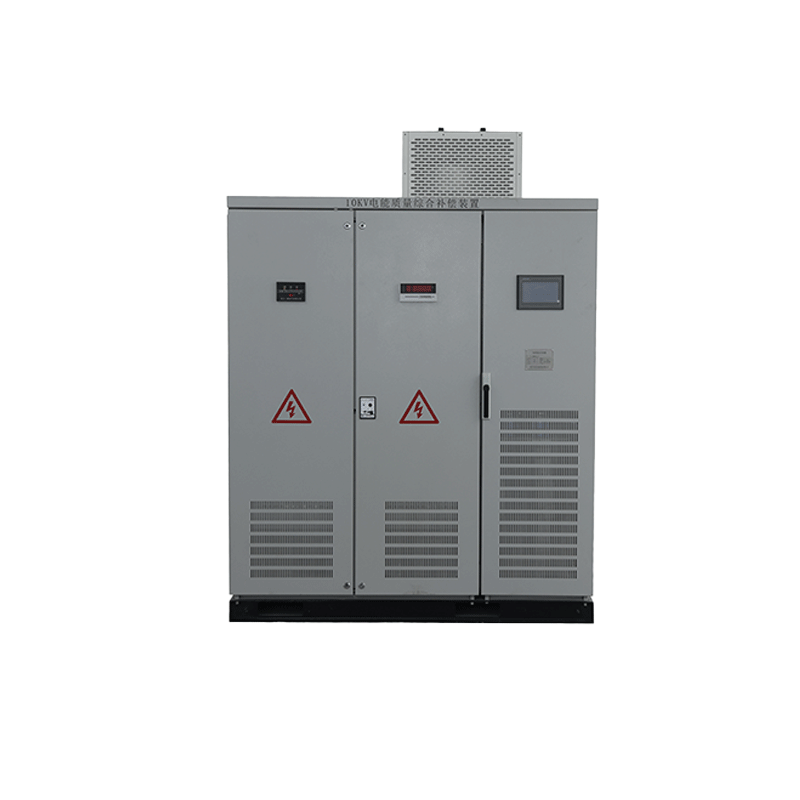

Power Quality Compensation System SVG
The SVG (Static Var Generator) optimizes power quality in 10kV systems by providing rapid reactive power compensation, phase imbalance correction, and harmonic filtering. Its compact, multifunctional design ensures grid stability, reduces energy loss, and enhances overall system efficiency, making it ideal for industrial and commercial power management applications.
- Features
-
Harmonic Mitigation and Active FilteringReduces high-order harmonics to meet grid quality standards. Uses PWM technology for active filtering, reducing harmonic pollution. -
Intelligent Control and Remote MonitoringThe microcomputer controller enables parameter setting, real-time data collection and storage, and supports 485 communication for remote monitoring and management. -
Energy Efficiency and Compact DesignImproves transformer efficiency, reduces line losses, and saves energy. Occupies less space, ideal for installations in confined spaces.
- Battle Card - SVG VS. Traditional Power Compensation Device
| SVG | VS. | Traditional Compensation Devices |
| < 10ms (Fast, dynamic load support) | Response Time | ≥ 50ms (Slower response) |
| Multifunctional (Reactive power, harmonics, imbalance) | Compensation Type | Single-function (Reactive power or power factor) |
| Compact (50% smaller) | Size | Larger footprint |
| Active filtering (Low harmonic content) | Harmonic Filtering | Passive filtering (Requires extra components) |
| High (Minimal energy loss) | Efficiency | Lower (More energy loss) |
| Low (Minimal maintenance) | Maintenance | Higher (Frequent maintenance) |
| Higher initial cost, lower long-term costs | Cost | Lower initial cost, higher operating costs |
- Specifications
| Rated Voltage | 10kV |
| Rated Frequency50Hz | 50Hz |
| Rated Power | 30-1000kVar |
| Storage Temperature | -40℃ to +65℃ |
| Operating Temperature | -25℃ to +55℃ |
| Relative Humidity | Monthly Average < 95% (at normal temperature, no condensation) |
| Altitude | ≤2000m |
| Ingress Protection Rating | IP30 |
| Seismic Intensity | Level 8 |
| Pollution Degree | IV |
- Application Scenarios
High-Speed Rail Power Distribution Networks
Industrial Power Distribution
Urban Power Distribution Networks
Substations and Power Supply Departments

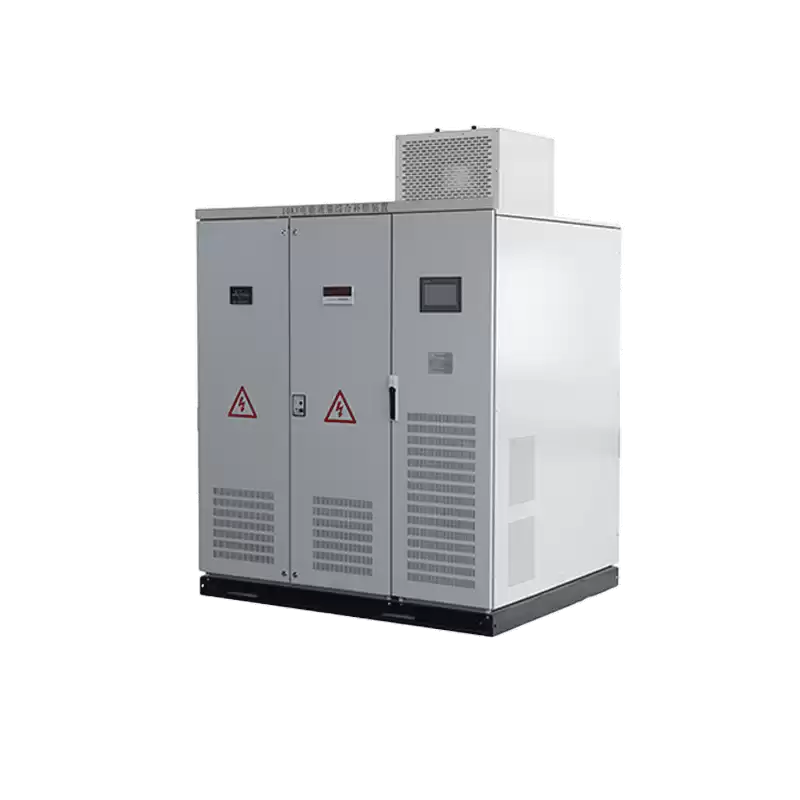

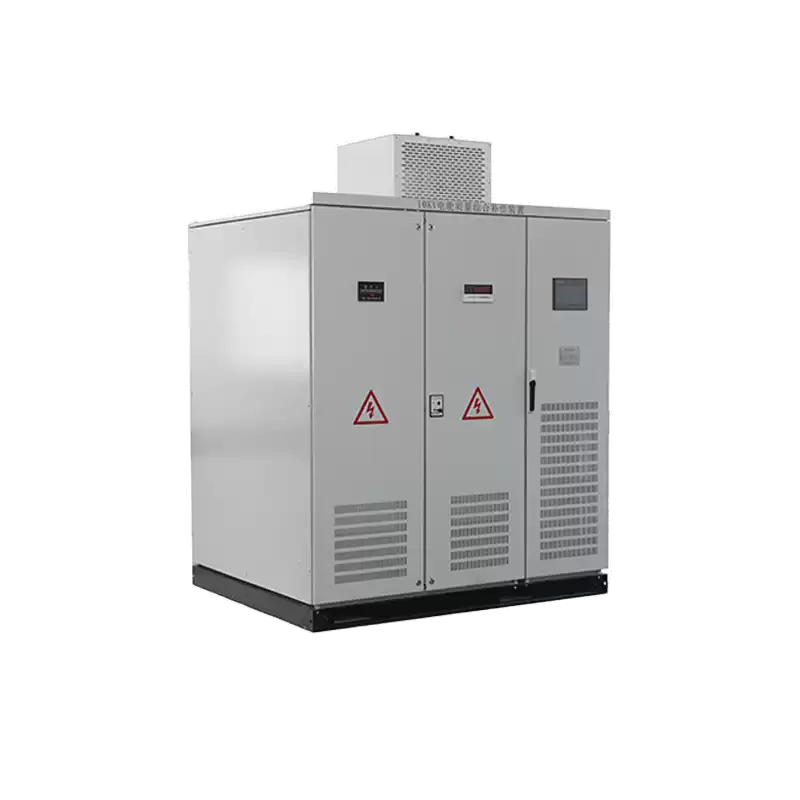

Compact Static Var Generator

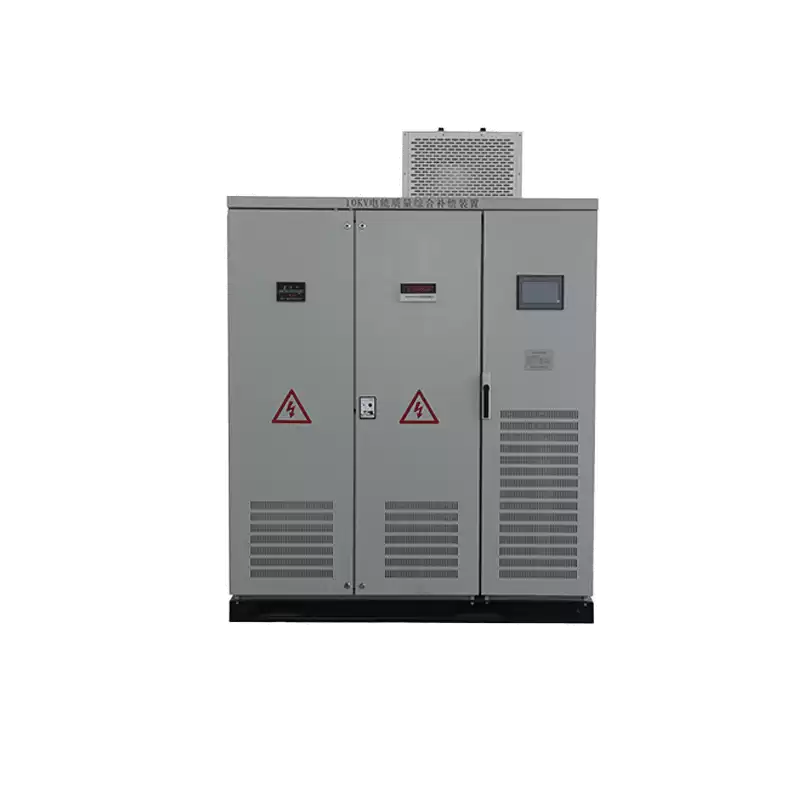

Intelligent SVG System Compensation Device

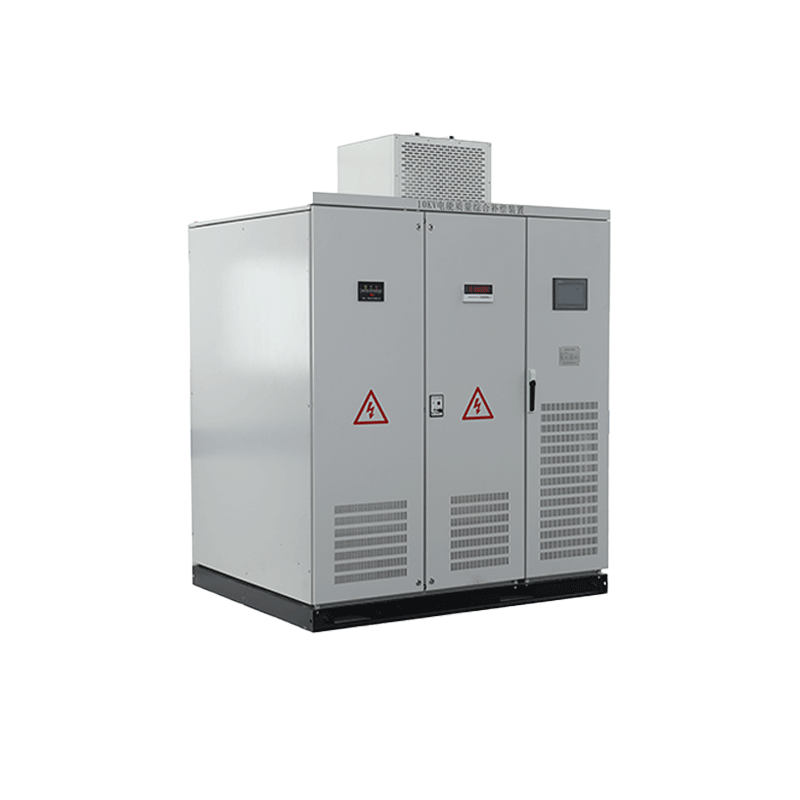

Improve Power Quality / Device Efficienct SVG
