United Energy founded in 2009, National high-tech enterprise,focus on solar panel and solar system R&D obtained more than 100 patents.
Quality is the Company Culture of UNITED ENERGY!
United Energy has strategic cooperation with many battery manufacturers Sony, Panasonic, LG, Samsung and the largest domestic automotive battery manufacturers like CATL, CALB, BYD etc. Focusing on independent R&D of low-voltage and high-voltage energy storage products more suitable for household lithium iron phosphate lifepo4 solar storage battery bank , as well as industrial and commercial use.
Battery Specification:
| Model |
UE-S2-5kWh |
UE-S2-10kWh |
| Nominal Voltage |
48V |
| Rated Capacity |
100AH |
200AH |
| Battery Cell |
3.2V 100Ah Prismatic Battery Cell |

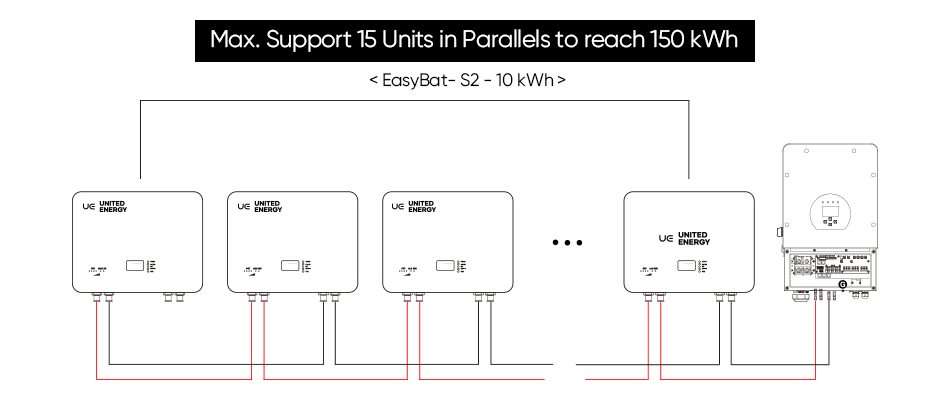

| Parallel Capacity |
yes, 8units maximum |
yes, 15units maximum |
| Max Charging Current |
100A |
| Max Discharging Current |
100A |
| Operating Voltage Range |
40-57.6V |
| Design Life |
15+ Years(25°C/77°F) |
| Cycle Life |
＞6000 Cycles,25°C |
| Communication Port |
CAN,RS485,RS232 |
| Size(L*W*H) |
600*510*173mm |
673*618*193mm |
| Weight |
51Kg±0.5Kg |
89Kg±0.5Kg |
| Working Temperature |
-10-50℃ |
| Shelf Temperature |
10-50℃ |
| Humidity |
15%~75% |
| Lithium Battery Standard |
CE/IEC62619/UN38.3/MSDS |
Product Advantage:
1, International Certifications, guarantee quality;
2, High Safety: Overvoltage protection; Overcurrent protection; Temperature protection;Short-circuit protection;
3, Higher stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
4, Long service life：15+ years designed lifespan, up to 6000 cycles.
Advantage comparing with Lead Acid Battery?
Compared to lead-acid and lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power.
LiFePO4 batteries often come with a higher price tag, but a much better cost over the life of the product. No maintenance and super long life make them a worthwhile investment and a smart long-term solution.
