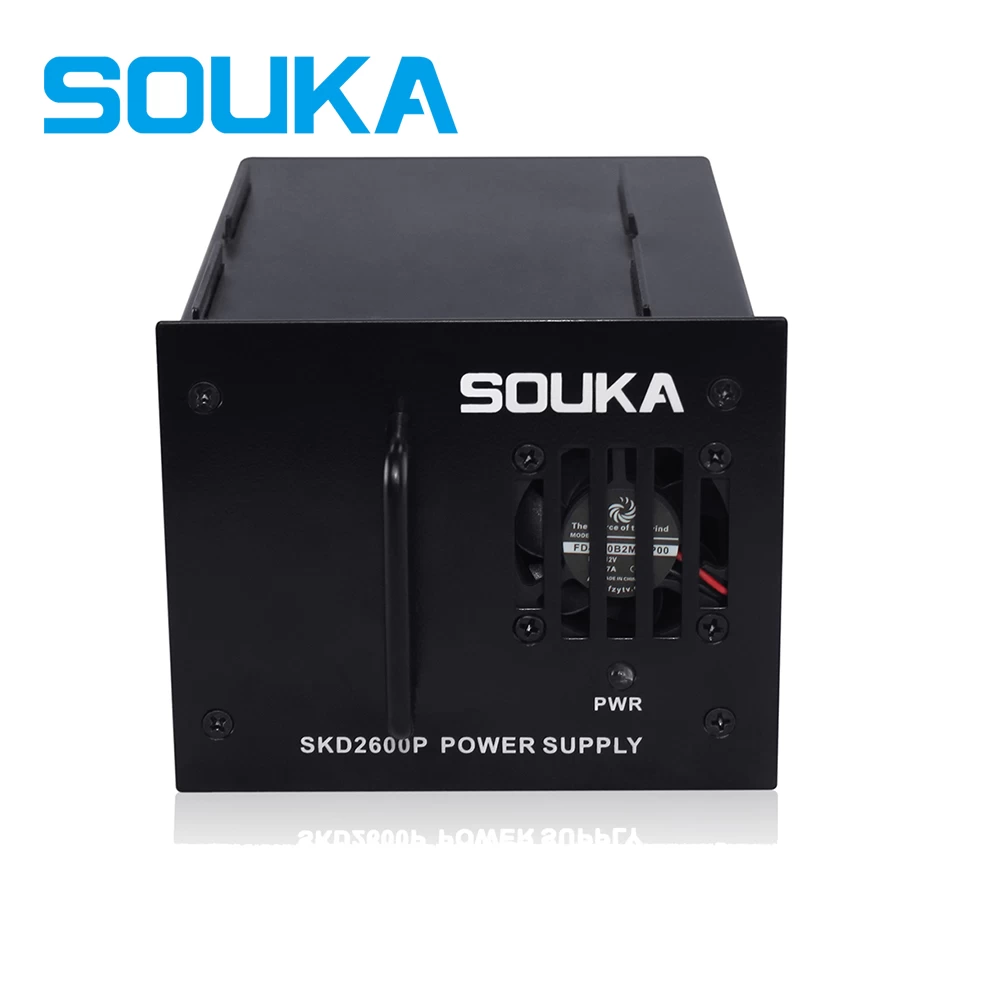

The SKD2600P is the hot-swappable power supply that goes with the SKD2600C in regular kit. It takes 4 slots in the SKD2600C and can power up 12 digital modulators.
Features:
1. High efficiency power supply equipped with cooling fan minimizes power consumption and heat dissipation.
2. Internal fusing circuitry provides current overload protection, ensuring the most efficient performance.
|
Power
Supply Number
|
1 UL listed power supply
|
|
MAX
Module Capacity
|
12
|
|
Input
|
Voltage Range
|
80 ~ 264VAC
|
|
Frequency Range
|
47 ~ 63Hz
|
|
Efficiency (Typ.)
|
93%
|
|
AC Current (Typ.)
|
1.8A/115VAC
1A/230VAC
|
|
Inrush Current(Typ.)
|
Cold Start 30A/115VAC
60A/230VAC
|
|
Leakage Current
|
＜0.75mA / 240VAC
|
|
Output
|
DC Voltage
|
12V
|
|
Current
|
10CFM
|
16.7A
|
|
Convection
|
11.7A
|
|
Rated Power
|
10CFM
|
200.4W
|
|
Convection
|
140.4W
|
|
Ripple & Noise (MAX.)
|
100mVp-p
|
|
Voltage Adjust Range
|
11.4 ~ 12.6V
|
|
Voltage Tolerance
|
±2.0%
|
|
Protection
|
Overload
|
110 ~ 140% rated output
power
|
|
Recover automatically after
fault condition is removed
|
|
Over Voltage
|
13.2 ~ 15.6 V
|
|
Shut down output voltage,
re-power on when recover
|
|
Over Temperature
|
Shut down output voltage,
re-power on when recover
|
|
Function
|
Fan Supply
|
12V@0.5A for driving a fan
|
|
Cooling by free air
convection for 140W and 200W with 10CFM forced air
|
|
Cooling System
|
|
Fan
Number
|
1
|
Bearing
Type
|
Ball
|
|
Voltage
|
DC12V 0.1A
|
Noise
Level
|
3.31dBA
|
|
Fan
Speed
|
6000RPM
|
Air
Flow
|
6.4CFM
|
|
General
|
|
Operating
Temperature
|
0 ~ 50℃
|
|
Dimension
|
155 *106.5*88 MM
|
|
Weight
|
1.5 KG
|
|
|
|
|
|
|
