We specialized in manufacturing various SMD high frequency switch mode power transformers, such as flexible SMPS transformer ER9/ER11.5/ER14.5, best quality and good price, if you have any requests, welcome to contact us.
Quick Details
|
Part No: Flexible SMPS-Transformer ER14.5
|
Brand name: MCT
|
|
Insulation test voltage: 1500V
|
Custom made: Available
|
|
Low leakage inductance
|
Logo: Can be customized
|
|
Transformer with multi-winding
|
Packing: Carton, can custom
|
|
Operating temperature -40°C~+125°C
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: Power Supply Transformer ER14.5 High Frequency SMD Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
Electrical Data and Part Number(PN)
|
L1 in uH
|
L1 in mA
|
Lsat in mA
|
RDC/mΩ
|
PIN
|
|
21.5
|
950
|
350
|
160
|
MCT-ERB-A10
|
|
11.5
|
950
|
820
|
160
|

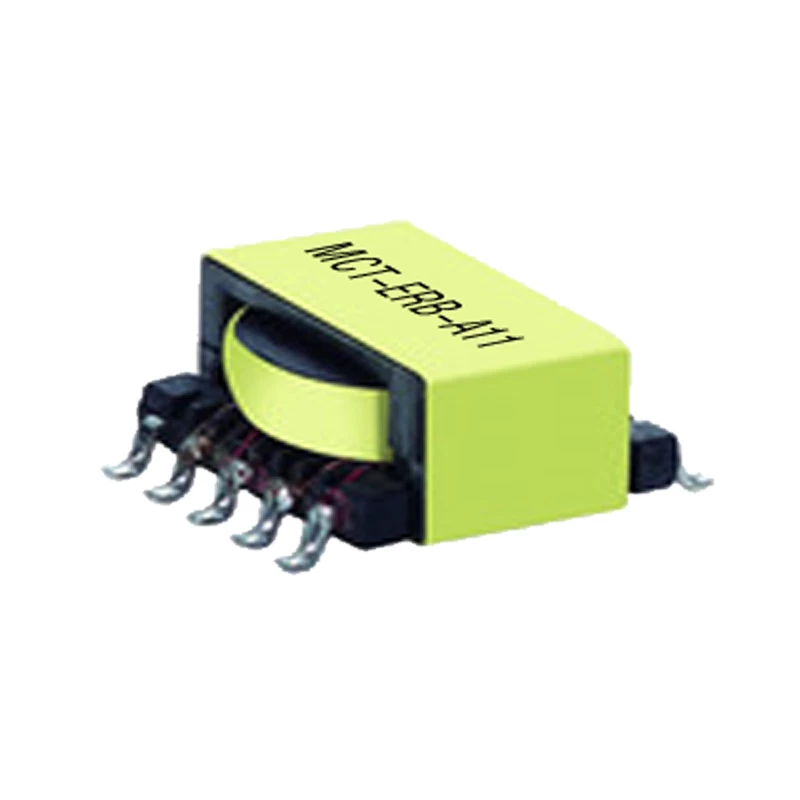

MCT-ERB-A11
|
|
8.1
|
950
|
1150
|
160
|
MCT-ERB-A12
|
|
6.5
|
950
|
1500
|
160
|
MCT-ERB-A13
|
