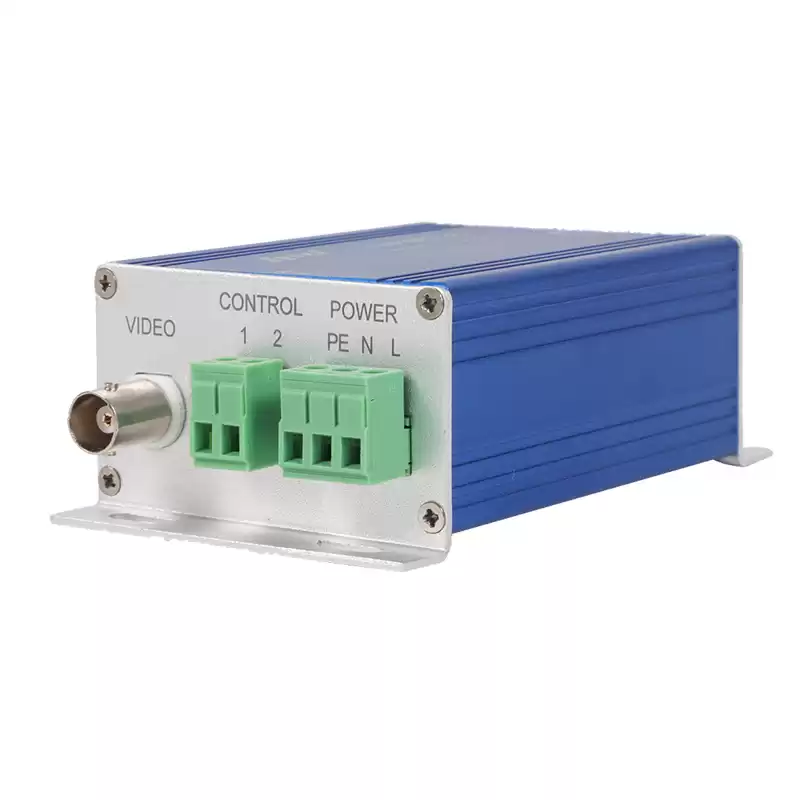

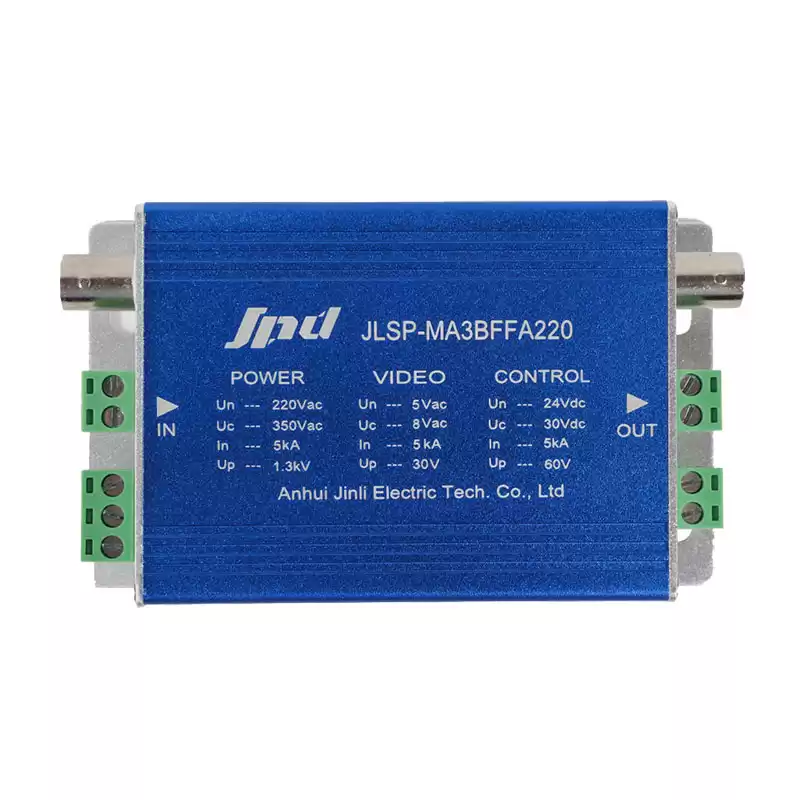

Power Video data 220V AC CCTV camera Monitor 3 in 1 surge protection device
It is suitable for AC / DC power supply, with (or without) PTZ control port monitoring camera lightning protection, multi-functional integrated design, reduce the protection cost and installation difficulty, reduce the installation space, and maximize the use of equipotential protection principle, greatly improve the protection effect.
Standard compliance
IEC61643-21
Features:
* Low insertion loss and low voltage protection level
* Fast response: action with nanosecond
* High rate transmission
* Large discharge current capacity
* BNC connection
* Power, data and video in single unit
|
Model
|
Function
|
Application
|
Nominal voltage Un(V)
|
Max.continuous operatingvoltage Uc(Vdc)
|
Nominal discharge current In(kA)
|
Protection level Up(line-line)(V)(B2:4kV)
|
Protection level Up(line-PE)(V)(B2:4kV)
|
Max.data rate (Mbps)
|
Impedance
|
Insertion loss(dB)
|
Connection
|
|
JLSP-MA3BFMA220
|
Power, data and video in single unit
|
AC
|
220
|
350
|
5
|
---
|
≦1300
|
---
|
---
|
---
|
---
|
|
Video
|
---
|
---
|
5
|
≦30
|
≦600
|
10
|
50
|
≦0.3
|
BNC
|
|
Data
|
---
|
---
|
5
|
≦30
|
≦600
|
---
|
---
|
≦0.3
|
---
|
