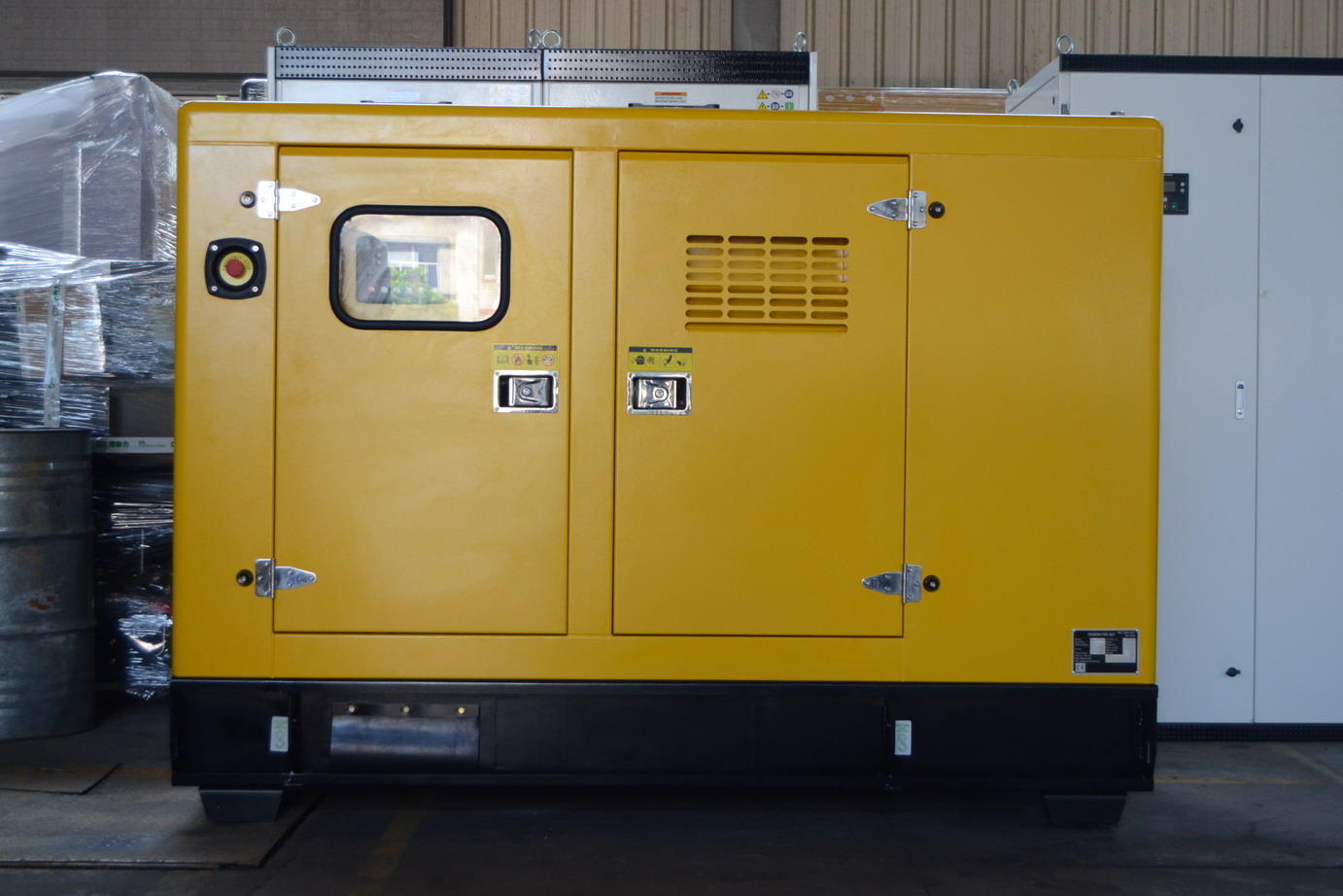

Powered By Perkins Diesel Generator Stamford 35/40/45/50 Kw Silent 404D 22G Price List With AMF ATS
The generator set standard configuration:
Assembled by Perkins diesel engine and high quality Stamford alternator.
Cooling Radiator
and fan with safety guard, or heat exchanger.
Heavy
duty steel base frame with great capacity fuel tank for options.
Vibration
damping supports between engine/alternator and base frame.
Heavy
duty industrial type exhaust silencer with flexible bellow.
High
capacity sealed lead acid battery with battery cable.
Intelligent
control panel, Deepsea, smartgen or Comap brand for options.
Perkins Diesel Engine Specification
|
Engine manufacture
|
Perkins Engines Company Limited
|
|
Engine brand
|
Perkins
|
|
Engine model
|
404D-22G
|
|
Engine speed (rpm)
|
1500
|
|
|
Prime power
|
Standby power
|
|
Gross engine power (kWb)
|
18.7
|
20.6
|
|
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
|
16
|
17.7
|
|
Cylinders
|
4-cylinder, vertical in line
|
|
Cycle
|
4 stroke
|
|
Induction system
|
Naturally Aspirated
|
|
Compression ratio
|
23.3:1
|
|
Bore * Stroke (mm)
|
84*100
|
|
Cubic capacity (Litre)
|
2.216
|

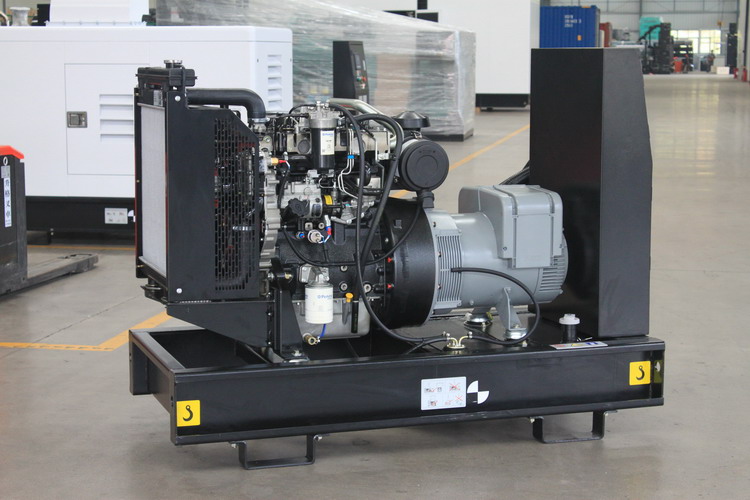

Perkins small power generator set Details
