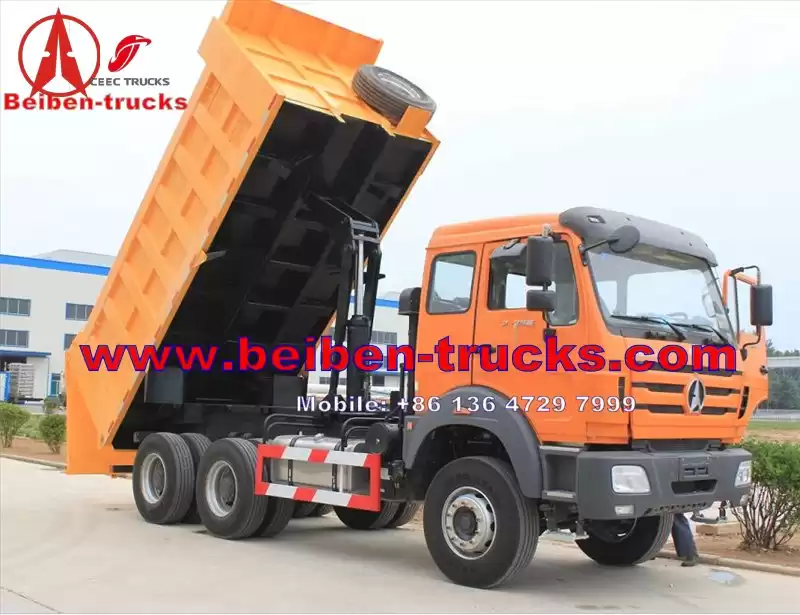

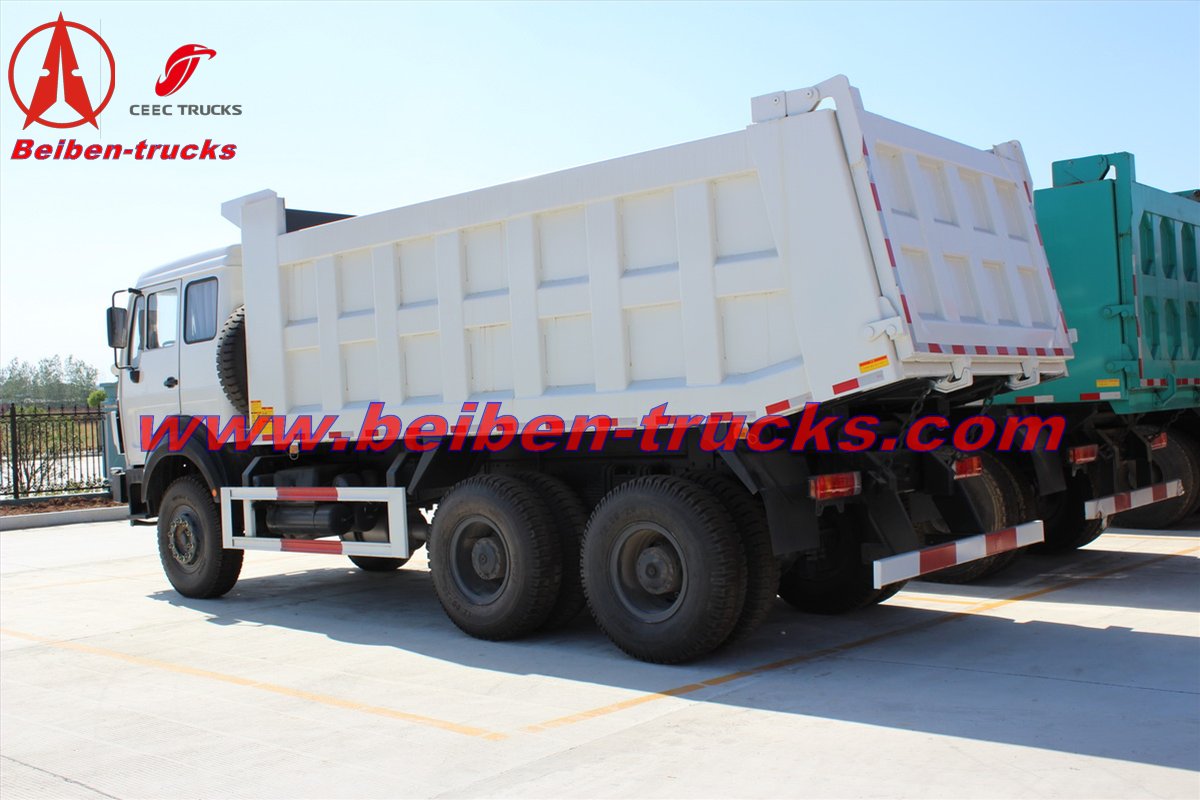

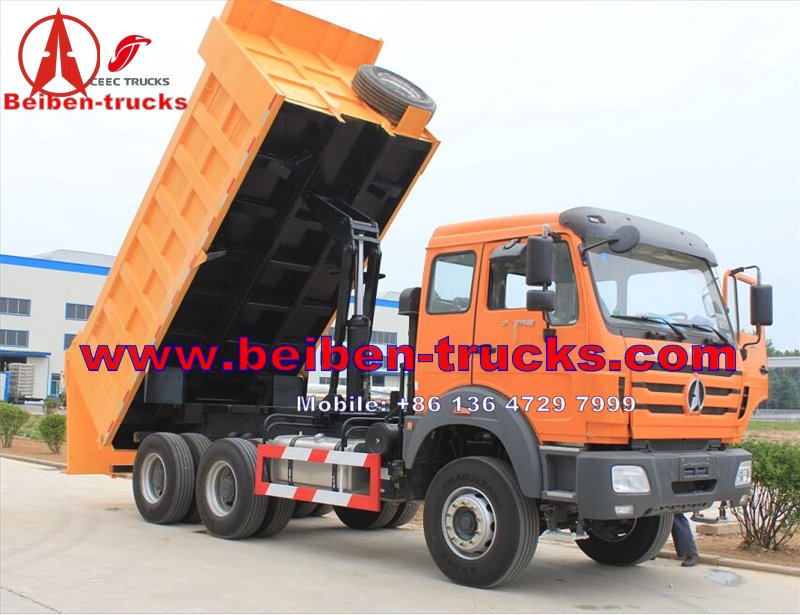

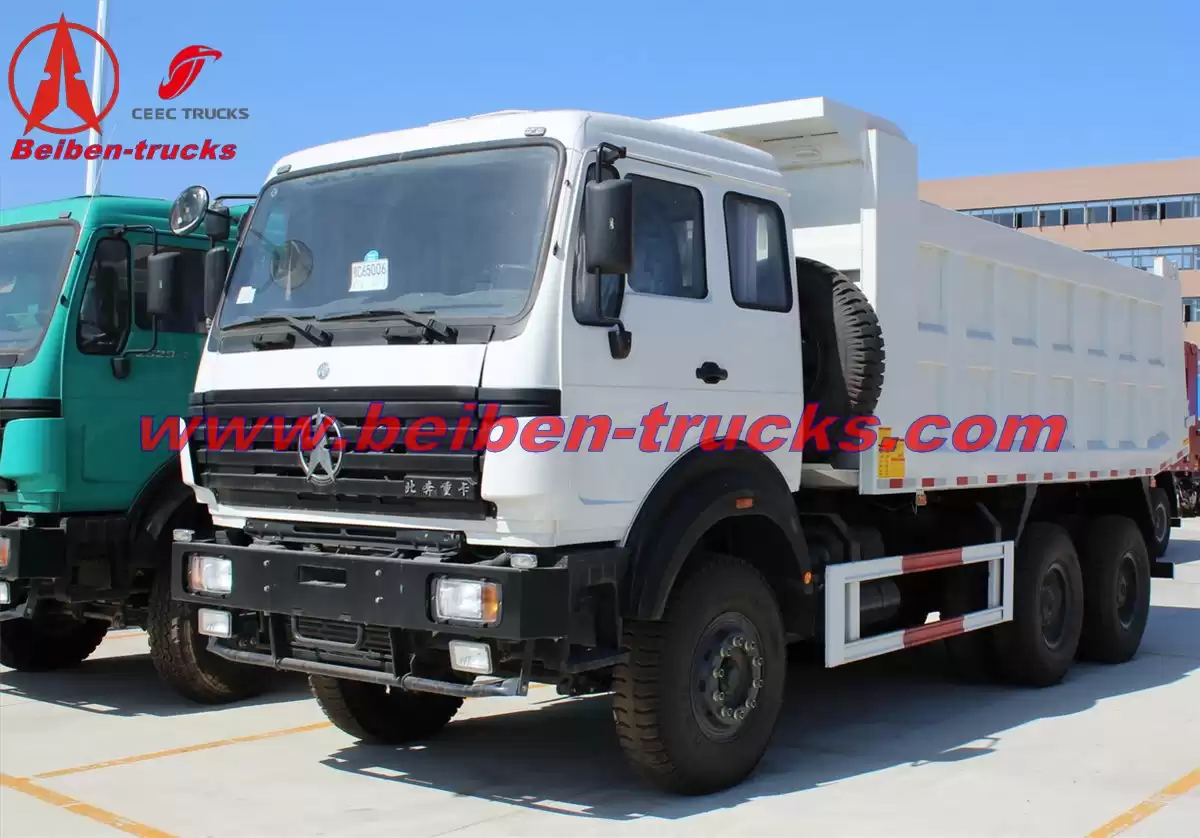

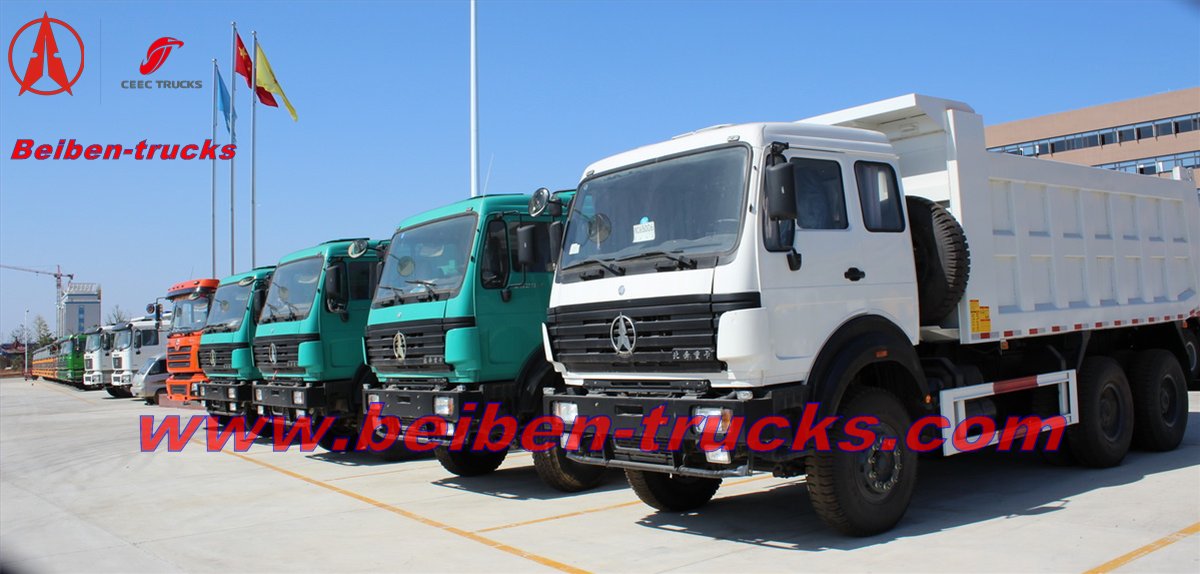

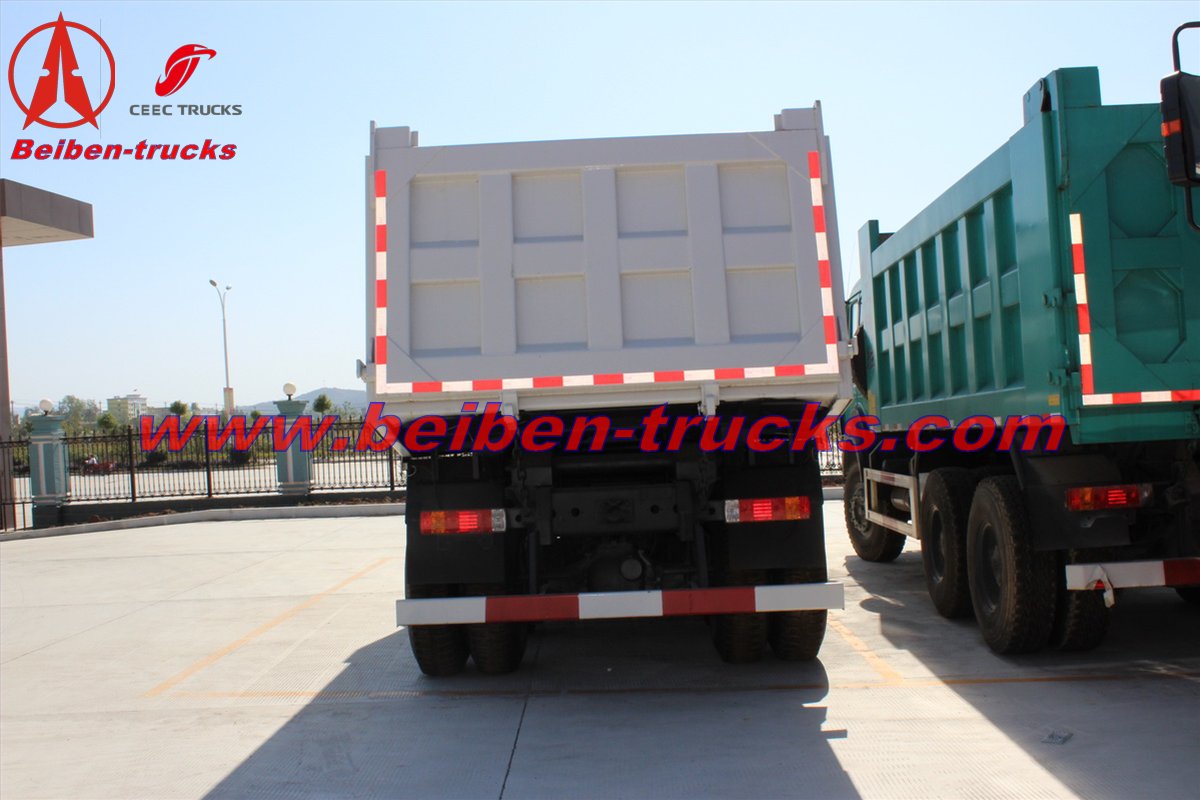

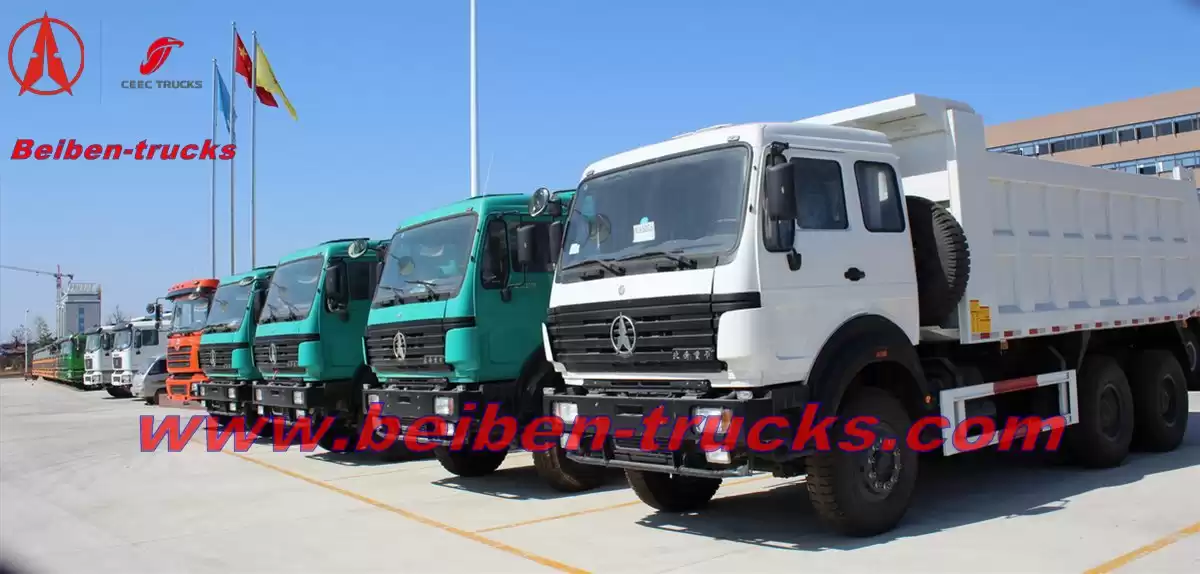

Powerful Beiben 420HP 6x4 dump 10 wheeler trucks

Powerful Beiben 420HP 6x4 dump 10 wheeler trucks, this kind of beiben dump trucks with the stronger beiben 420 hp diesel engine, germany benz technology axle and germany zf8098 steering stem .



Powerful Beiben 420HP 6x4 dump 10 wheeler trucks, this kind of beiben dump trucks with the stronger beiben 420 hp diesel engine, germany benz technology axle and germany zf8098 steering stem .

Powerful Beiben 420HP 6x4 dump 10 wheeler trucks

1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service

Product Description

SPECIFICATIONS FOR beiben DUMP TRUCK

Vehicle Specifications

Model

ND32601B38

Traction 4X2,6X4,8X4

6X4

Power

420HP

Weight Parameter

Complete Vehicle Kerb Mass(kg)

12200

Maximum authorized total mass (kg)

26000

Dimension Parameter

External Dimensions(mm)

Length (mm)

7169/7680

Width(mm)

2495/2500

Height(mm)

3180/3430

wheelbase(mm)

3450+1450

Internal cargo Sizes

Length (mm)

5600/5800

Width (mm)

2300

Height (mm)

1100

Performance Parameter

Maximum Speed(km/h)

75

Maximum Grade ability(%)

35

Turning diameter(m)

16

Recommended Configuration

Engine

Engine Type

WD615.50

Rated power(kW)/Rev(r/min)

213/2200

Horse power

290HP

Torque(N*m)/Rev(r/min)

1500/1400-1600

Transmission

12JS200T

Clutch(mm)

430

Gearbox

12 forward gears/ 2 reverse gears

Axle

Front Axle

BENZ-7.5

Rear Axle

BENZ-13

Axle load-bearing

Front axle

7500


Rear axle

13000

Fuel Tank(L)

400

Track(mm)

1995/1800/1800

Front overhang/rear overhang(mm)

1320/1700

Type

12.00R20

Cabin

Sleeper

none

OTHER

Engine horse power

290hp,330hp,340hp and 360hp,380hp is optional

Tyre

nylon,radial and tubeless is optional

ABS

optional

COLOR

optional
