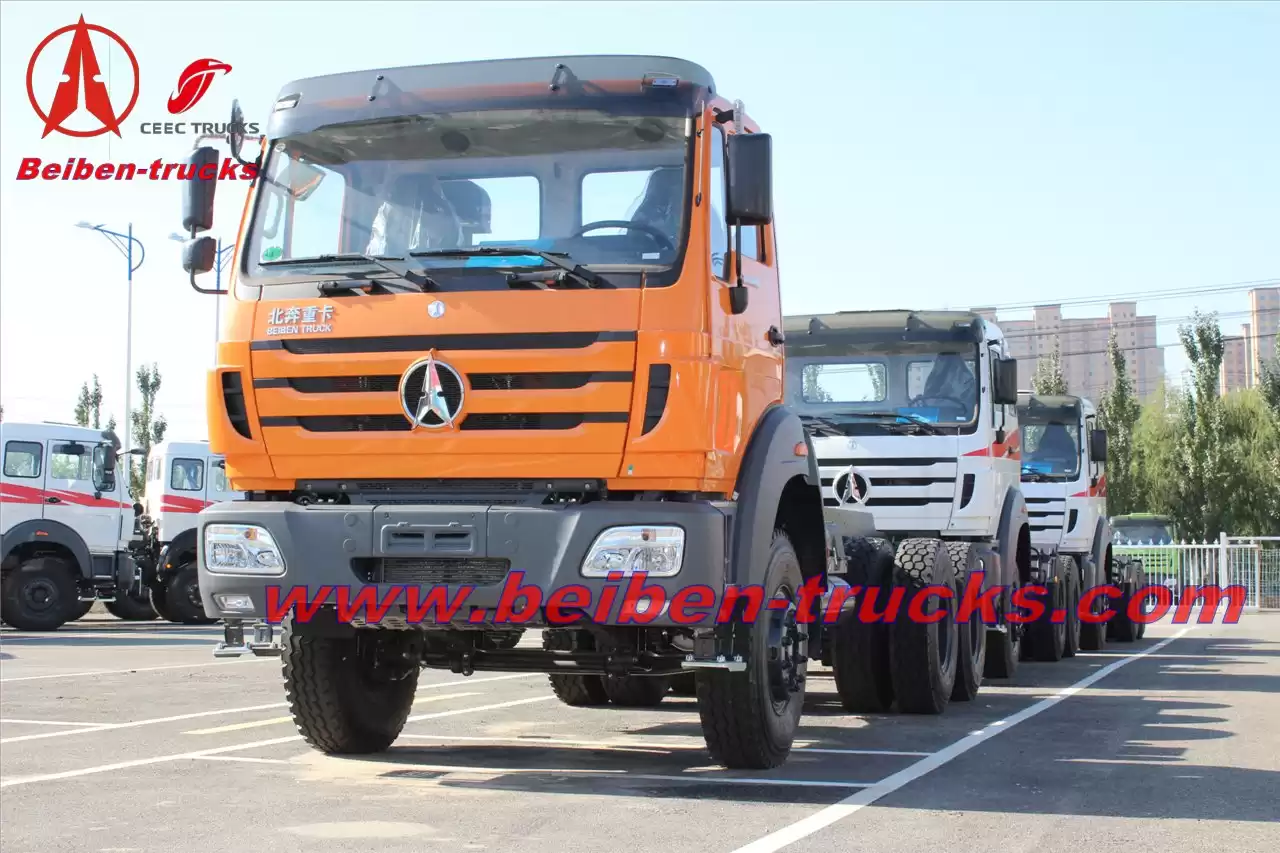

BEIBEN(NORTH BENZ) 330HP 6x4 10WHEELER EURO2 TRACTOR TRUCK ND42601B34J
· Descriptions
This truck is designed for long-haul transportation; Combined with different semitrailer, it can used to load different bulk cargo on the premise of good road condition, one notable advantage of this truck is double rear axle, a fuel-saving accessory of this truck. Tire: Tubeless tire,heat dispersion design. Transmission: 12JS160T, 14 gears, 12 forward gears, 2 backward gears. One luxury sleeper in cab, humanity design, more comfortable.
For more details and information, please read the following items.
SPECIFICATIONS FOR TRACTOR TRUCK
|
Vehicle Specifications
|
Model
|
ND42601B34J
|
Traction 4X2,6X4,8X4
|
6X4
|
Power
|
330HP
|
Weight Parameter
|
Complete Vehicle Kerb Mass(kg)
|
8800
|
Maximum authorized total mass (kg)
|
26000
|
Dimension Parameter
|
External Dimensions(mm)
|
Length (mm)
|
7135
|
Width(mm)
|
2495
|
Height(mm)
|
3100
|
wheelbase(mm)
|
3450+1450
|
Performance Parameter
|
Maximum Speed(km/h)
|
90
|
Maximum Grade ability(%)
|
35
|
Turning diameter(m)
|
20
|
Recommended Configuration
|
Engine
|
Engine Type
|
WD615.44
|
Rated power(kW)/Rev(r/min)
|
243/2200
|
Horse power
|
330HP
|
Torque(N*m)/Rev(r/min)
|
1600/1400-1600
|
Transmission
|
12JS160T
|
gearbox
|
12 forward gears/ 2 reverse gears
|
Clutch(mm)
|
Φ430
|
Axle
|
Front Axle
|
BENZ AXLE
|
Rear Axle
|
BENZ AXLE
|
Axle load-bearing
|
Front axle(kg)
|
7500
|
Front axle(kg)
|
18000
|
Fuel Tank(L)
|
400
|
Track(mm)
|
1995/1800/1800
|
Front overhang/rear overhang(mm)
|
1410/825
|
Tyre
|
12.00R20
|
Cabin
|
Sleeper
|
one
|
Fifth wheeler
|
diameter
|
3.5inch/2inch
|
OTHER
|
Engine horse power
|
290hp,340hp and 360hp,380hp is optional
|
Tyre
|
nylon,radial and tubeless is optional
|
ABS
|
optional
|
COLOR
|
optional
|
