Powerful Block Cutting Machine

LMQ-2200;LMQ-2800;LMQ-3200; LMQ-3500(Can be customized)

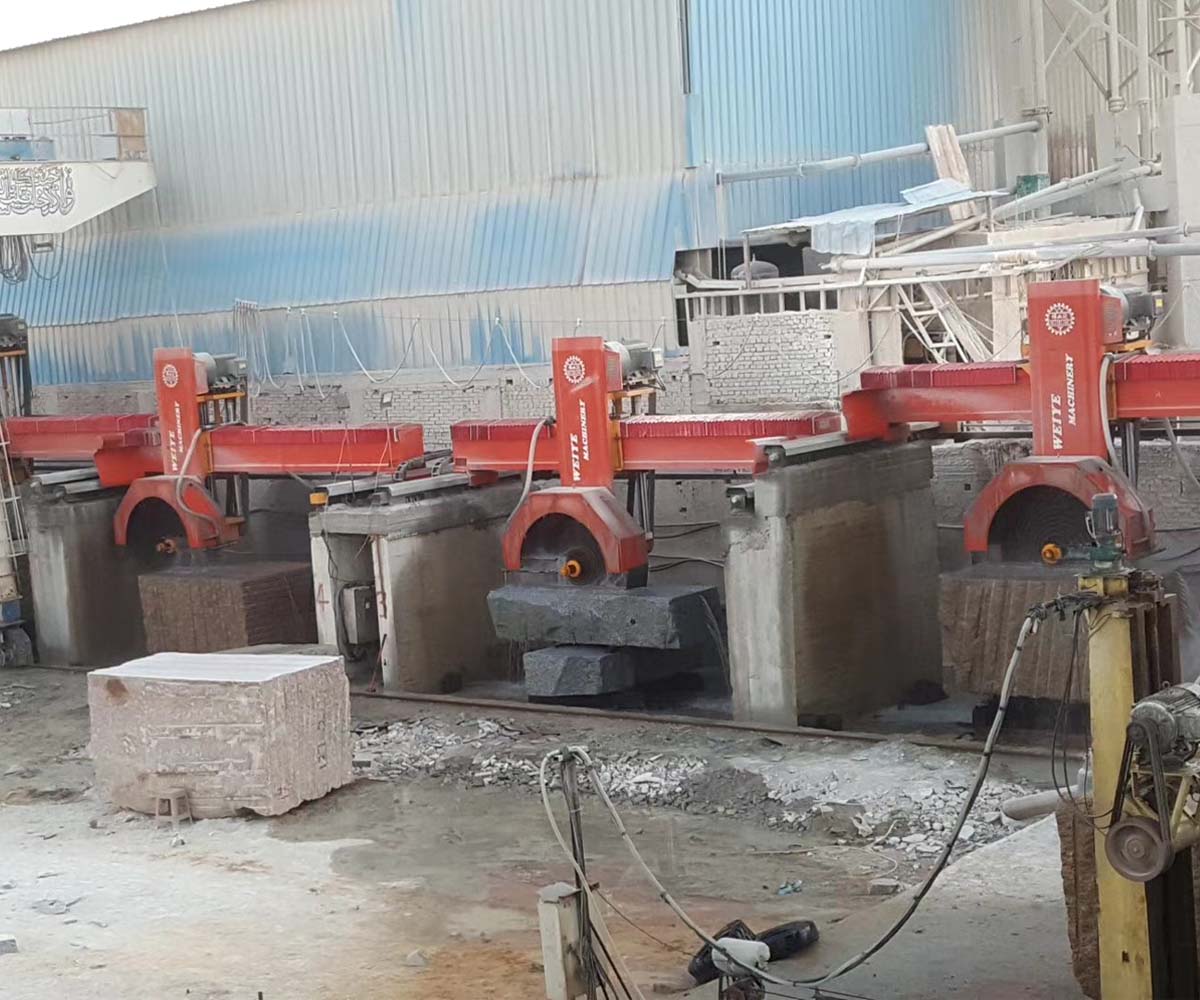

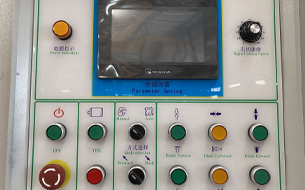

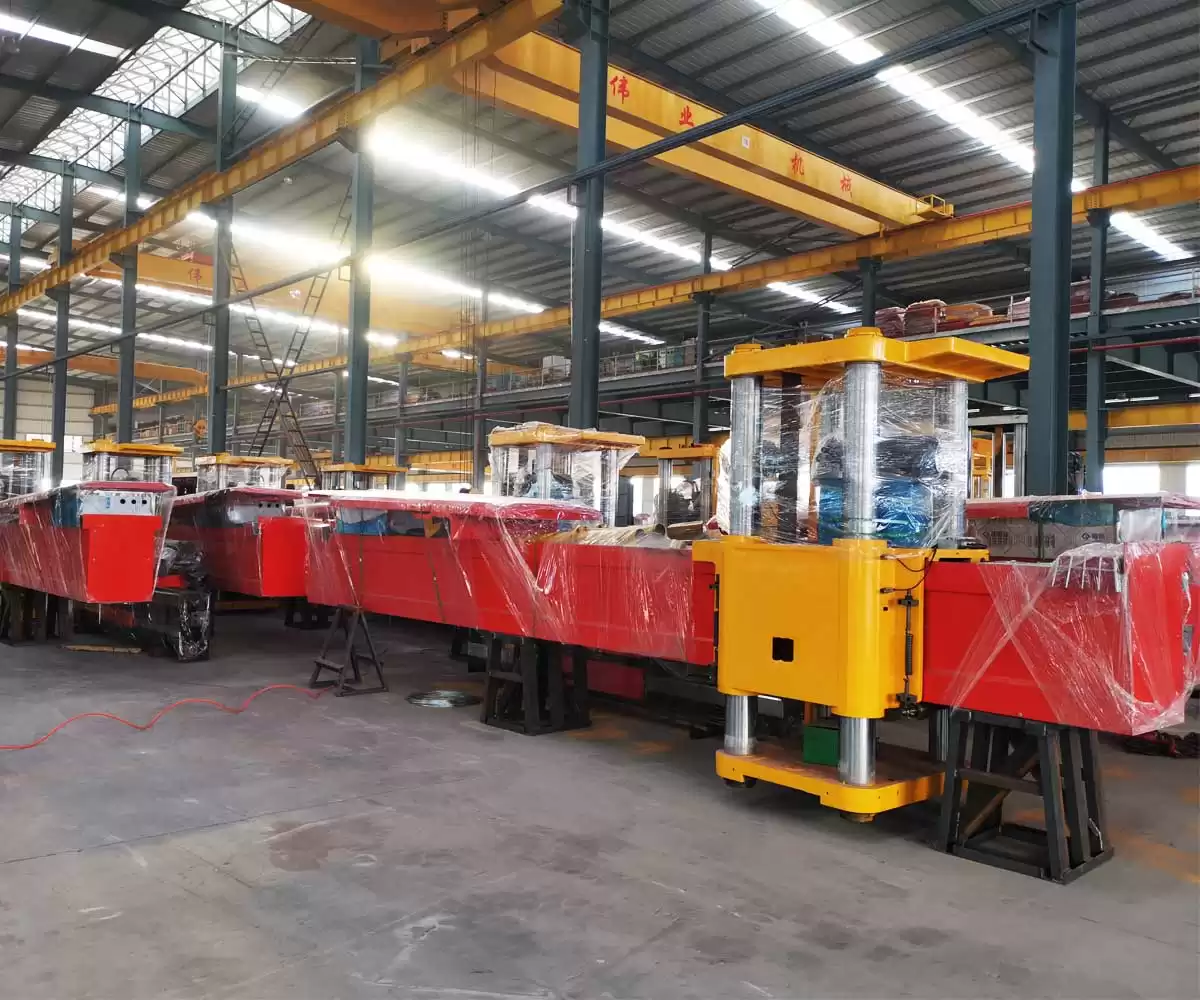

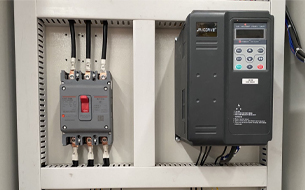

Powerful block cutting machine adopts PLC control, supplemented by ultra-high-precision rotary encoder for counting, the moving of cutter is controlled by inverter, and the speed can be adjusted according to the material of the stone blocks. The high-precision screw nut drive has the advantages of high cutting efficiency, high cutting precision, good flatness of slabs, high stability, and easy operation. It is especially suitable for cutting high-value granite and marble blocks.

Remarks: If required by the production process, the user can add a 360°rotating table

Facebook Twitter Pinterest LinkedIn 分享

Description

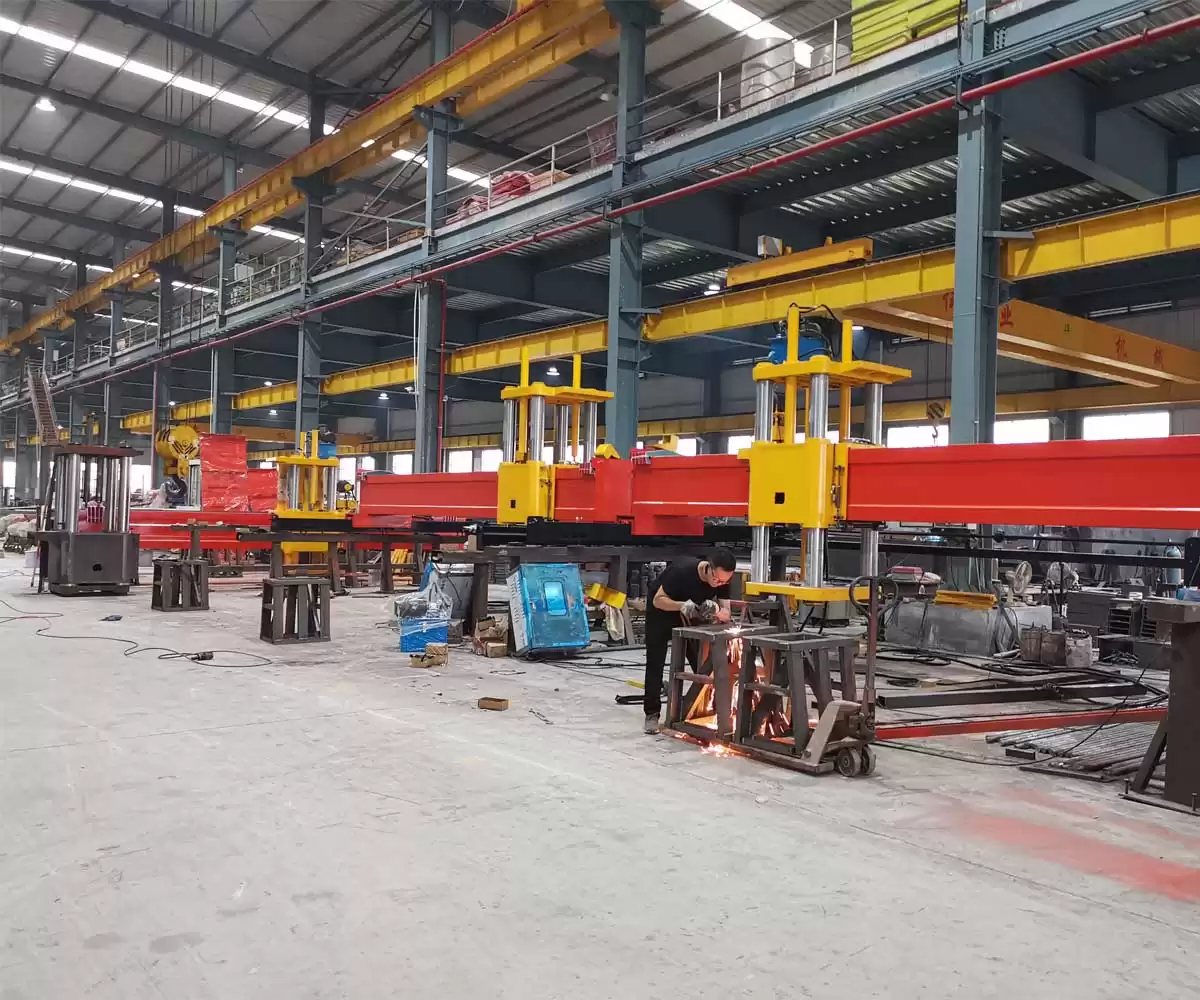

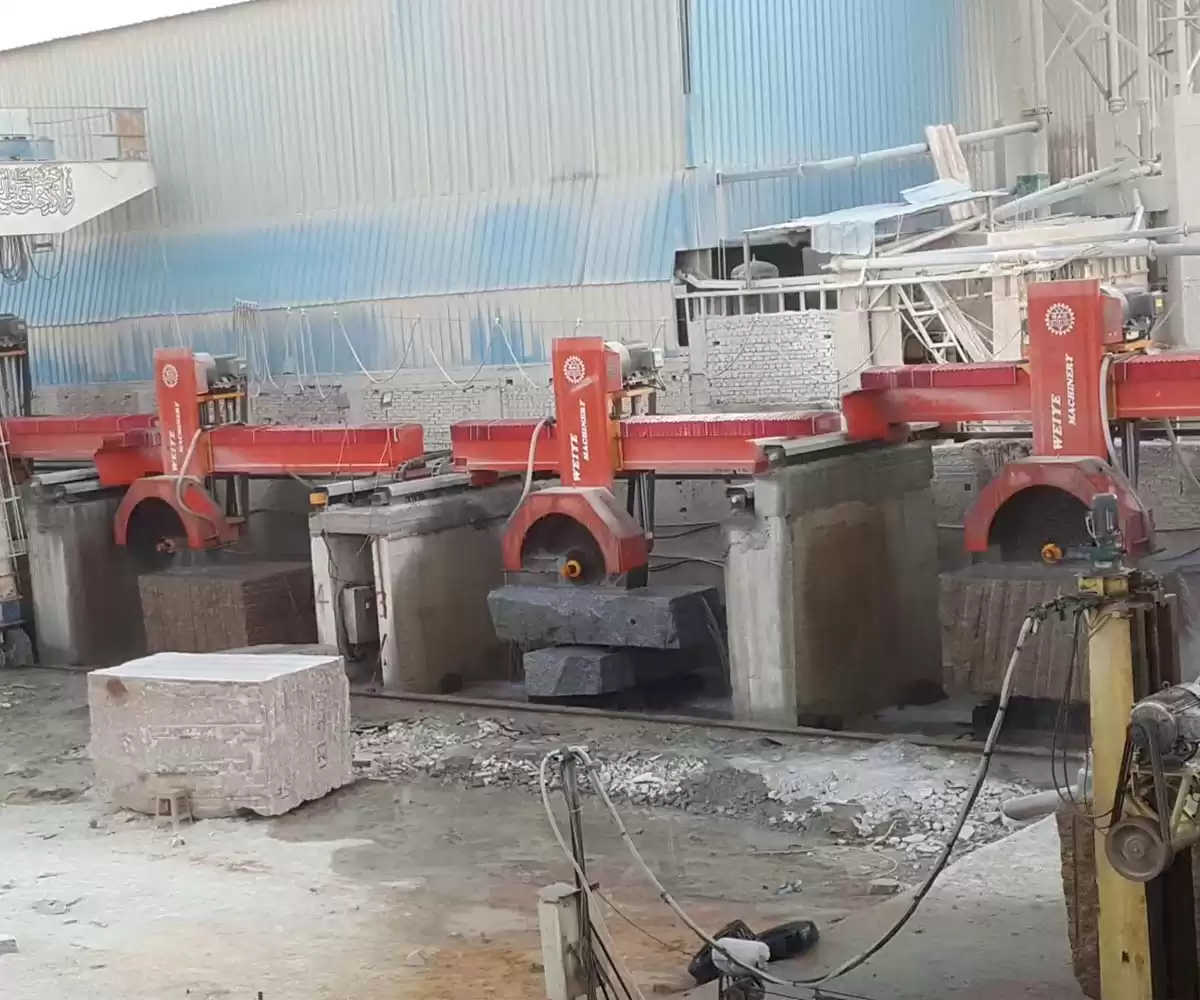

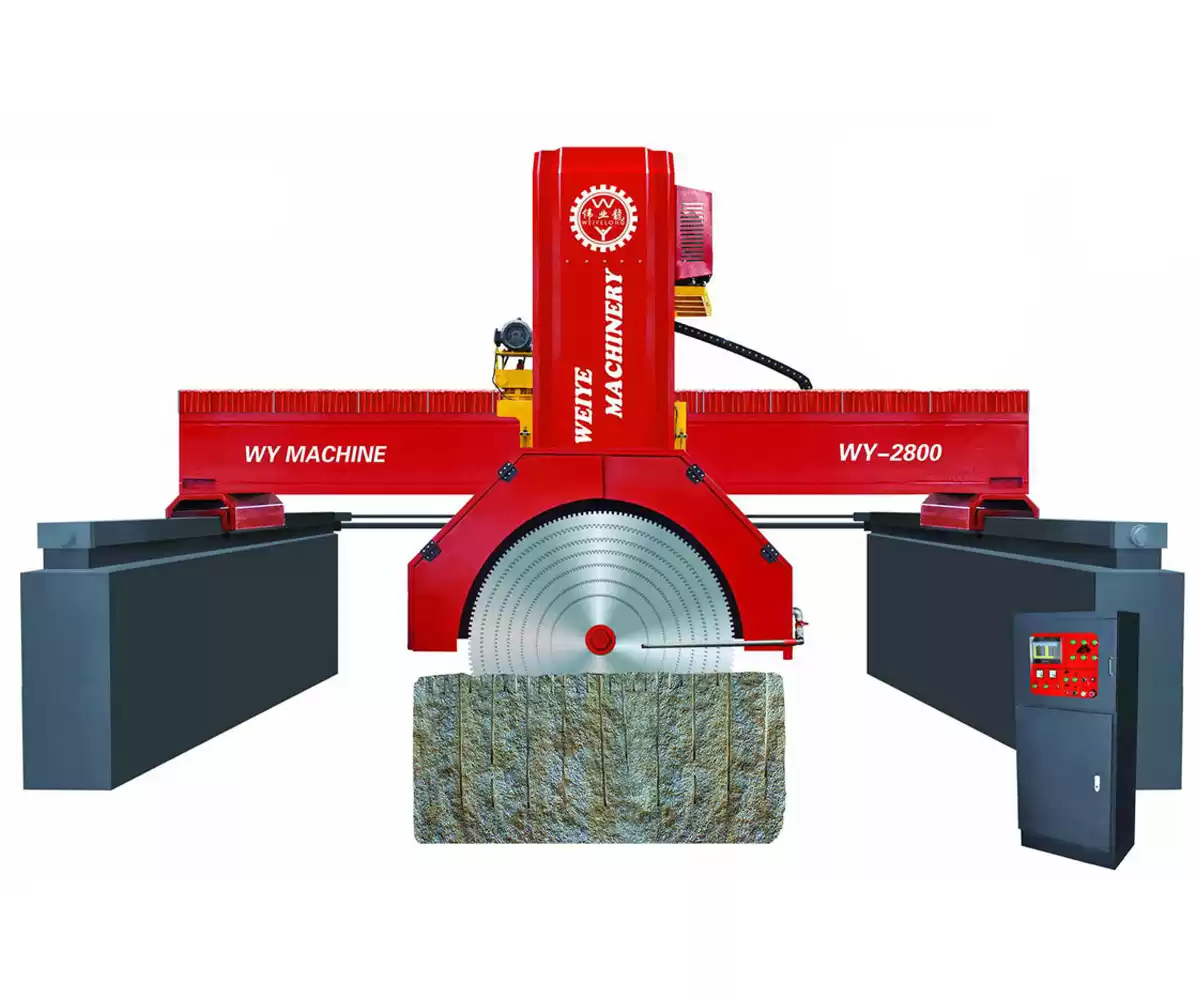

Product Name:Super Fast Block Cutting Machine

Product Specifications:

Descriptions	Unit	LMQ-2200/2500/2800	WY-3500
Beam length	MM	7500/8000/8500	8500
Guide pillar diameter	MM	Φ140(OptionalΦ180)	Φ180
Max.blade diameter	MM	Φ2200/Φ2500/Φ2800	Φ3500
Left-right stroke	MM	3800/3500/3200	3500
Forward-backward stroke	MM	2200	3000
Max.lifting stroke	MM	1150/1350/1350	1700
Water consumption	M³/H	15	15
Power of main motor(optional)	KW	45/55	55
Total power	KW	55/65	69
Weight	KGS	12000-15000	17000
Dimension(L×W×H）	MM	8000×4400×3700	9000×5200×4350

Products features




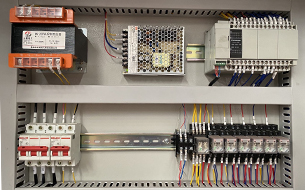

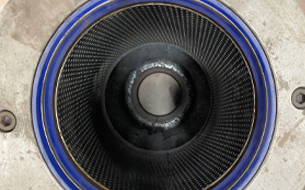

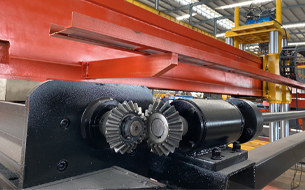

Bridge and Side Beams	Lifting system	Electrical

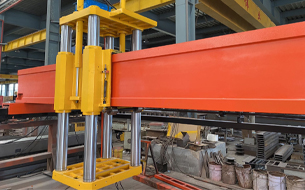

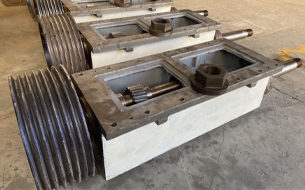

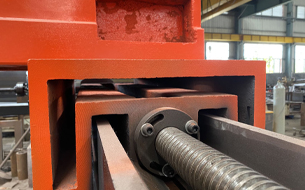

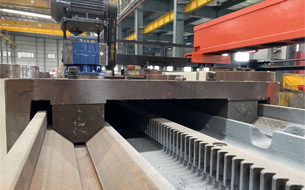

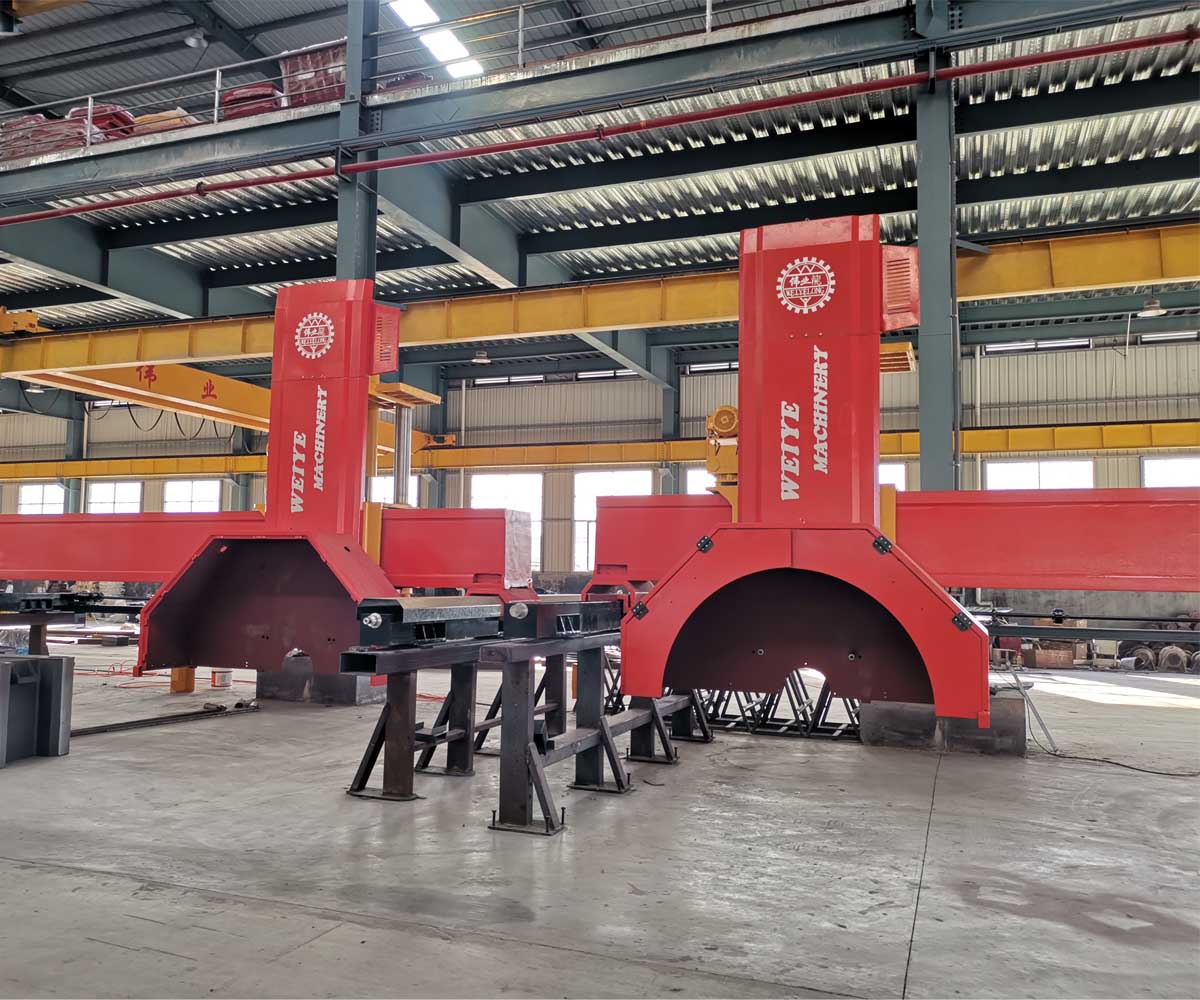

As the load-bearing carrier and tracks basement of the cutting system ，the bridge and side beam should posses good hardness and wear resistance.Therefore, we use pig iron to cast the cross bridge and side beams,can make sure the structure is stable and durable, grinding and corrosion resistance, can perfectly adapt to the complex stone cutting environment. The connecting seat between the cross bridge and the side beam adopts a special "labyrinth" structure design to balance the weight of the cross bridge and reduce the load of the side beams. There are high-precision tooth rows embedded in the cross bridge with V-shaped slide rails to reduce left and right transmission errors and ensure the cutting quality of slabs . The side beams are embedded with high-precision screw rails to reduce the error of the machine's forward and backward movement and achieve precise segmentation.	As the load-bearing carrier and tracks basement of the cutting system ，the bridge and side beam should posses good hardness and wear resistance.Therefore, we use pig iron to cast the cross bridge and side beams,can make sure the structure is stable and durable, grinding and corrosion resistance, can perfectly adapt to the complex stone cutting environment. The connecting seat between the cross bridge and the side beam adopts a special "labyrinth" structure design to balance the weight of the cross bridge and reduce the load of the side beams. There are high-precision tooth rows embedded in the cross bridge with V-shaped slide rails to reduce left and right transmission errors and ensure the cutting quality of slabs . The side beams are embedded with high-precision screw rails to reduce the error of the machine's forward and backward movement and achieve precise segmentation.	The electric control box of the bridge stone cutter is composed of inverters, air switches, relays, PLC industrial computer, and HDMI display screen. The front and back transmission and the left and right sliding of the machine are controlled by the inverters, and the user can easily adjust the transmission speed. The existence of the air switch can ensure that the machine is not damaged in an extreme voltage environment and increase the service life of the machine. The relays are indicators of electronic signals. When the machine fails, the user can easily determine the problem components. All electronic components are centrally controlled by the PLC industry and work in an orderly manner through preset programs. Users can control through the HDMI display of the machine, easily realize human-computer interaction, monitor the machine's operating status, and adjust the machine's cutting speed etc.
