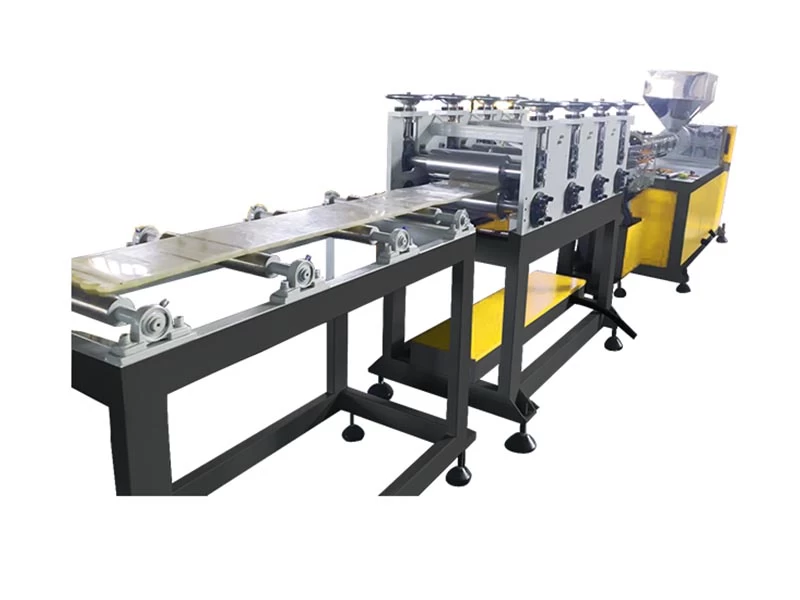

PP PE PVC PS ABS Sheet Extrusion Line Machine

The sheet extrusion machine will manufacture with precision, cost-effectiveness, and minimal production error.

  • WarrantyMore than 5 Years
  • Screw DesignSingle-screw
  • CertificationCE ISO
  • Plastic ProcessedPP PE PVC ABS PS
  • Dimension(L*W*H)25m*1.5m*1.8m
  • Voltage380V 50HZ 3Phase(Customized)
  • Automatic GradeFully Automatic
  • Weight8T
  • ApplicationSheet
Facebook Twitter Pinterest LinkedIn 分享
Sheet Extrusion Machine Parameters
Parameter
 		RLB 90
 		RLB 100
 		RLB 120
Available material
 		PP,HIPS,GPPS,PE
 		PP,HIPS,GPPS,PE
 		PP,HIPS,GPPS,PE
Diameter of screw(mm)
 		90
 		100
 		120
Ratio of screw L/D
 		1:33
 		1:33
 		1:33
Max. sheet width(mm)
 		660
 		1000
 		2000
Sheet thickness(mm)
 		0.15-3.0
 		0.15-3.0
 		0.15-3.0
Capacity(kg/h)
 		150
 		250
 		350
Power of the whole machine(kw)
 		70
 		90
 		90
Dimension(mm)
 		15000x1800x2000
 		20000x2200x2500
 		25000x2400x2800

Sheet Extrusion Machine Function
Available material: PP, HIPS, ABS  PE
Big ratio of length and diameter for the screw of the extrusion machine
Good forming effect & same running speed
Equal sheet thickness & Same running speed
Convenient operation & excellent function
Advanced hydraulic pressure, high speed net changing fittings without stopping the machine
Improve production efficiency
Convenient operation & high precision
Worm wheel to adjust pressing rollers
Clean and bright sheet produced
Bright surface of the pressing rollers
Equal temperature of the roller surface
Select different plastic to produce the compound sheet with different colors according to different products.

Main Fittings
1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider
Push button, Selector Switches, Pilot Lights, Contactor and Thermal
Overload Relay, Korea LG Circuit-breaker;
2.Pneumatic System: Japan SMC;
3.Lubricating System: Taiwan Famous Automatic Oiling System;
