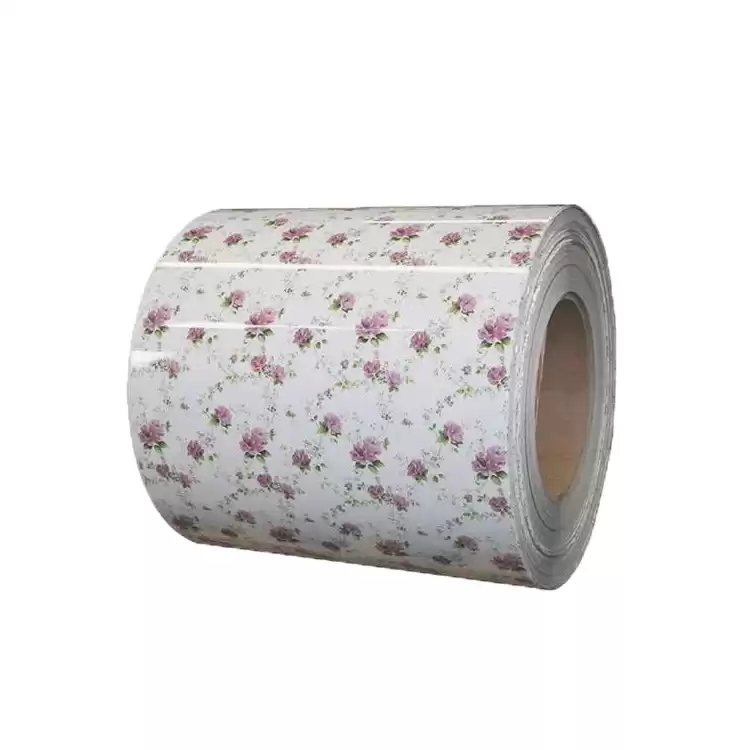

PPGI Sheet Prepainted Galvanized Steel Coil

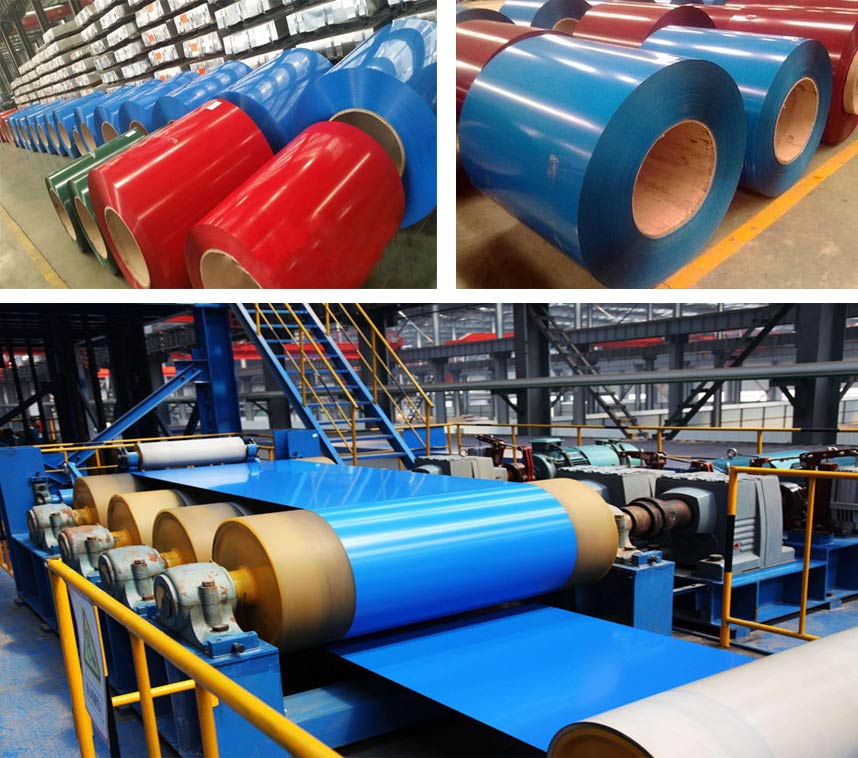

Pre-paint steel is a bare metal substrate or corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. The metal is unwound, cleaned and chemically treated during the process. Depending on product specifications, one or both sides may then be primed and coated, oven cured and rewound.




Pre Painted Galvanized Coils


WanJuan Steel supplies a variety of prepainted steel sheet and coil products to meet customer needs. Our value-added service capabilities include slitting, shearing, stretcher leveling, blanking and metallurgical support.


Product Information

Standard

JIS G3322 CGLCC ASTM A755 CS-B

Surface coating color

RAL colors

Back side coatingcolor

Light grey ,white and so on

Package

export standard package or as request

Type of coating process

Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying

Type of substrate

hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum

Thickness

0.11-2.5mm

Width

600-1250mm

Coil Weight

3-9Tons

Inside Diameter

508/610mm

Zinc Coating

Z50-275g/㎡

AZ30-150g/㎡

Painting Coating Thickness

Top: 8-35 um

Back: 3-25 um

Painting Color Style

2/1,2/2

Length

As,require

Coating introduction

Top paint: PVDF, HDP, SMP, PE, PU

Prime paint: Polyurethane, Epoxy, PE

Back paint: Epoxy, Modified polyester




Advantages to choose us


  • We partner with leading manufacturers to provide cold-rolled, hot-rolled, galvanized, pre-painted, coated and stainless steel for major home appliances.
  • Quality assured products at competitive price;
  • High quality assured & competitive price;
  • Customized service to meet your special requirements;




Our Service

  • Heavy Gauge Slitting
  • Steel Coil Slitting
  • Steel Sheet Cut-to-Length
  • Electro cold Rolled & Hot Dipped Coating
  • Steel Sheet & Plate Painting
  • Finishing Services
