PQ32 Magnetic Core Transformer 6+6 Pins Bobbin

Flyback transformer manufacturer. 12 pins PQ32 vertical coil former. Bobbin Size=34.0mmX32.0mmX30.7mm. Parallel Distance=30.0mm. Pin pitch=5.0mm. PQ series electronic transformers have low leakage inductance and wide operating frequency range.

PQ32 LED Driver Transformer Vertical 12 Pins Bobbin

Filter transformer PQ32 bobbin. Vertical PQ3230 6+6 pin coil former. Bobbin Size=34.0mmX32.0mmX29.0mm. Parallel Distance=30.5mm. Pin pitch=5.08mm. PQ series electronic transformers have low leakage inductance and wide operating frequency range.

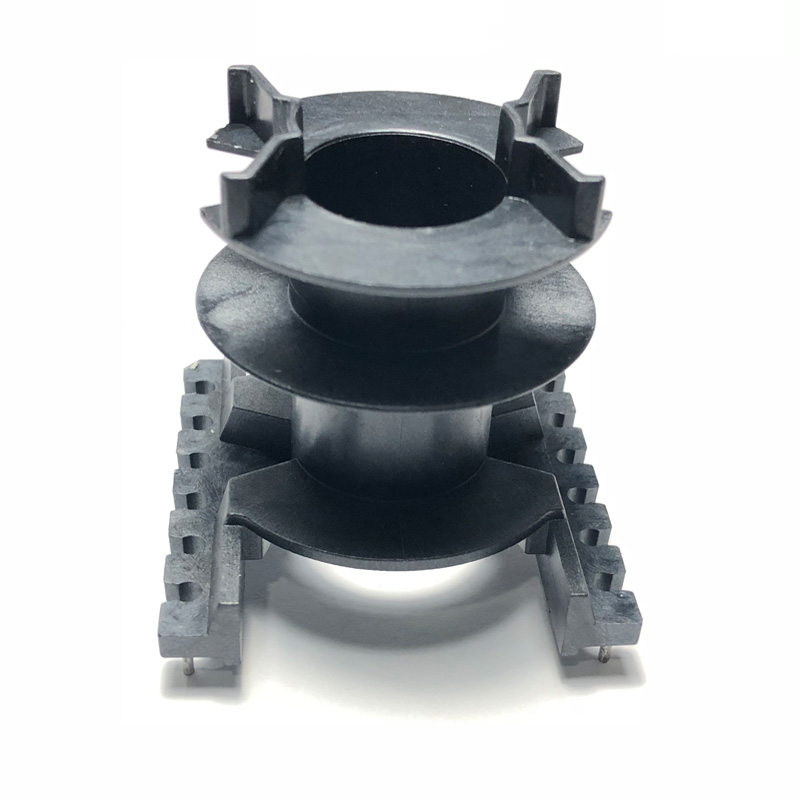

New Energy Transformer PQ50 Double Slots Coil Former

PQ50 flyback transformer bobbin. Vertical shape PR50 double slots frame. 7+7 pins PQ50 coil former. We are experienced IS09001:2015 certificated factory, our main products are various bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.Make bobbin tooling.

PQ65 High Voltage Switching Transformer Bobbin

PQ65 power coil former. Vertical type PQ65 6+6 pins bobbin. Bobbin size=64.0mmX62.0mmX61.95mm. Pin pitch=7.5mm. Row distance=54.0mm. We are experienced IS09001:2015 certificated factory, our main products are various bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.Make bobbin tooling.

SMPS PQ32 Vertical Transformer 2+2 Pin Bobbin

PQ32 power charger transformer. Vertical PQ32 2+2 pin bobbin. Bobbin size=33.0mmX32.7mmX30.6mm. Pin pitch=9.2mm. Row distance=27.2mm. We are experienced IS09001 certificated factory, our main products are transformer bobbins, magnetic cores and coil products. We accept custom design and OEM service.

Vertical PQ26 High Frequency Transformer Frame

PQ26 power transformer bobbin. Vertical 6+6 pin coil former. Bobbin Size=26.37mmX23.76mmX18.45mm. Pin pitch=3.4mm. Parallel Distance=23.03mm. PQ26 high frequency transformer widely used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PQ40 High Frequency Transformer No Pin Bobbin

PQ26 power supply transformer. No pin PQ40 bobbin. Bobbin Size=36.0mmX31.1mmX26.4mm. PQ40 high frequency transformer widely used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PQ35 Ferrite Core Power Transformer Bobbin

PCB mount transformer PQ35/35 bobbin. No pin transformer PQ35 bobbin. Bobbin Size=31.5mmX31.0mmX30.9mm. PQ35 high frequency transformer widely used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

6+6 Pins PQ50/50 Power Transformer Frame

Flyback transformer PQ50/50 bobbin. Bobbin size=51.4mmX51.00mmX53.3mm. Pin pitch=7.6mm, Parallel distance=45.8mm. 6+6 pins PQ50/50 vertical bobbin. Single slot PQ50 coil former. We are experienced IS09001 certificated factory, our main products are bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.

PQ35/35 Switching Power Transformer Vertical Bobbin

PQ35 plane transformer ferrite bobbin. 2+3 pin vertical PQ35 transformer. Bobbin Size=34.0mmX23.5mmX38.7mm. Row distance=27.5mm. Pin pitch=5.0mm. PQ35 high frequency transformer used for PCB circuits, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PCB MountingTransformer PQ35 Ferrite Bobbin

High frequency PQ35 bobbin. PQ3535 6pins vertical transformer. Bobbin Size=31.4mmX23.2mmX33.9mm. Row distance=27.5mm. Pin pitch=7.5mm. Phenolic PQ35 bobbin for high frequency transformer, used in PCB circuits, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PQ26/25 High Frequency Flyback Transformer Bobbin

Ferrite transformer PQ26 bobbin. No pin PQ2625 transformer frame. Bobbin Size=21.2mmX21.2mmX24.4mm. Phenolic PQ26 coil bobbin for high frequency transformer, used in PCB circuits, printers, filters, computers, LED lighting, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PQ40 Stwitching Power Transformer Bobbin

PQ40/40 ferrite bobbin. No pin transformer PQ40 frame. Bobbin Size=36.0mmX26.2mmX26.4mm. Phenolic PQ40 coil bobbin for high frequency transformer, used in PCB circuits, printers, filters, computers, LED lighting, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

Switched Mode Transformer PQ32 Bobbin

PQ32/32 ferrite transformer bobbin. No pin PQ32 transformer bobin. Bobbin Size=26.5mmX26.5mmX26.0mm. Phenolic PQ32 coil bobbin for high frequency transformer, used in PCB circuits, printers, filters, computers, LED lighting, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
