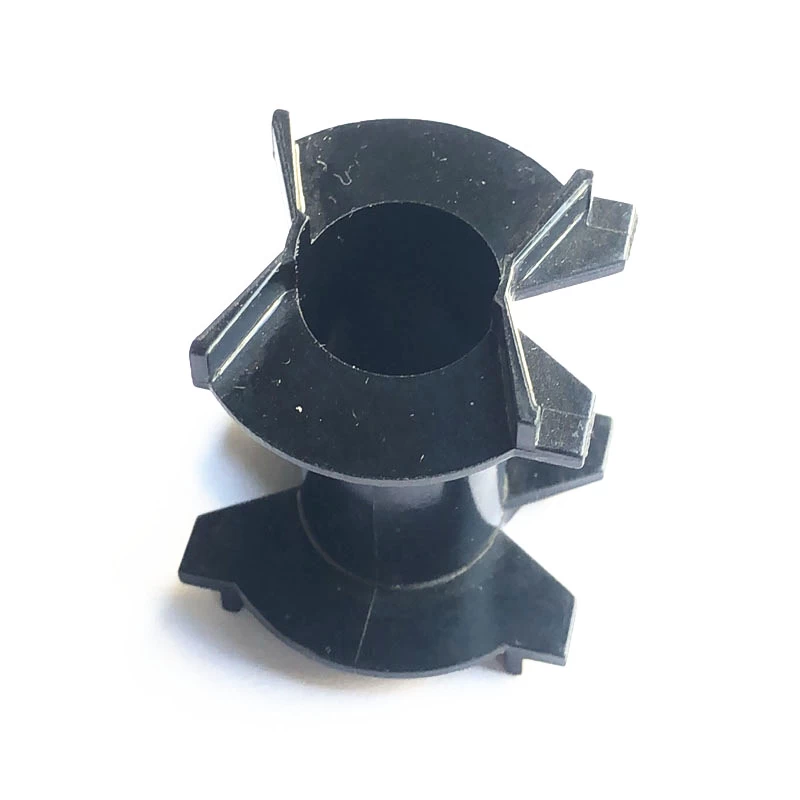

PQ35/35 Switching Power Transformer Vertical Bobbin

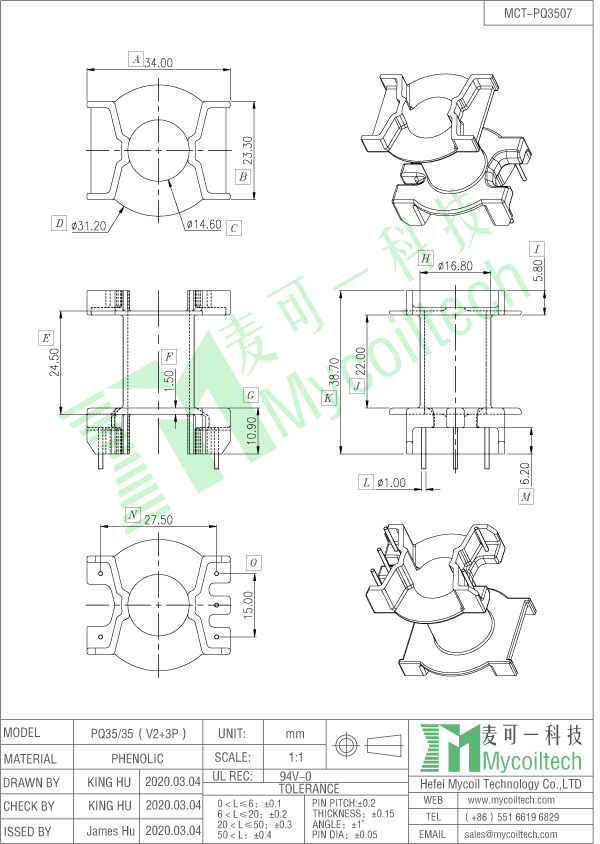

PQ35 plane transformer ferrite bobbin. 2+3 pin vertical PQ35 transformer. Bobbin Size=34.0mmX23.5mmX38.7mm. Row distance=27.5mm. Pin pitch=5.0mm. PQ35 high frequency transformer used for PCB circuits, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
