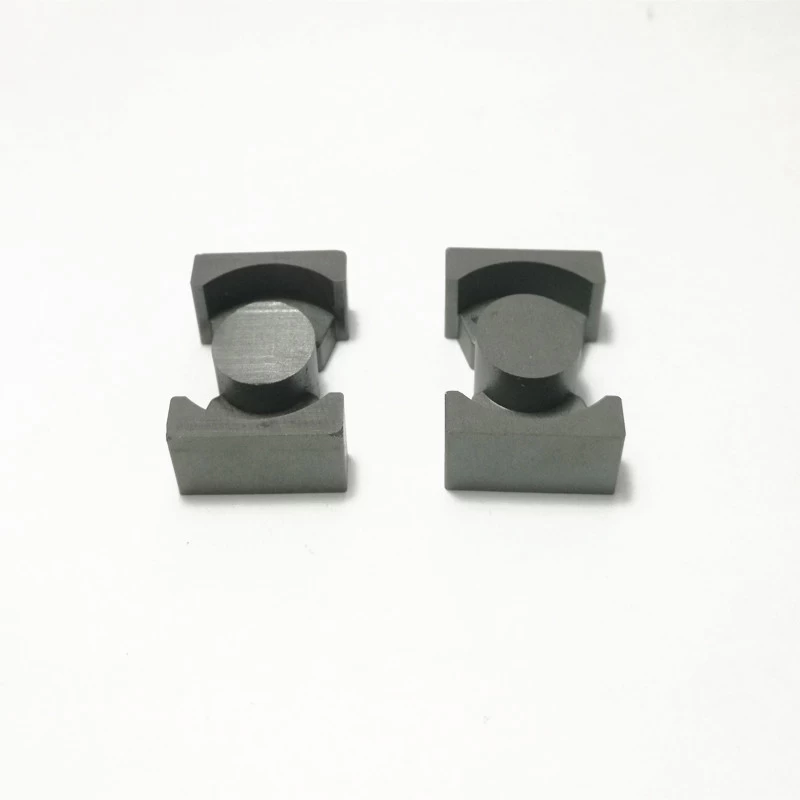

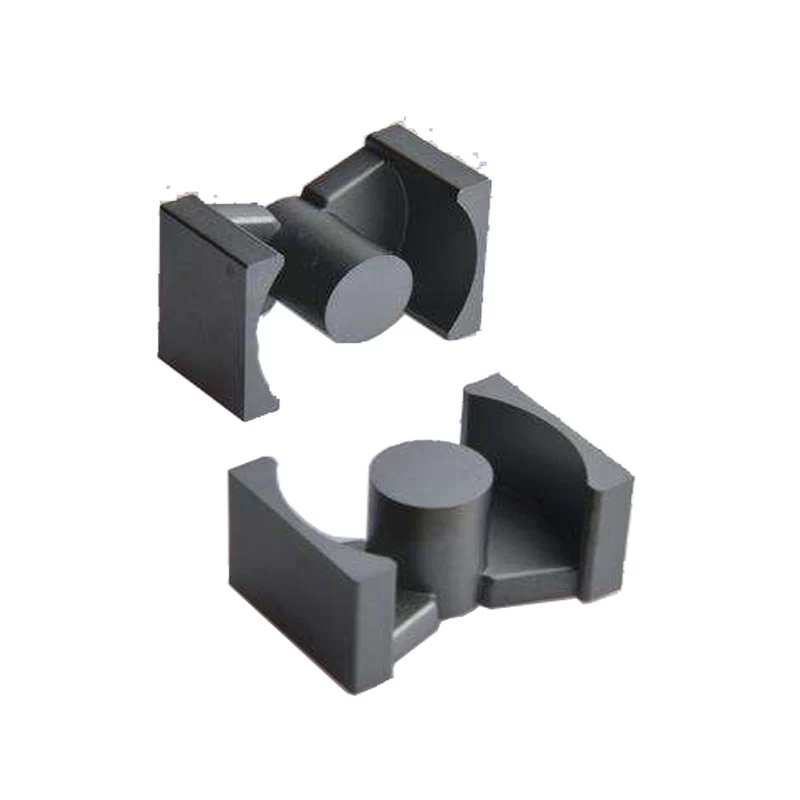

PQ4035 Ferrite Cores, High Frequency Transformer and Big Power Range Cores

Large power range(50W-1000W)PQ ferrite core,can effectively reduce the installation volume,with multiple pins,easy wiring around.Low assembly cost,easy to meet safety requirements.

Facebook Twitter Pinterest LinkedIn 分享

Quick Details

Part Number: PQ Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core

OEM: Available

Features: Low loss,low temperature rise,good anti-interference performance

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: PQ4035 Ferrite Cores, High Frequency Transformer and Big Power Range Cores

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: High-frequency switching power transformers. Rectifier transformer. Drive Transformers. Power supplies, electrical equipment, medical equipments.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

PQ Series Ferrite Power Cores with High Frequency and good anti-jamming performance

PQ series ferrite power cores for transformer and inductors

TYPE

Dimension:mm

Weight:g

A1

A2

B

C

D

E(REF)

H

PQ2016

20.5±0.4

14.0±0.4

18.0±0.4

8.8±0.2

16.2±0.2

12.0

10.3±0.3

13

PQ2020

20.5±0.4

14.0±0.4

18.0±0.4

8.8±0.2

20.2±0.2

12.0

14.3±0.3

15

PQ2620

26.5±0.45

19.0±0.45

22.0±0.45

12.0±0.2

20.15±0.25

15.5

11.5±0.3

31

PQ2625

26.5±0.45

19.0±0.45

22.0±0.45

12.0±0.2

24.7±0.25

15.5

16.1±0.3

36

PQ3220

32.0±0.45

22.0±0.5

27.5±0.5

13.45±0.25

20.55±0.25

19.0

11.5±0.3

42

PQ3230

32.0±0.5

22.0±0.5

27.5±0.5

13.45±0.25

30.35±0.25

19.0

25.0±0.3

55

PQ3535

35.1±0.6

26.0±0.5

32.0±.5

14.35±0.25

34.75±0.25

23.5

29.5±0.3

73

PQ4040

40.5±0.9

28.0±0.8

37.0±0.6

14.9±0.3

39.75±0.25

28.0

29.5±0.3

95

PQ5050

50.0±0.7

32.0±0.6

44.0±0.7

20.0±0.35

49.95±0.25

31.5

36.1±0.3

195


TYPE

Effective parameter

AL（nH/N2）（AL±25%）

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

PQ2016

0.605

62

37.1

2310

3880

PQ2020

0.738

62

45.4

2790

3310

PQ2620

0.391

119

46.3

5490

6170

PQ2625

0.472

118

55.5

6530

5250

PQ3220

0.323

170

55.5

9420

7310

PQ3230

0.464

161

74.6

11970

5140

PQ3535

0.448

196

87.9

17260

4860

PQ4040

0.508

201

101.9

20450

4300

PQ5050

0.346

328

113

37238

6720
