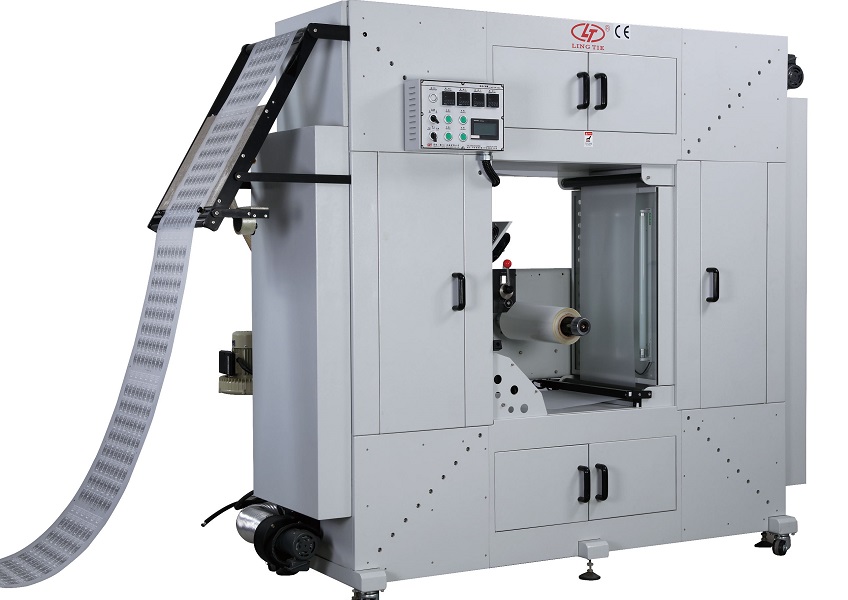

Product Name: Pre-shrink Curing Oven Series
The Parameter for one of Part---IR Hot Dryer
-
Inner loops: 60 meters
-
Temperature range: 37-140 Celsius (customized Temperature would reach to 200 )
-
Insulation Layer Thickness: 50 mm
-
Power Supply: 220 V, 22KW
-
Machine Size : 2830 * 1060 * 2150 mm
What kinds of main parts in the curing dryer oven？
-
Suction Motor: 6 sets
-
Frequency converter: 1 set
-
Temperature Controller: 4 sets ( 4 sides heating and control temperature independently )
-
Cooling Fan: 6 fans
How many Option functions the pre-shrink hot air dryer machine have?
-

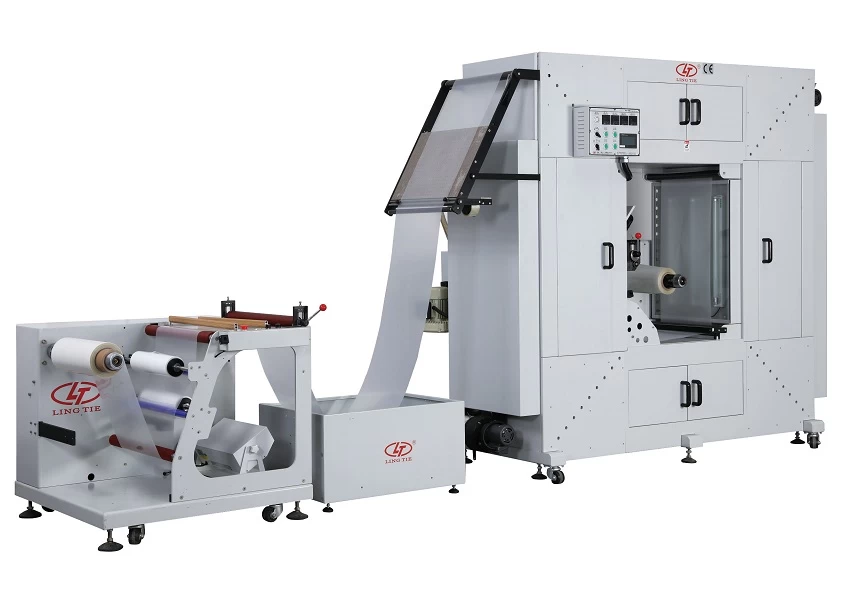

Equipped with Laminating Device
-
Powered UV dryer Device
-
200 Celsius tunnel oven
-
Four sides heating and thermostats controller
-
Static electricity eliminating device
-
Web guiding device/correction device

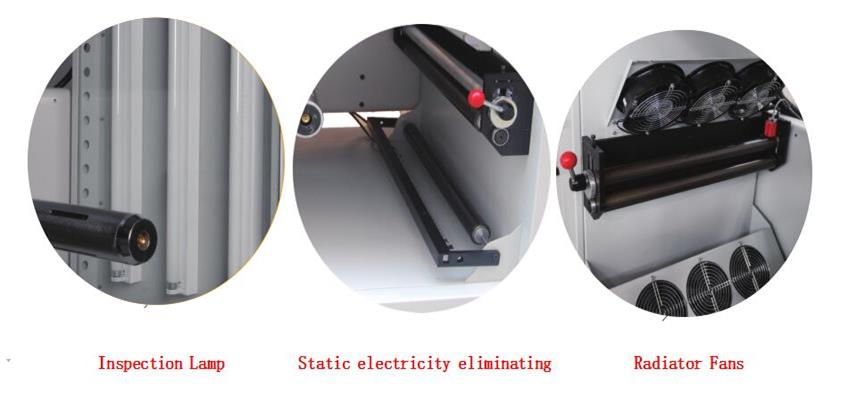

The details for the Option Functions
Features of the Pre-shrink Curing Oven Machine
-
Independent four digital display thermostats control the temperature of 4 sides respectively, making temperature control more convenient and accurate.
-
The imported photoelectric switch can sense any printed material and automatically track the speed of the press for running.
-
Adopt variable frequency converter, Shilin industrial control, brand motor, brand speed reducer, more accurate control, guarantee stable operation of the machine.
-
The exclusive suction tension, ventilation size, heating power (current) can be any stepless adjustment, easy to control the physical tension, to protect the printed material does not stretch and thermal deformation.
-
Exclusive installation of the insulation layer, so that a more balanced temperature. Reduce surface temperature, avoid operator burns, save power, save energy, and protect the environment.
