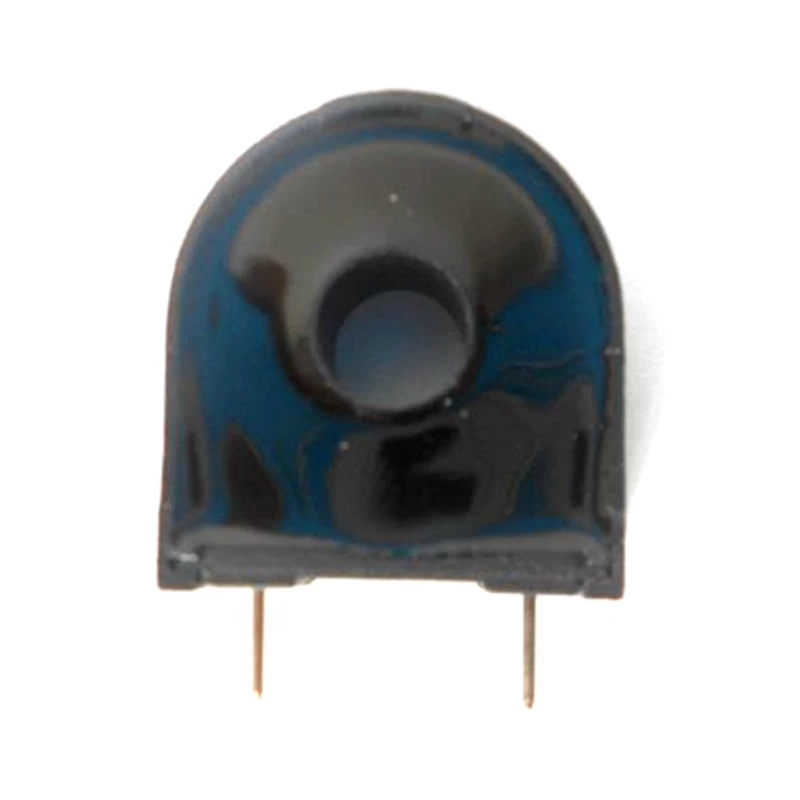

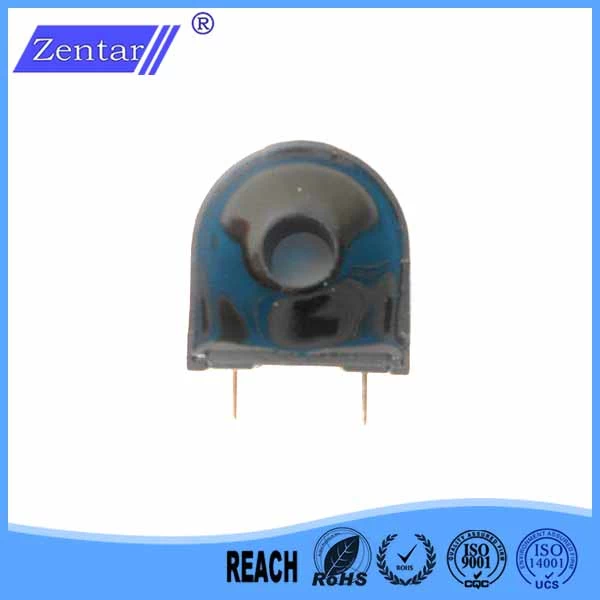

Precision class 1 current transformer for metering
|
Rated Primary Current
|
20A
|
|
Max Primary Current
|
60A
|
|
Rated Secondary Current
|
10mA
|
|
Accuracy
|
0.1~2.0
|
|
Electrical Strength
|
3000VAC 1mA60s
|
|
Load Resistance
|
50Ω
|
|
Rated Frequency
|
50/60HZ
|
Electrical Characteristics
|
Model No.
|
Electrical Characteristics
|

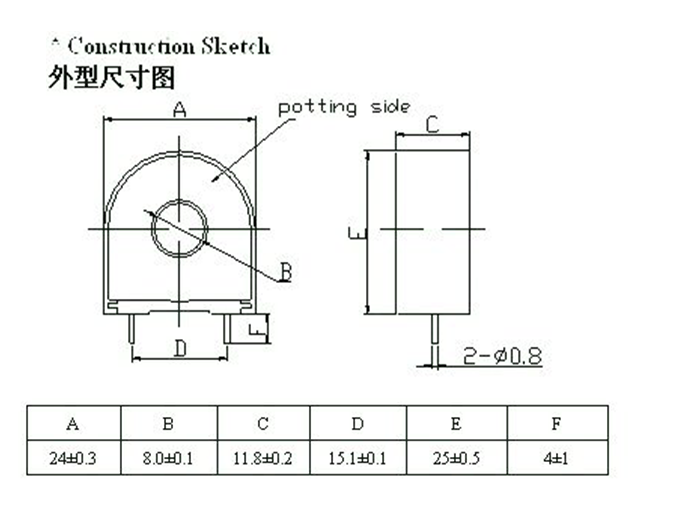

Dimension(Unit: mm/inch)
|
Standard PN
|
|
Current Ratio
|
RL(Ω)
|
Accuracy Class
|
A
|
B
|
C
|
D
|
E
|
F
|
Pin
|
|
506
|
10A/5mA
（max10A）
|
10
|
0.5
1
|
5
|
17
|
9.5
|
20
|
12.5
|
11.5
|
0.8
|
PCT506N200
|
|
0.197
|
0.669
|
0.374
|
0.787
|
0.492
|
0.453
|
0.031
|
|
516
|
5A/5mA
（max10A）
|
10
|
0.5
1
|
7
|
17
|
7
|
19
|
2.5
|
13.8
|
0.8
|
PCT516N100
|
|
0.276
|
0.669
|
0.276
|
0.748
|
0.098
|
0.543
|
0.031
|
|
701
|
10A/5mA
（max60A）
|
10
|
0.2
0.5
|
23.5
|
7
|
11
|
24.75
|
15.2
|
19
|
1.0
|
PCT701N200
|
|
0.925
|
0.276
|
0.433
|
0.974
|
0.598
|
0.748
|
0.039
|
|
702
|
20A/10mA
（max80A）
|
10
|
0.2
0.5
|
26
|
9
|
17
|
28
|
15
|
19
|
1.0
|
PCT702N200
|
|
1.024
|
0.354
|
0.669
|
1.102
|
0.591
|
0.748
|
0.039
|
|
703
|
20A/10mA
（max150A）
|
20
|
0.1
0.2
|
37.2
|
13
|
14
|
38.6
|
25
|
32.5
|
1.0
|
PCT703N200
|
|
1.465
|
0.512
|
0.551
|
1.520
|
0.984
|
1.280
|
0.039
|
|
704
|
20A/10mA
（max60A）
|
20
|
0.1
0.2
|
8
|
24.2
|
11.8
|
25.4
|
15.2
|
-
|
0.8
|
PCT701N200
|
|
0.315
|
0.953
|
0.465
|
1.000
|
0.598
|
-
|
0.031
|
|
710
|
5A/2.5mA
（max25A）
|
10
|
0.1
0.2
|
24
|
8
|
11.8
|
25
|
15.25
|
10
|
0.8
|
PCT710N200
|
|
0.945
|
0.315
|
0.465
|
0.984
|
0.600
|
0.394
|
0.031
|
|
713
|
20A/10mA
（max180A）
|
10
|
0.5%
1%
|
9.5
|
24.8
|
7.5
|
26.8
|
15.25
|
12.4
|
□0.64
|
PCT713S200
|
|
0.374
|
0.976
|
0.295
|
1.055
|
0.600
|
0.488
|
0.025
|

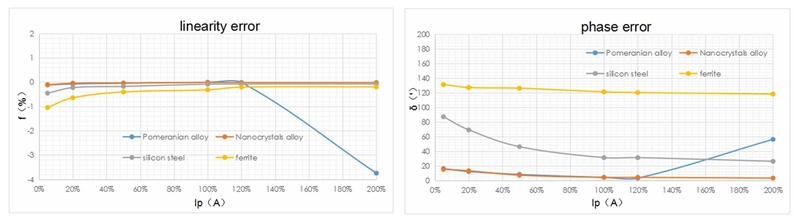

Characteristics Curve
Testing
Packing and Shipping
Xiamen ZTC Technology specialize in magnetic ring cores and current transformers for electrical safety and power metering. We are one of leading supplier of products and technologies for protection protection against electric shock and electrical faults.
Also, our split core current transformer and rogowski coils used for energy efficiency monitoring and automation applications. These include sub-metering cost allocation, dynamic energy consumption and peak load analysis.
