Hefei Mycoil Technology Co.,LTD is ISO9001:2008 certification factory, we skilled at designing and producing various electronic transformers, coil inductors, EMI filters, current transformers, general power relays, and other electronic components. We have a research team consists of five engineers, we can design the precision current transformers to meet customer’s requirements.
If you have some current transformer projects, you can send your current transformer specification to us, our engineers can reply you fast. We also can send free current transformer samples for your testing, if our samples approved your testing, then we can began from small order to big order, from this process, you can get to know our company.
Quick Details
|
Part No: MCT03A055ACT
|
|
Brand name: MCT
|
|
Operating temperature：-40°C~50°C
|
|
Custom made: Available
|
|
Storage temperature:-40°C~70°C
|
|
Logo: Can be customized
|
|
Relative humidity:10~95%
|
|
Packing: Carton, can custom
|
|
Rated input current:5A
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information

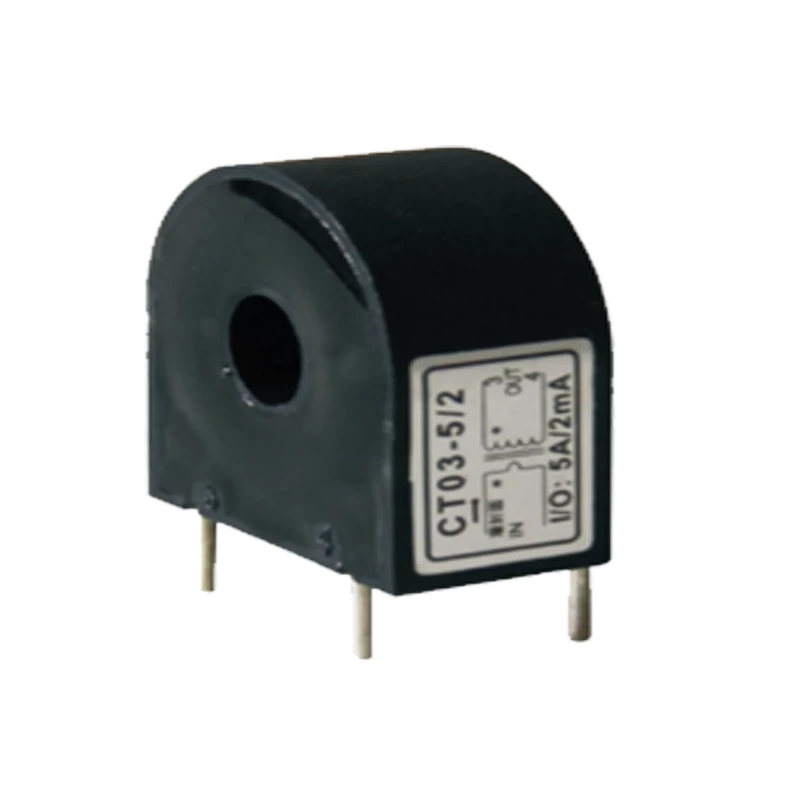

Product Name: Precision Current Transformer with Vertical Transformer Bobbin
ProductsRange: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|

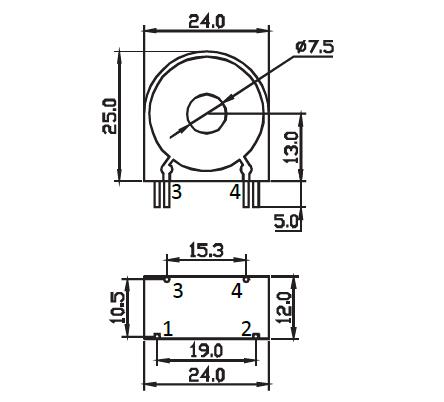

Threading aperture,
Unit:mm
|
|
MCT03A05A
|
5A/2mA
|
0.5
|
0~20A
|
≤10’
|
≤200Ω
|
3000V
|
Φ7.40
|
|
MCT03A05B
|
5A/2.5mA
|
0.5
|
0~20A
|
≤10’
|
≤200Ω
|
3000V
|
Φ7.40
|
|
MCT03A05C
|
5A/5mA
|
0.5
|
0~10A
|
≤15’
|
≤50Ω
|
3000V
|
Φ7.40
|
|
MCT03A05D
|
20A/10mA
|
0.5
|
0~24A
|
≤15’
|
≤200Ω
|
3000V
|
Φ7.40
|
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
